HBM QuantumX MX840A - Multiple Ethernet Connection Without Synchronization

51Connection
HBMQuantumX
5.2.2 Multiple Ethernet connection without
synchronization
TCP/IP, 100 Mbps
Patch cable
Patch cable
10 V ...
30 V DC
10 V ...
30 V DC
10 V ...
30 V DC

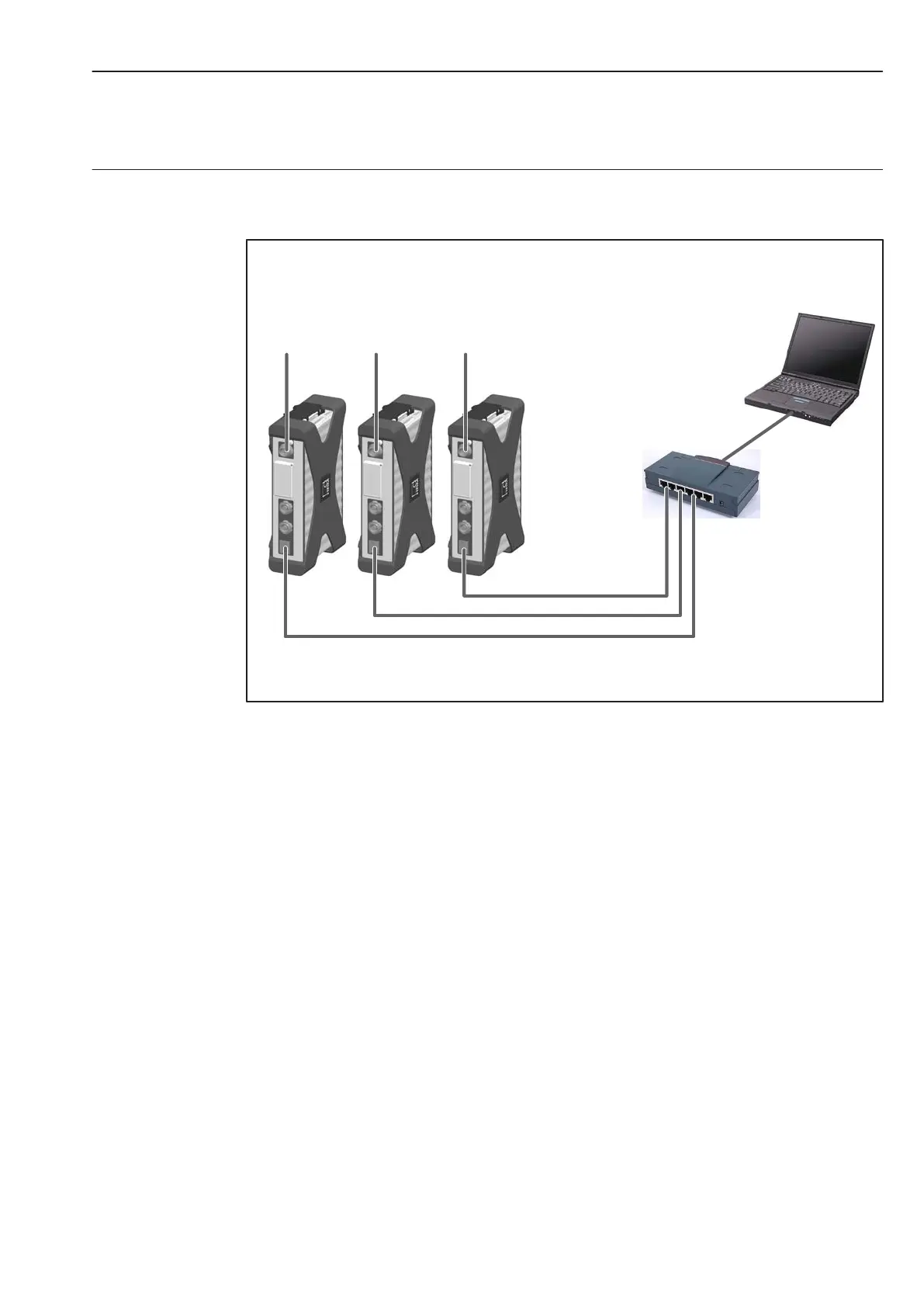

Fig.5.3: Multiple connection via Ethernet
Modules can be connected to the PC with standard Ethernet switches. We recommend patch
cables.
With the star structure displayed here, measurement data from other modules is not lost in
case of a cable break in the ethernet cable.
