4.5.5 Backplane with FireWire connection
The BPX backplane can be directly connected to a PC or data recorder via FireWire.
The second FireWire socket on the backplane allows integration of distributed modules into
the system.
B
BPX001
or
BPX001−S31
FireWire

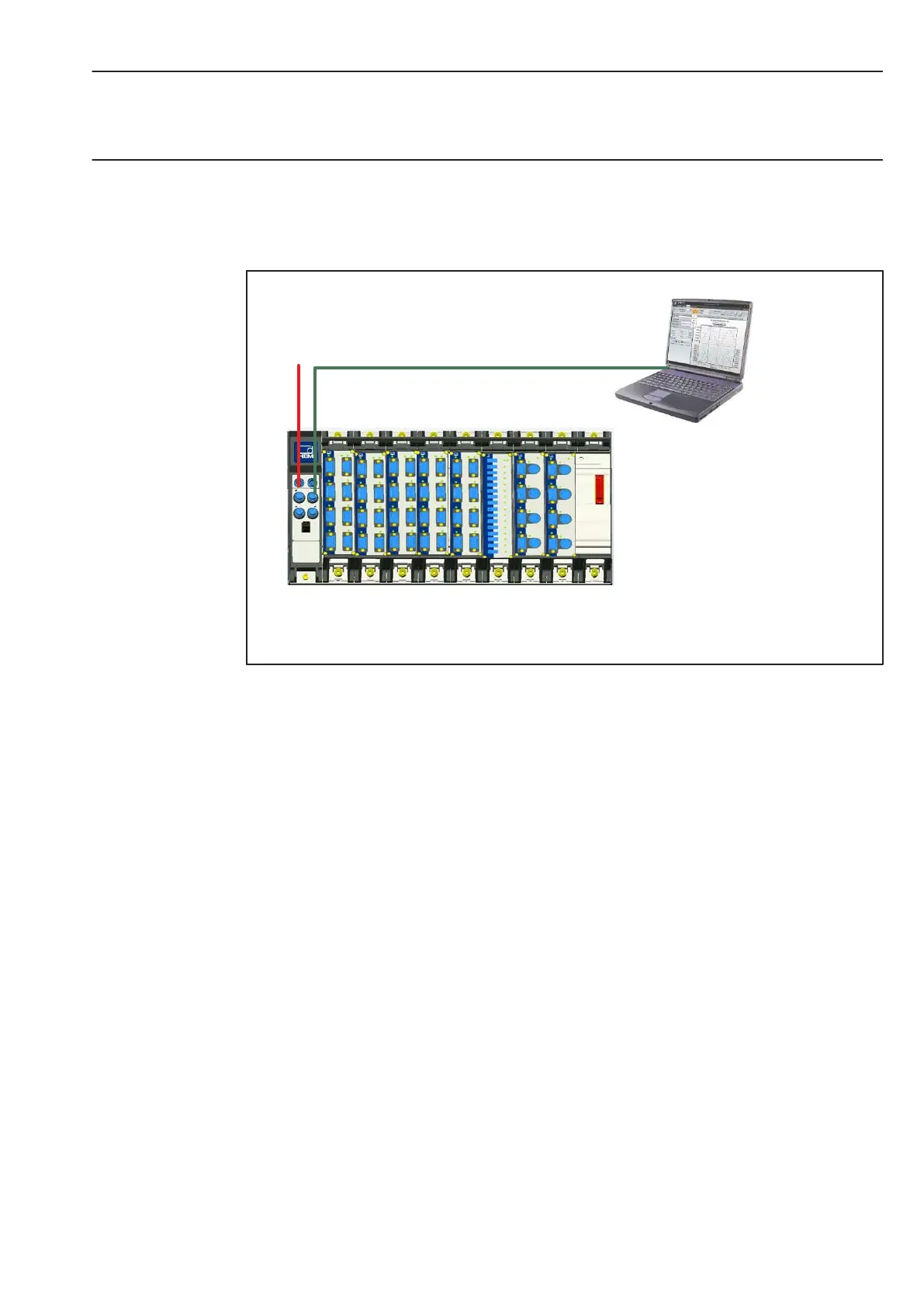

Fig. 4.24: Anbindung eines Mododulträgers über FireWire
