4.4 CASE-FIT
A fitting panel (CASE−FIT) allows flexible mounting of IP20 protected modules of the
QuantumX series. A lashing strap or CASE−CLIP can be used for fastening the modules.
Laschen für die zu-
sätzliche fixierung
mit Spanngurten
132
169,5
Ø 5,6
22
11,4
approx. 30

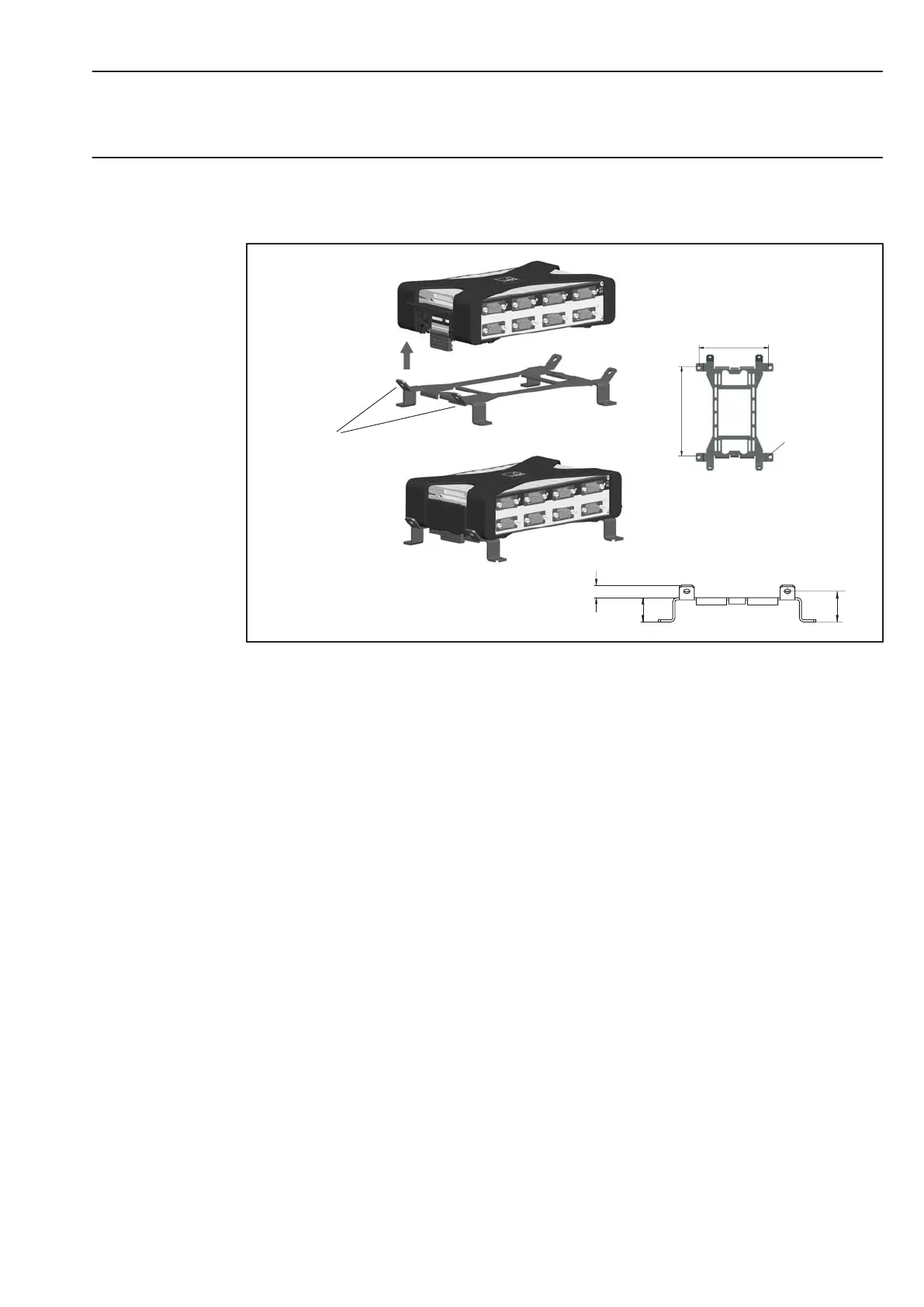

Fig. 4.15: Mounting of the IP20 version
