6.11.7 Adapter Quarter bridge, strain gauge
For connecting single quarter−bridge strain gauges in three−wire configuration, an adapter
can be plugged onto the following modules:
MX840, MX840A, MX440A, MX410
Available adapters:
Strain gauge with 120 ohm: order number: SCM−SG120
Strain gauge with 350 ohm: order number: SCM−SG350
21
1’

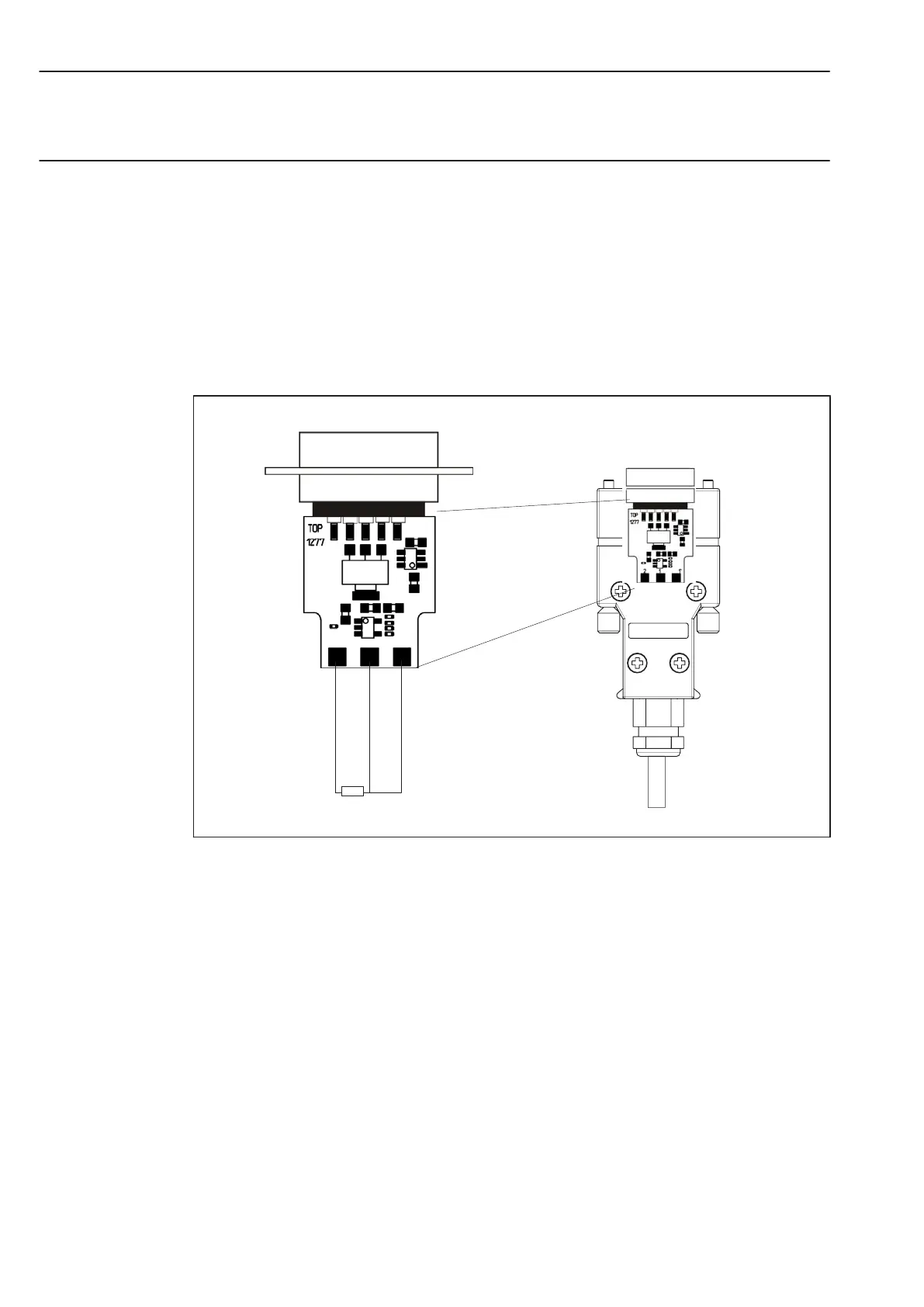

Strain gauge 120 / 350
See leaflet: QuantumX/SCM−SG120/350 for technical details.
