52 Connection
HBM QuantumX
5.2.3 Multiple Ethernet connection with synchronization
TCP/IP, 100 Mbps
Patch cable
Patch cable
10 V ... 30 V DC
FireWire connection
1-Kab269-x: Connection cable with various lengths (x m)

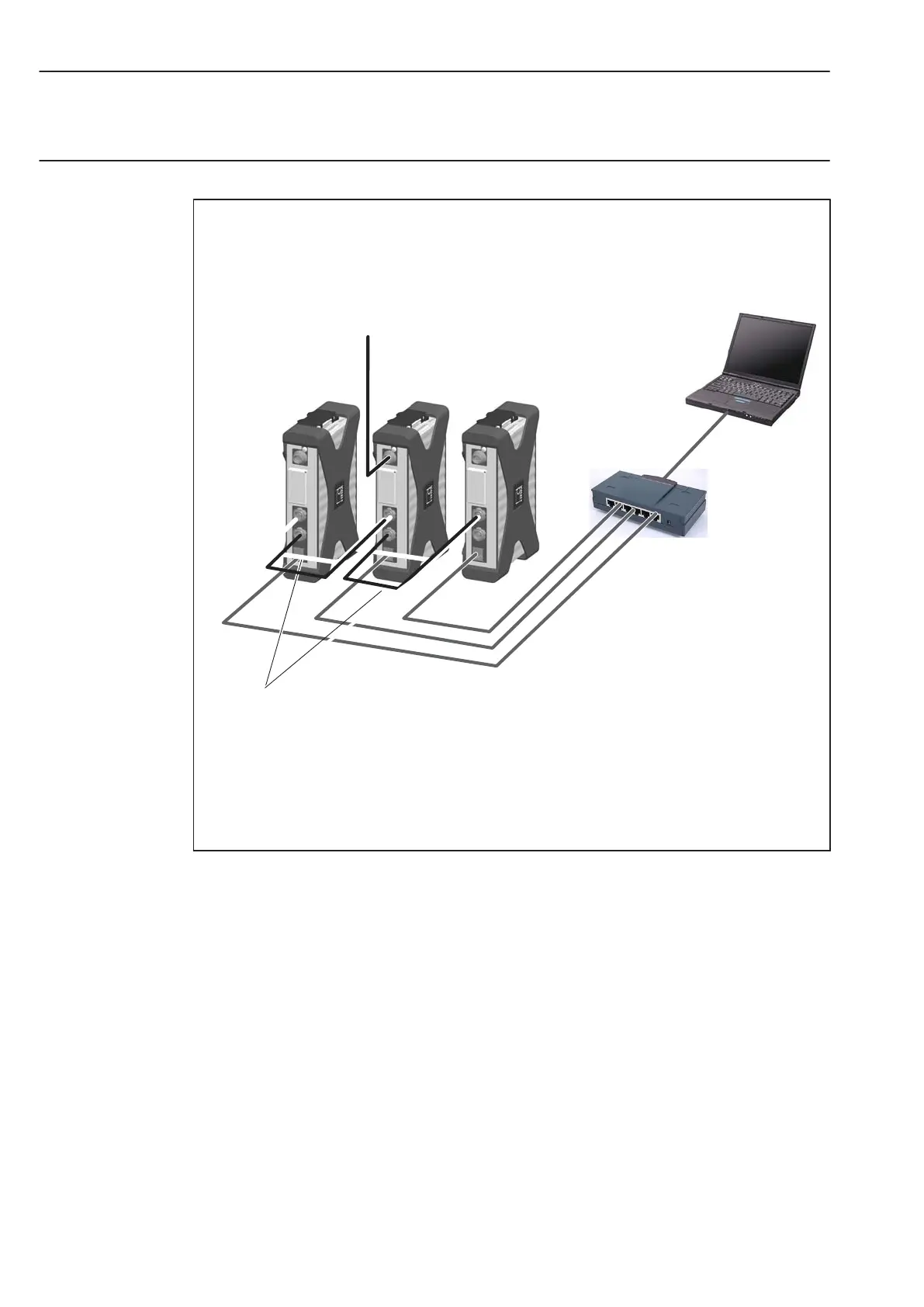

Fig.5.4: Example for multiple connection via Ethernet with synchronization
The supply voltage for the modules is looped through FireWire in the configuration shown
above (max. 1.1 A through FireWire; power consumption for 1 module, see specifications in
data sheet).
Advantage of this connection structure: The other modules remain active in case of a cable
break in the ethernet cable.
