6.2 MX840 universal amplifier
You can connect up to eight transducers to the universal amplifier MX840. The transducers
are connected via 15-pin D-SUB-15HD device connectors. All measuring channels are
electrically isolated von one another and from the mains. When using the adjustable
transducer excitation, electrical isolation from the supply voltage of the amplifier is not
required.

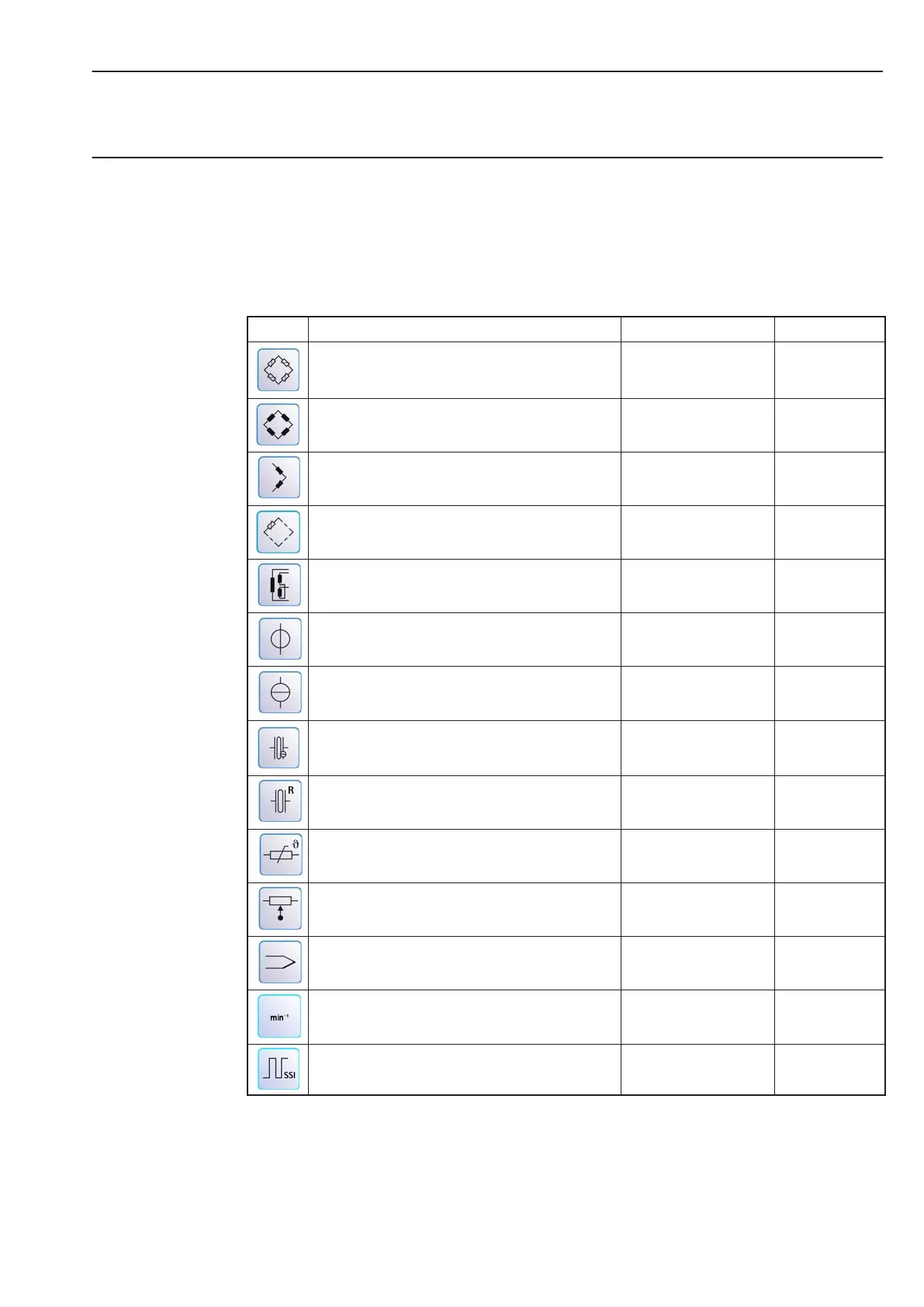

MX840 connectable transducers
Transducer type Connector sockets see page
Full bridge strain gauges 1 ... 8 112
Inductive transducers 1 ... 8 113
Inductive transducers 1 ... 8 116
Quarter bridge via Adapter 1 ... 8 LEERER MERKER
LVDT 1 ... 8 121
Voltage 1 ... 8 125, 126
Current 1 ... 8 127
Current fed piezoelectric transducer
(IEPE, ICP
)
1 ... 8 122
Piezoresistive transducer 1 ... 8 114
PT100, PT1000 resistance thermometers 1 ... 8 130
Potentiometers 1 ... 8 130
Thermocouples 1 ... 8 131
Incremental encoders 5 ... 8 from 133
SSI protocol 5 ... 8 139
