6.10.2 MX1615 status display
The front panel of the universal amplifier has a system LED and 16 connection LEDs. The
system LED indicates the status of the device, the connection LED the status of the
individual connections.
System-LED
Connection-LED
Connection-LED

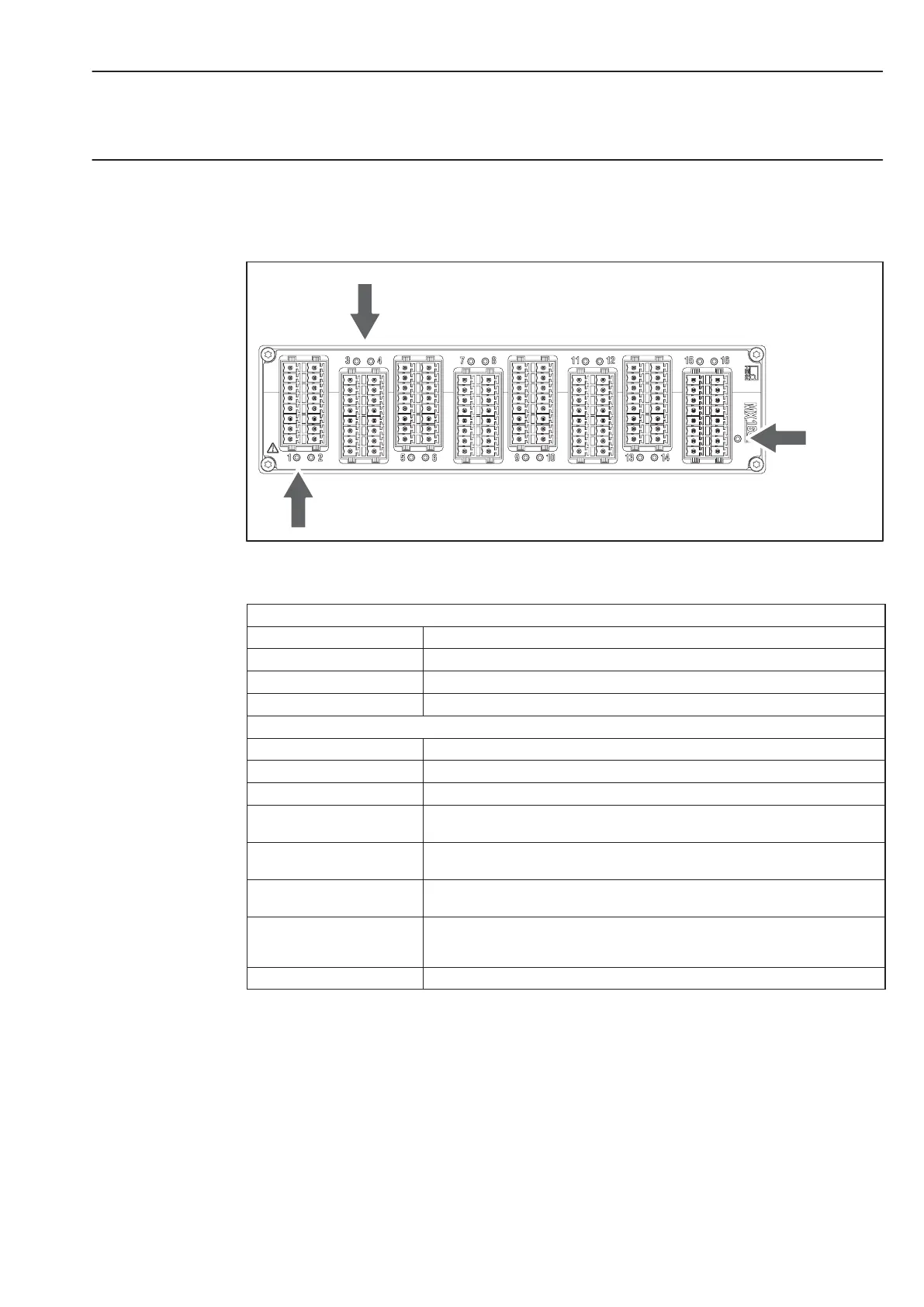

Fig.6.16: MX1615 front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification running (calibration)
Green Error-free operation (”Ignore TEDS” or ”if available” set,
channel is manually configured)
Flashing green (5s), then
green
Reading TEDS data
Flashing orange (5s), then
green
Manual configuration running (ignore TEDS)
Red Amplifier overload,
No sensor connected
Channel error (incorrectly parameterized, connection error, invalid TEDS data)
Red Sensor supply overload
General rule: Brief flashing → TEDS identified (green: is used, orange: is not used).
