146 Functions and outputs
HBM QuantumX
Peak Detection function
Each peak detection unit can monitor either the Min or the Max of one of the module’s 4
analog input channels. A peak unit may operate in different modes:
S RUN: peak value will be continuously updated
S HOLD: last peak value will be ”frozen”
S PEAK: peak detection enabled
S FOLLOW: peak detection disabled, i.e. the channel yields the original signal of the input
channel
The following combinations are possible:
Graph for MAX−PEAK−RUN
Graph for MAX−PEAK−HOLD
Graph for MAX−Follow−HOLD
This also applies to the minimum values.

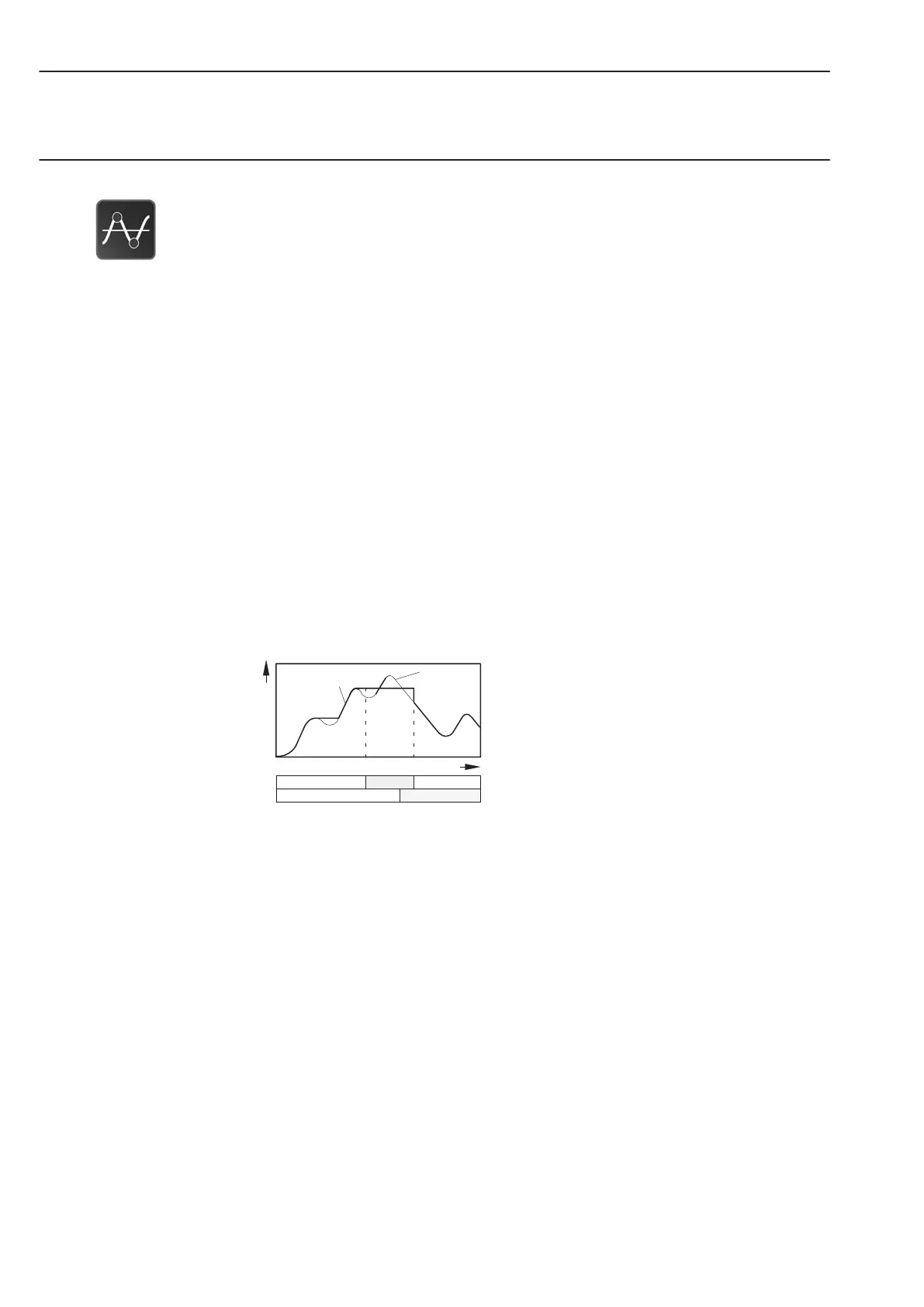

Graph for Peak Detection
Measuring
signal
Output
t
V
i
, V
o
HoldRun Run
Funktion
Betriebsart
Peak
Follow
