HEIDENHAIN iTNC 530 91

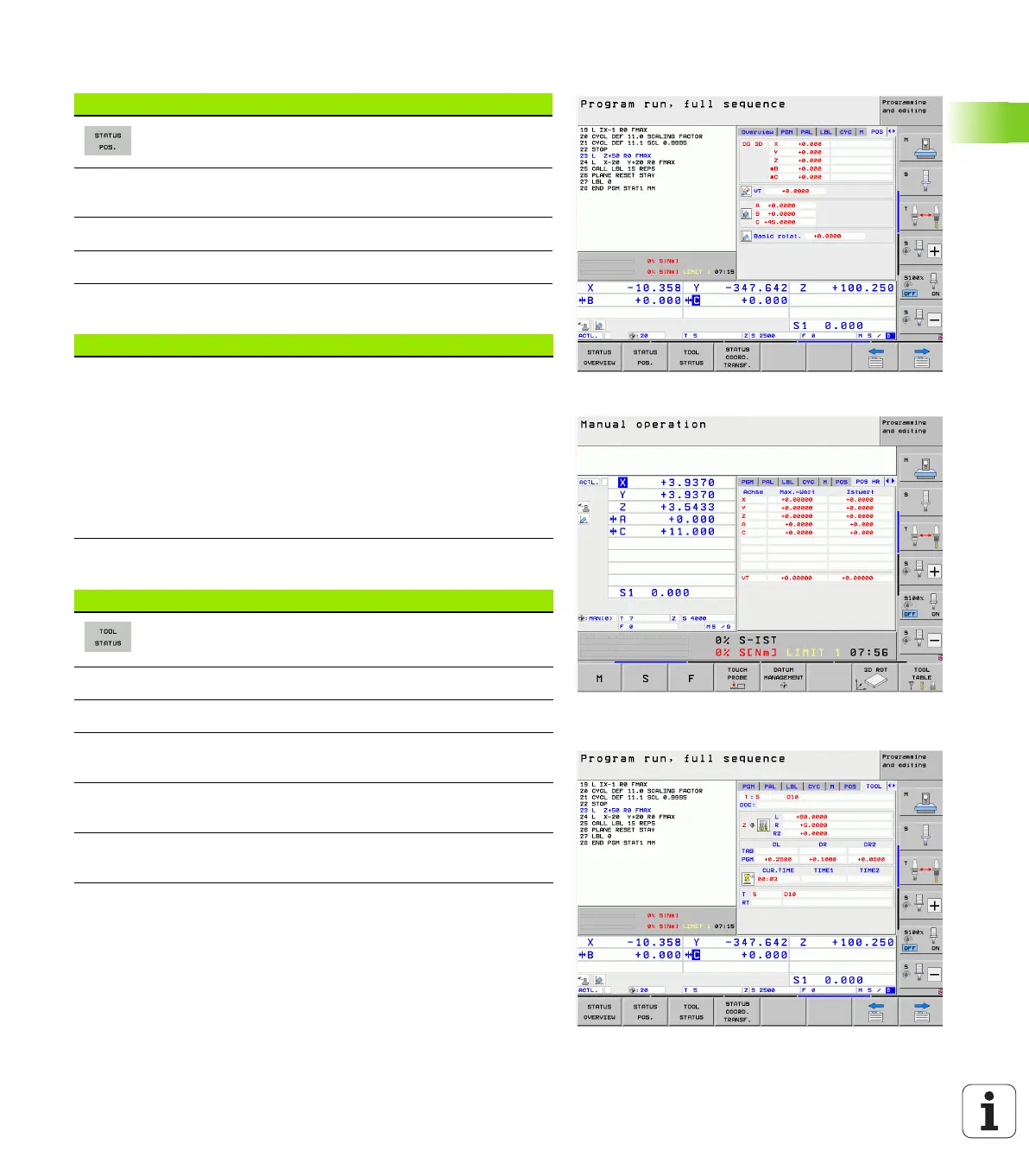

2.4 Status displays
Positions and coordinates (POS tab)
Information on handwheel superimpositioning (POS HR tab)
Information on tools (TOOL tab)
Soft key Meaning
Type of position display, e.g. actual position
Value traversed in virtual axis direction VT (only
with "Global Program Settings" software option)
Tilt angle of the working plane
Angle of a basic rotation
Soft key Meaning
No direct
selection
possible
 Axis display: Display of all active machine
axes (VT = Virtual axis)
 Max. value display:
Maximum permissible traverse range in the
respective axis (defined with M118 or global
program settings)
 Actual value display:
Actual value traversed in the respective axis
using handwheel superimpositioning
Soft key Meaning
 T: Tool number and name
 RT: Number and name of a replacement tool
Tool axis
Tool length and radii
Oversizes (delta values) from the tool table
(TAB) and the TOOL CALL (PGM)
Tool life, maximum tool life (TIME 1) and
maximum tool life for TOOL CALL (TIME 2)
Display of the active tool and the (next)
replacement tool
