92 Introduction

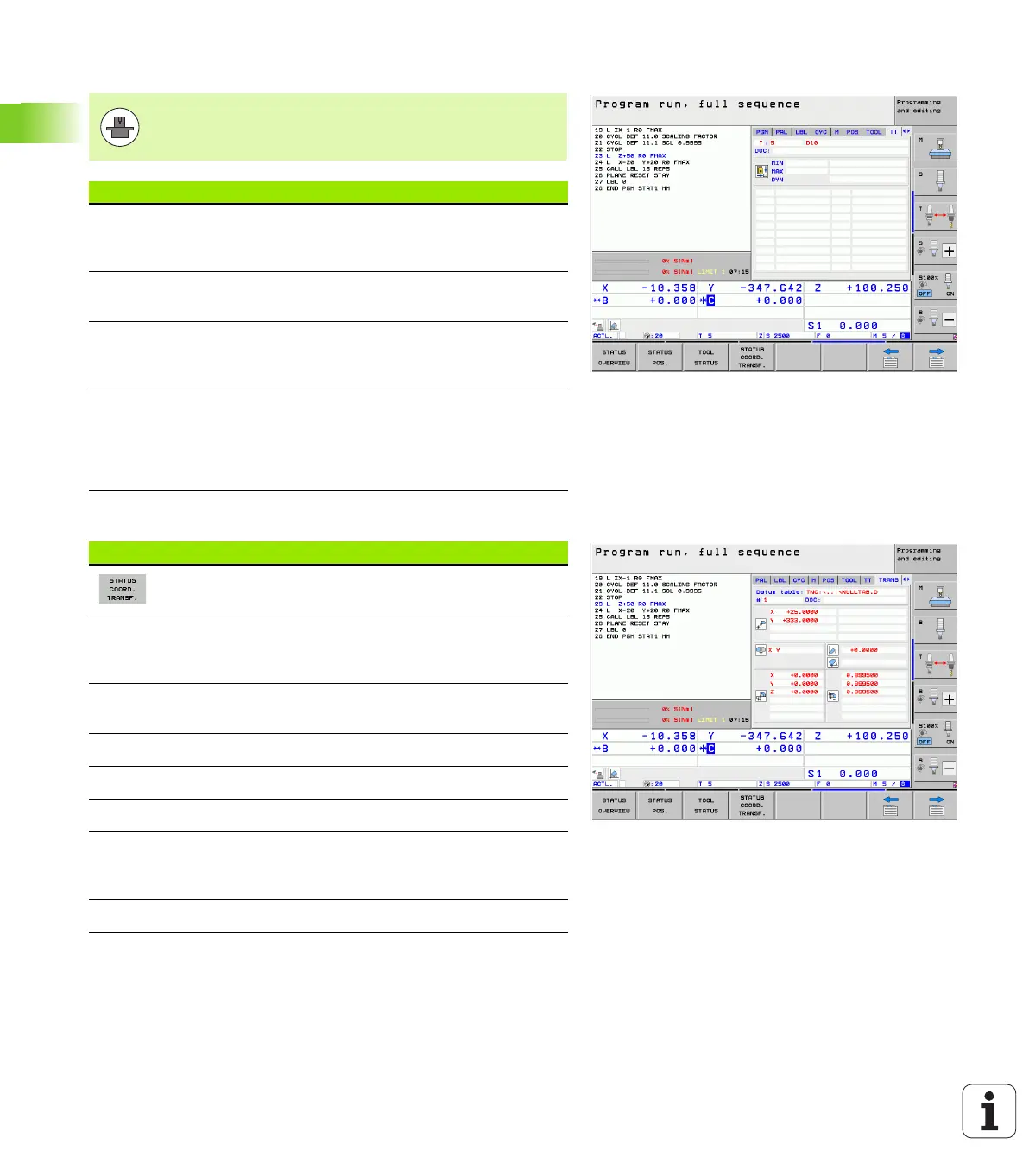

2.4 Status displays
Tool measurement (TT tab)
Coordinate transformations (TRANS tab)
For further information, refer to the User's Manual for Cycles,
"Coordinate Transformation Cycles."
The TNC displays the TT tab only if the function is active
on your machine.
Soft key Meaning
No direct
selection
possible
Number of the tool to be measured
Display whether the tool radius or the tool
length is being measured
MIN and MAX values of the individual cutting
edges and the result of measuring the rotating
tool (DYN = dynamic measurement)
Cutting edge number with the corresponding
measured value. If the measured value is
followed by an asterisk, the allowable tolerance
in the tool table was exceeded The TNC
displays the measured values of up to 24 teeth.
Soft key Meaning
Name of the active datum table
Active datum number (#), comment from the
active line of the active datum number (DOC)
from Cycle 7
Active datum shift (Cycle 7); The TNC displays
an active datum shift in up to 8 axes
Mirrored axes (Cycle 8)
Active basic rotation
Active rotation angle (Cycle 10)
Active scaling factor/factors (Cycles 11 / 26);
The TNC displays an active scaling factor in up
to 6 axes
Scaling datum
