5 June 2020 CasTemp Wireless including CasTemp Superheat Page 8

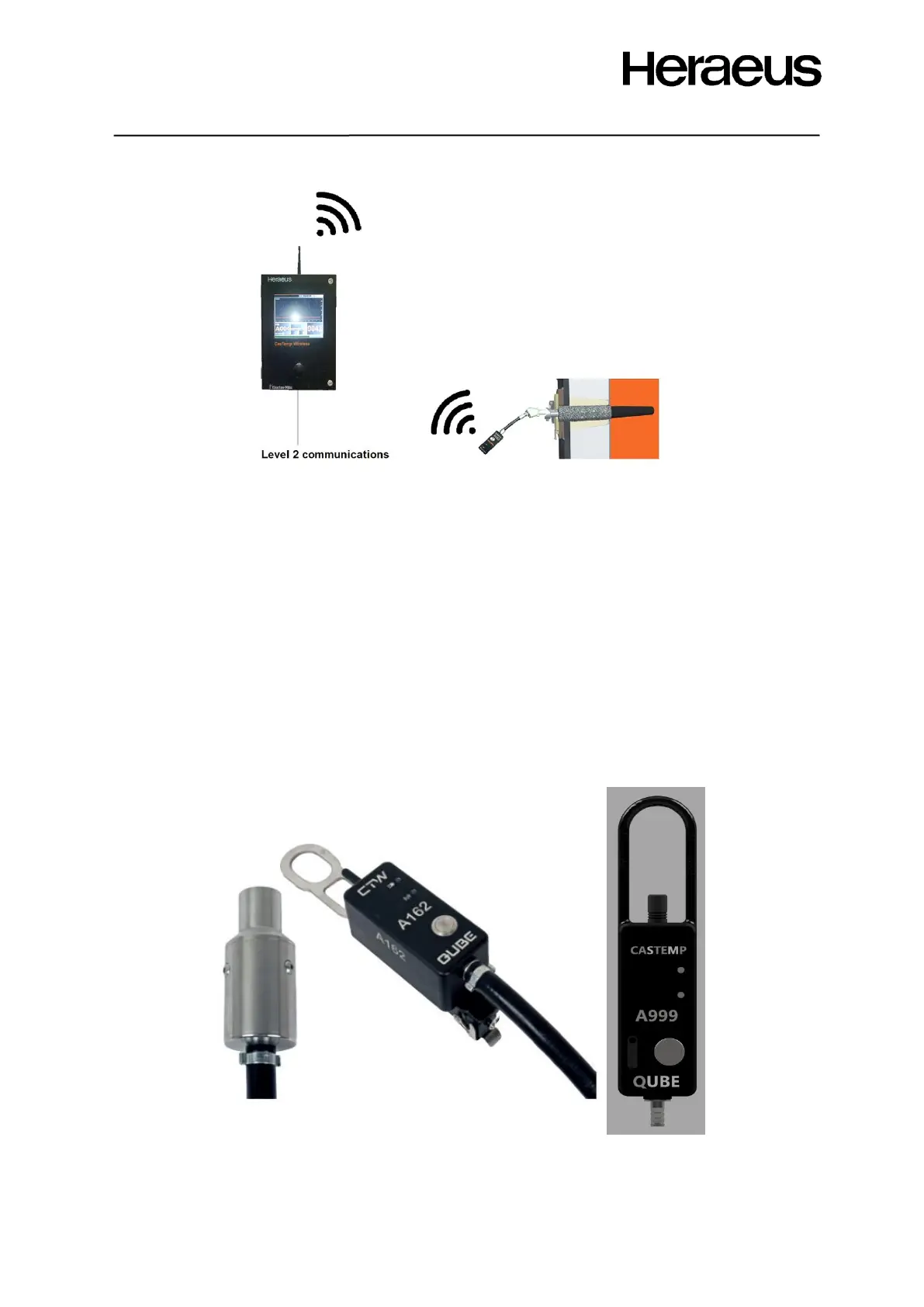

Figure 1: CasTemp Wireless QUBE CTW and instrument Overview
2.3.1 QUBE CTW module
The QUBE CTW module, Figure 2: QUBE CTW module, transceiver unit plugs directly on to the
CasTemp sensor and has the following features:
• Compatibility with CasTemp and other Heraeus continuous temperature sensors
• Robust construction for stable operation in environments -20
0
C to 60
0
C
• Can be operated with gloved hands
• LED status indication (closed circuit, broadcast, battery, over temperature)
• Programmable data capture rate
• ITS 90 type B thermocouple calibration
• Wireless Interface: 2.4GHz communication
• Rechargeable battery via dedicated USB port connection on the QUBE CTW module
• Long battery life (depends on data capture rate)
• Standard lengths of 1.5m, 3m and 4m are available
• A straight or right angled head (90
o
) are available
Figure 2: QUBE CTW module
