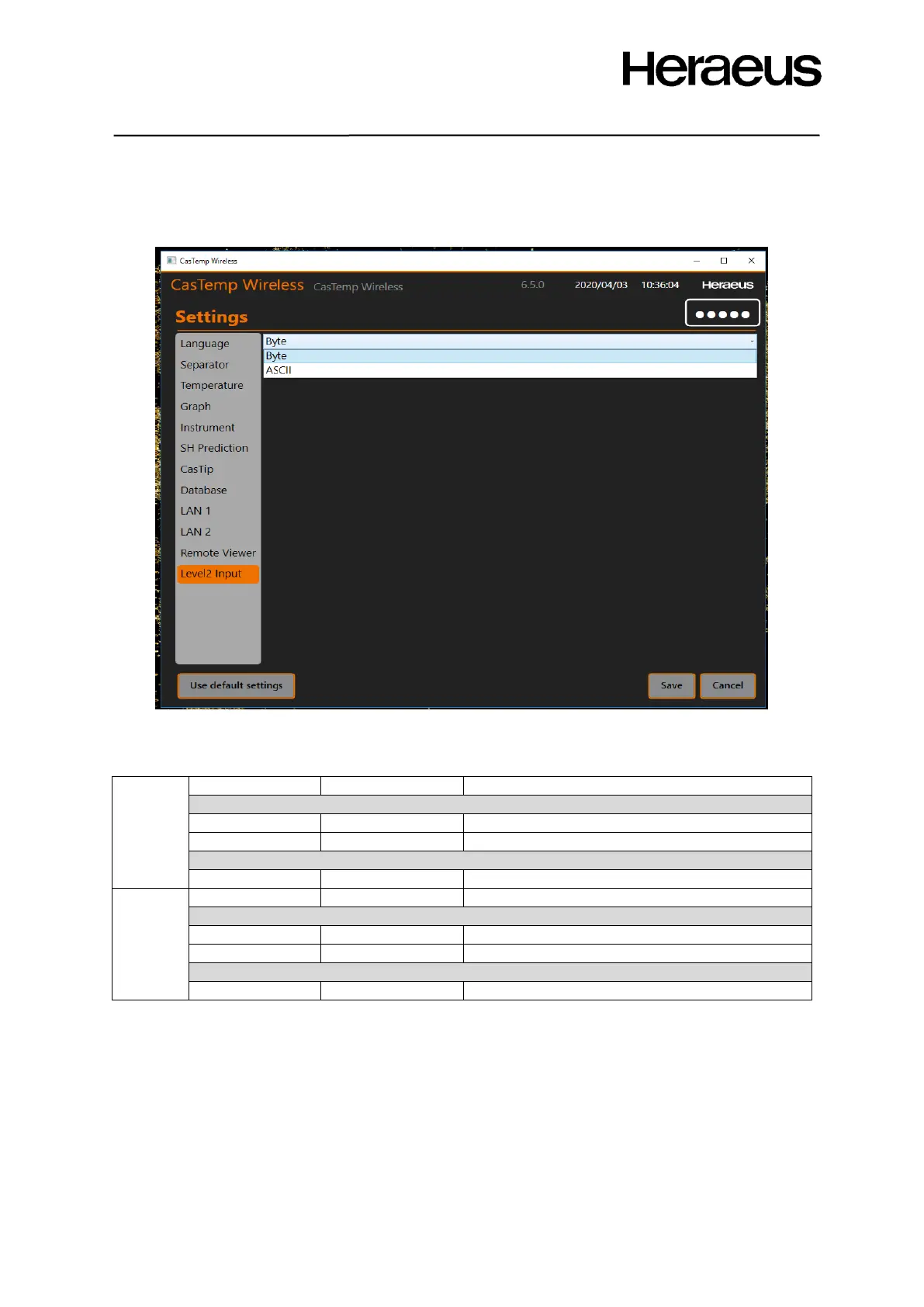

5.2.9 Level 2 Inputs
The communication over level 2 uses data telegrams.
Each telegram is an array of data following a general structure and each data telegram will contain a
header as described below:
The CasTemp wireless instrument has to be able to receive the data from the plant.
Data sent from plant to the CasTemp wireless instrument is input data. The direction of the
communication is always seen from the point of view of the CasTemp wireless instrument. See
section 0
Byte
Field name
format
Comment
Message header
Id
Byte
Identifier of the message
Data count
UShort
The number of bytes in the payload
Payload
Data
Message specific
Message specific data
ASCII
Field name
format
Comment
Message header
Id
1 Char
Identifier of the message
Data count
2 Chars
The number of bytes in the payload
Payload
Data
Message specific
Message specific data
