Heraeus Electro-Nite CasTemp Wireless - CasTip QUBE Setup and Connection; Sensor Probe Holder and Signal Cable

5 June 2020 CasTemp Wireless including CasTemp Superheat Page 17

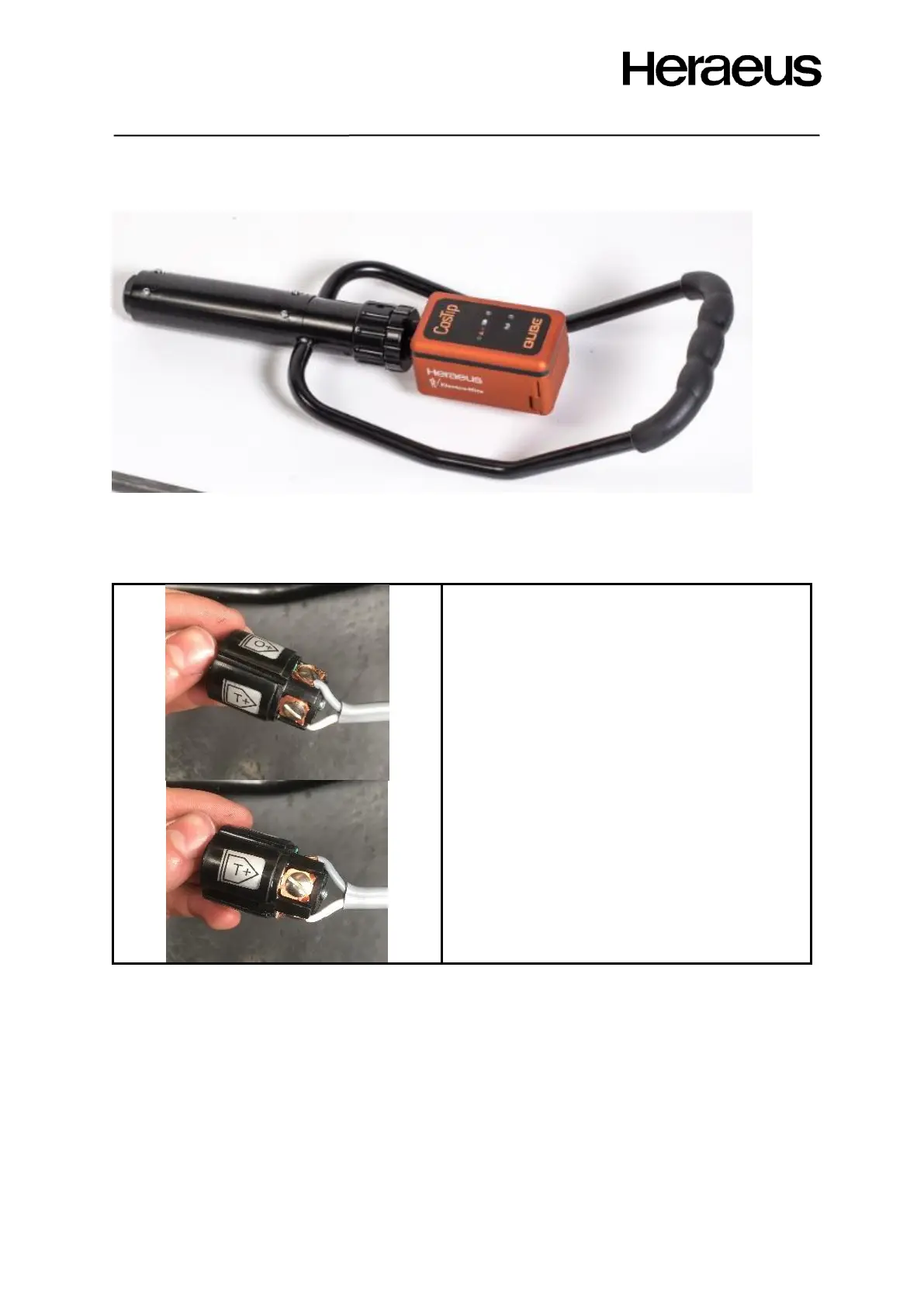

9.3.3 Lance Handle
The lance handle connects to the lance/pole via a ¾ thread, the QUBE CASTIP then is attached to
the lance handle. The contact block inside the handle must be wired to the oxygen channel.
The immersion system must be checked to ensure that the signal lights are clearly visible to the
operator as the measurement involves waiting until the sample if fully frozen and a liquidus arrest is
verified through the software.
9.3.4 CasTip Sensor
CasTip is the sensor which obtains the liquidus measurement. How this sensor is used is shown in
Section 9.8.3 Immersion Procedure and Signalisation
Attach the copper wire to the lance handle insert.
GREY CABLE (+) to O+
WHITE CABLE (-) to O-
