Heraeus Electro-Nite CasTemp Wireless - Standard Mode Measurement Screen; Superheat Mode Measurement Screen

5 June 2020 CasTemp Wireless including CasTemp Superheat Page 15

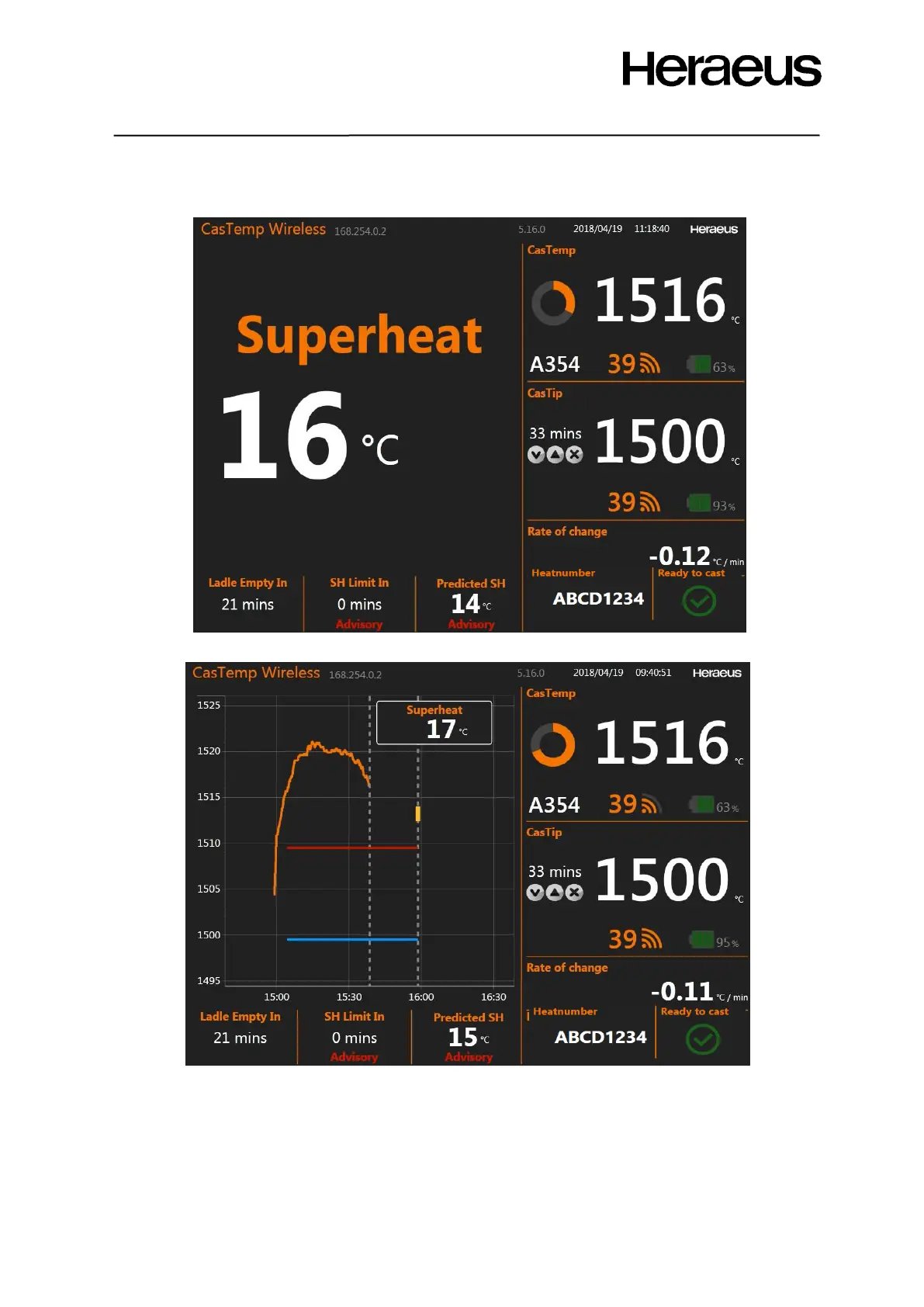

9.2.2 CasTemp Wireless Instrument Measurement Screen in CasTemp Superheat mode
Figure 74: SuperHeat Mode
Figure 75: SuperHeat Prediction Mode
• Large or small graphs: (see section 5.1.3 Graph settings )
o In standard mode this positions the graph on the main screen or bottom right corner
o In superheat mode then either the superheat is displayed (small) or the prediction
screen is displayed (large)
