2.3.2 CasTemp Wireless Instrument (CTW)
The CasTemp Wireless instrument, Figure 3: CasTemp Wireless instrument (CTW), controls the
QUBE CTW module and displays the liquid steel temperature:
• Wall-mounted in an IP67 housing
• Easy-to-read wide field of view TFT display
• 1:1 pairing protocol: only one QUBE CTW module can be linked to one instrument at a time to
maintain location identity (ID) control
• One-button operation
• TCP/IP Ethernet, USB, Serial output ports
o Optional Profibus and Ethernet IP ports
• Setup and programming of the QUBE CTW module and the CasTemp Wireless instrument
using an external keyboard and mouse
• Data storage and download capability via USB
• Remote Viewer capability via TCP/IP Ethernet (with data download functionality)
• Separate power outlet for attaching a dedicated cable for recharging the QUBE CTW module

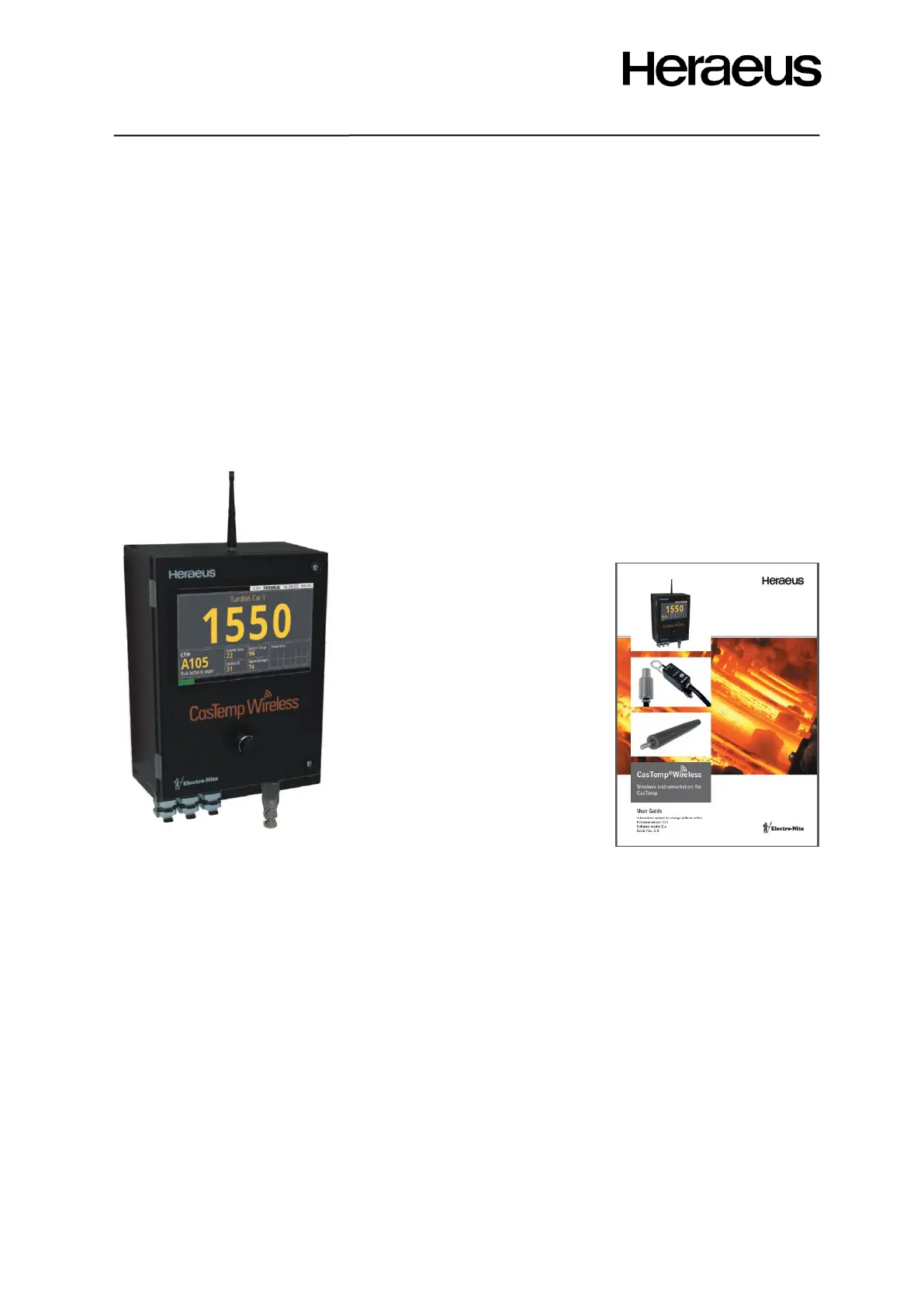

Figure 3: CasTemp Wireless instrument (CTW)
Figure 4: CTW User Guide
2.3.3 CasTemp Wireless User Guide
The CasTemp Wireless User Guide (Figure 4: CTW User Guide) contains all relevant information for
safe system operation:
• Preparation
• Location ID
• Critical Safety Information
• Pairing Conditions
• Measurement Conditions
• Alerts
• Troubleshooting
• Glossary
