5 June 2020 CasTemp Wireless including CasTemp Superheat Page 10
3 Installing the system
In order to achieve a successful installation, all of the necessary components can be obtained in one
CTW STARTER PACK (Figure 5: CTW STARTER PACK). This provides all parts and accessories to
allow a customer to begin a wireless continuous temperature measurement. The CTW STARTER
PACK comprises:
• x2 QUBE CTW Modules.
• x1 CasTemp Wireless instrument:
• 1 QUBE CTW INST. ACCESSORIES. Associated mounting and fixing accessories pack.
o contains the instrument mounting plate and all necessary fixings
o the CasTemp Wireless User Guide
o CASTEMP SHORTING TOOL
o CTW CHARGING CABLE

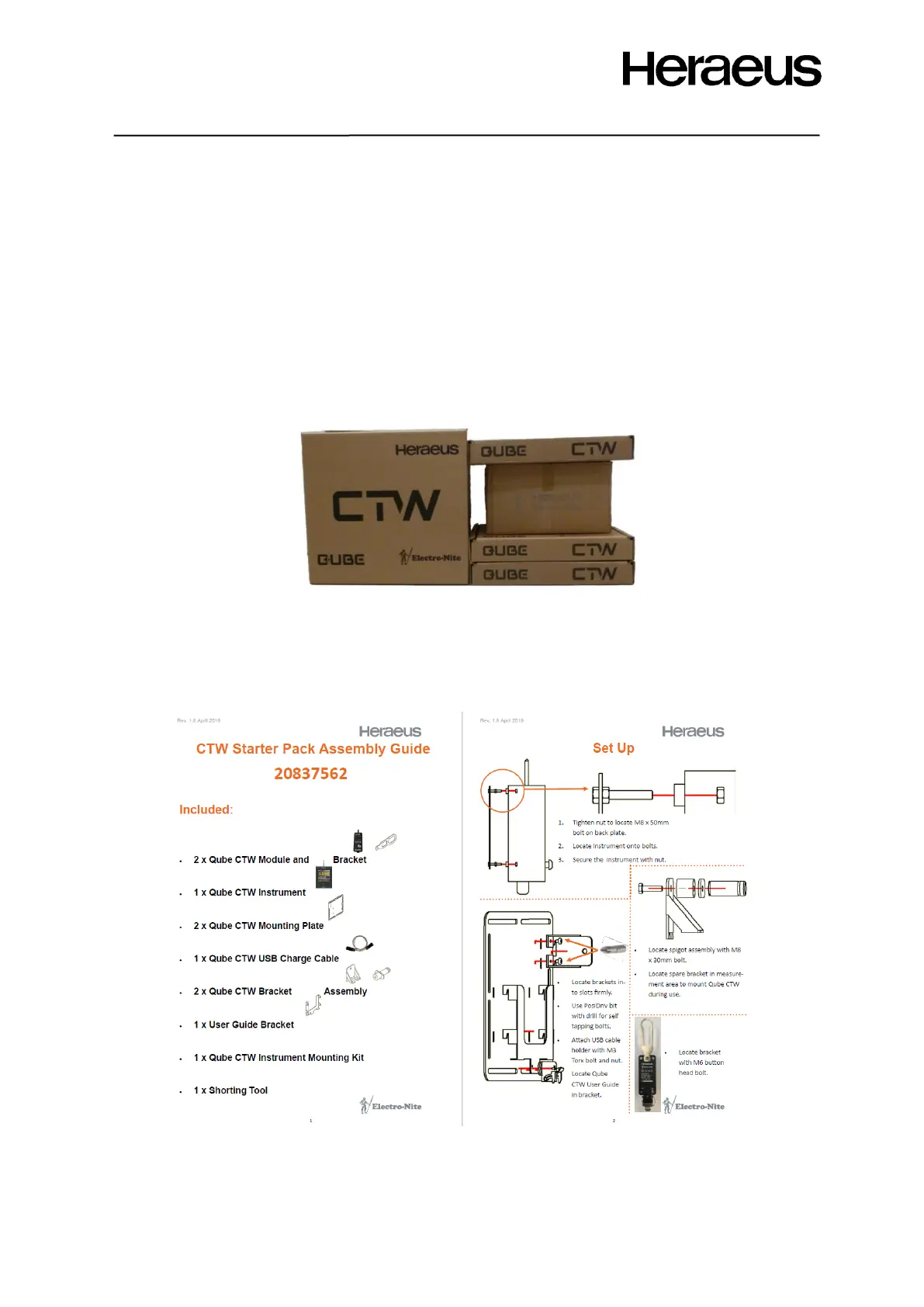

Figure 5: CTW STARTER PACK
Variants of the starter pack are possible based on the length of QUBE CTW module and whether a
straight or right handed head is required, see Section 8.3.3 QUBE CTW Module.
A CTW STARTER PACK Assembly Guide (Figure 6 CTW Starter Pack Assembly Guide) and User
Guide (Figure 4) are provided with each CTW STARTER PACK.
Personnel training and awareness are critical to ensure ongoing safe and reliable operation.
Figure 6 CTW Starter Pack Assembly Guide
