5 June 2020 CasTemp Wireless including CasTemp Superheat Page 24
4.2.2.9 Confirm the measurement location
The last step is to confirm location of the QUBE CTW module to the CasTemp Wireless instrument.
The CasTemp Wireless instrument asks to confirm this by asking to push the button a last time –
Figure 24. The serial number of the QUBE CTW module can be found on the module housing (see
Figure 18: QUBE CTW module).

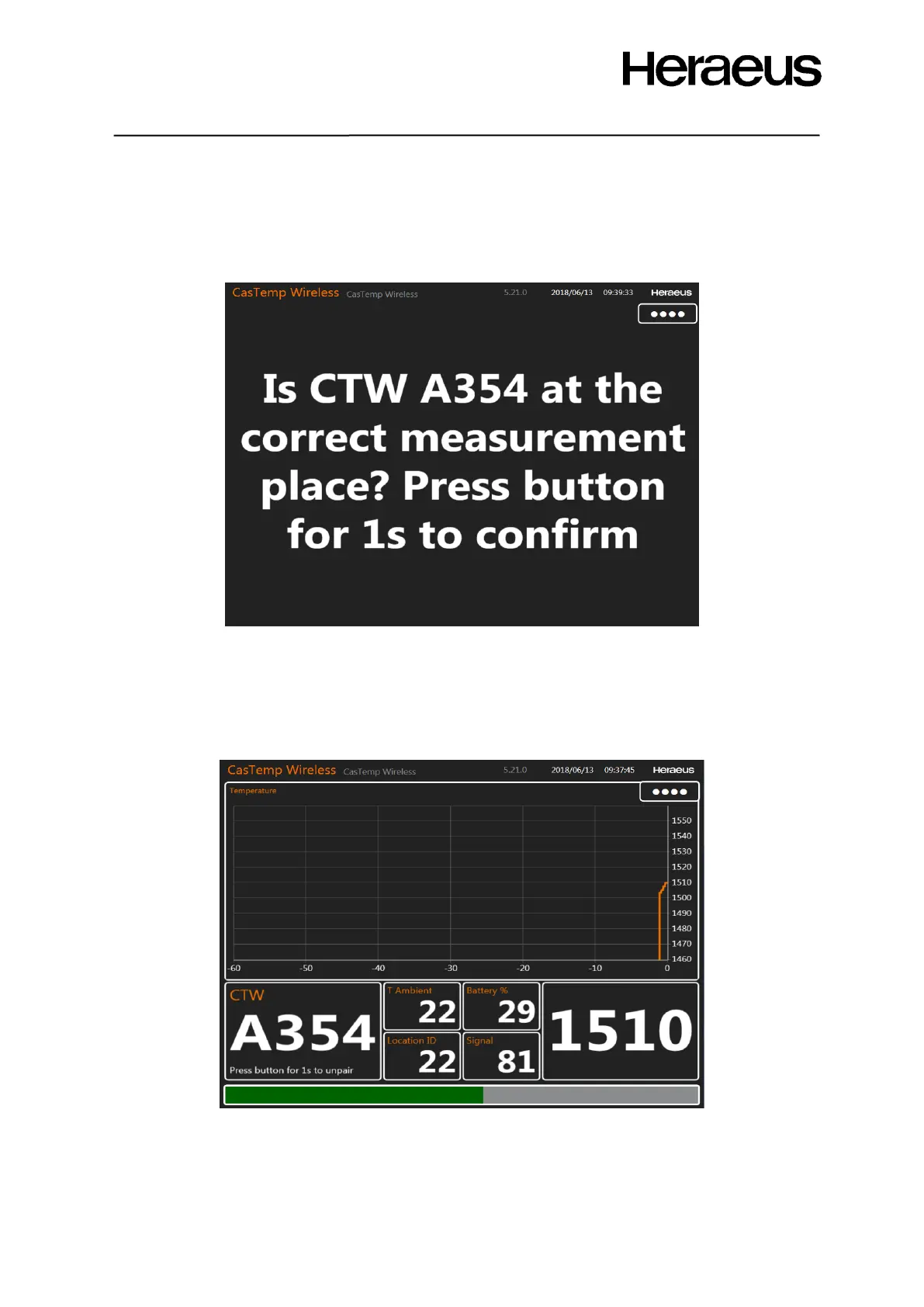

Figure 24: Confirm the correct measuring place
After going through the steps described above, the CasTemp Wireless instrument and the QUBE
CTW module are linked together. It is not possible for other QUBE CTW modules to interrupt this link,
the link is unique and active for as long as both parties (CasTemp Wireless instrument and QUBE
CTW module) want it to be active.
The CasTemp Wireless instrument will now show the measurement window as Figure 25 indicates.
Figure 25: Measurement window after pairing
