5 June 2020 CasTemp Wireless including CasTemp Superheat Page 10

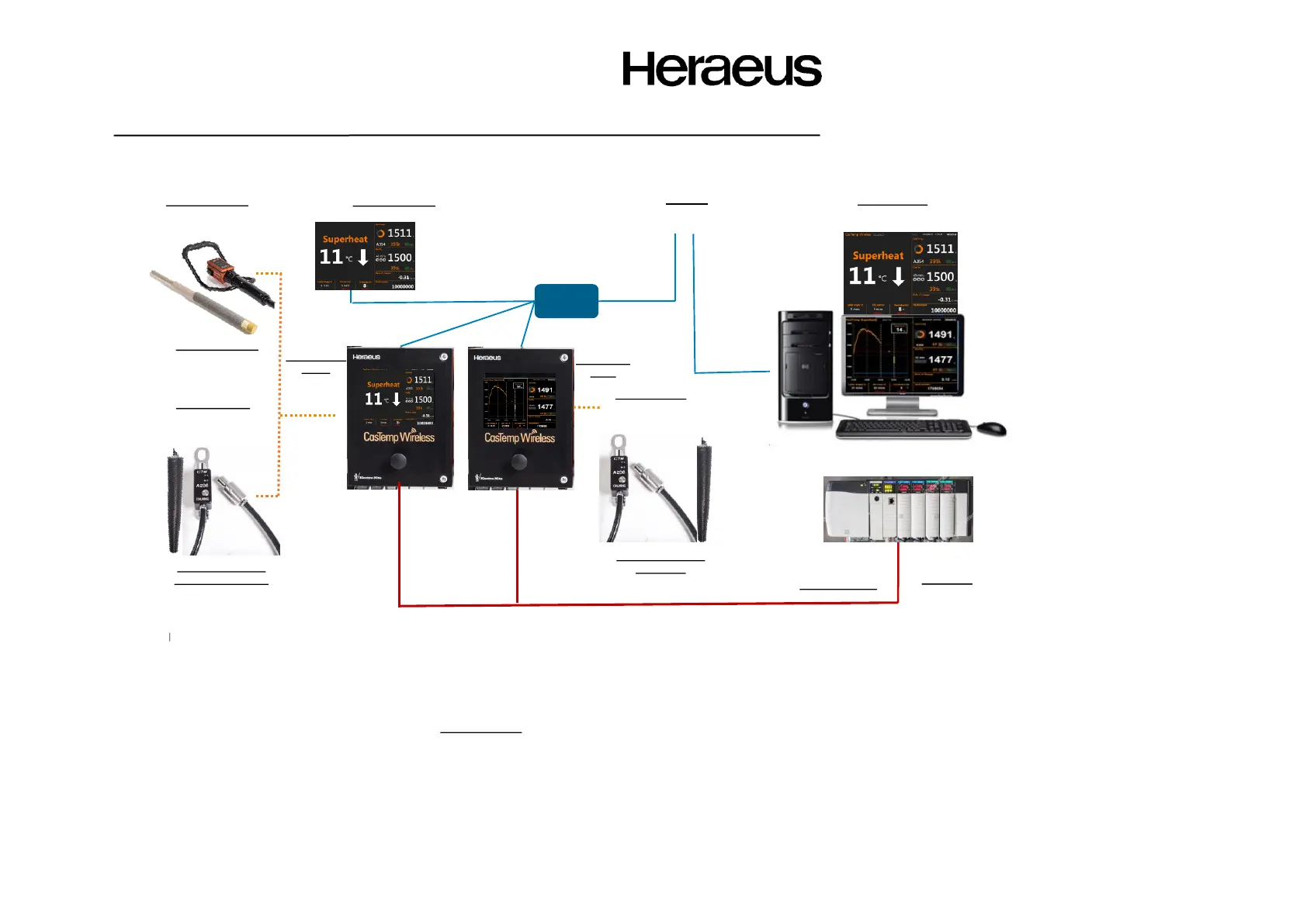

Figure 86: Overview SuperHeat System

Slave CTW

E car

Master CTW

W car

Caster plc

I/O modules

Presentation title | Author | Department6

Shroud Platform

CasTip QUBE

W Tundish Car

QUBE CTW

plc Profibus I/O

Control room pc

Remote Viewer

Manual I/O via pc (trials)

Temporary data connection with plc (trials)

Network

Enables interconnectivity between CTW

instruments and Remote Viewer applications

Wireless data link

to W car PAN ID 36

CasTip QUBE

QUBE CTW

Wireless data link

PAN ID 37

QUBE CTW

E Tundish Car

QUBE CTW

Shroud Platform

CasTip QUBE

Ethernet

hub

Shroud Platform

HMI in place on shroud platform

Control Room

TCP IP Remote Viewer displays:

dedicated HMI or pc

Main Page
