5 June 2020 CasTemp Wireless including CasTemp Superheat Page 14
The Power Box kit comes with a mounting plate and self-tapping screws to allow for it to be mounted
in a suitable place.

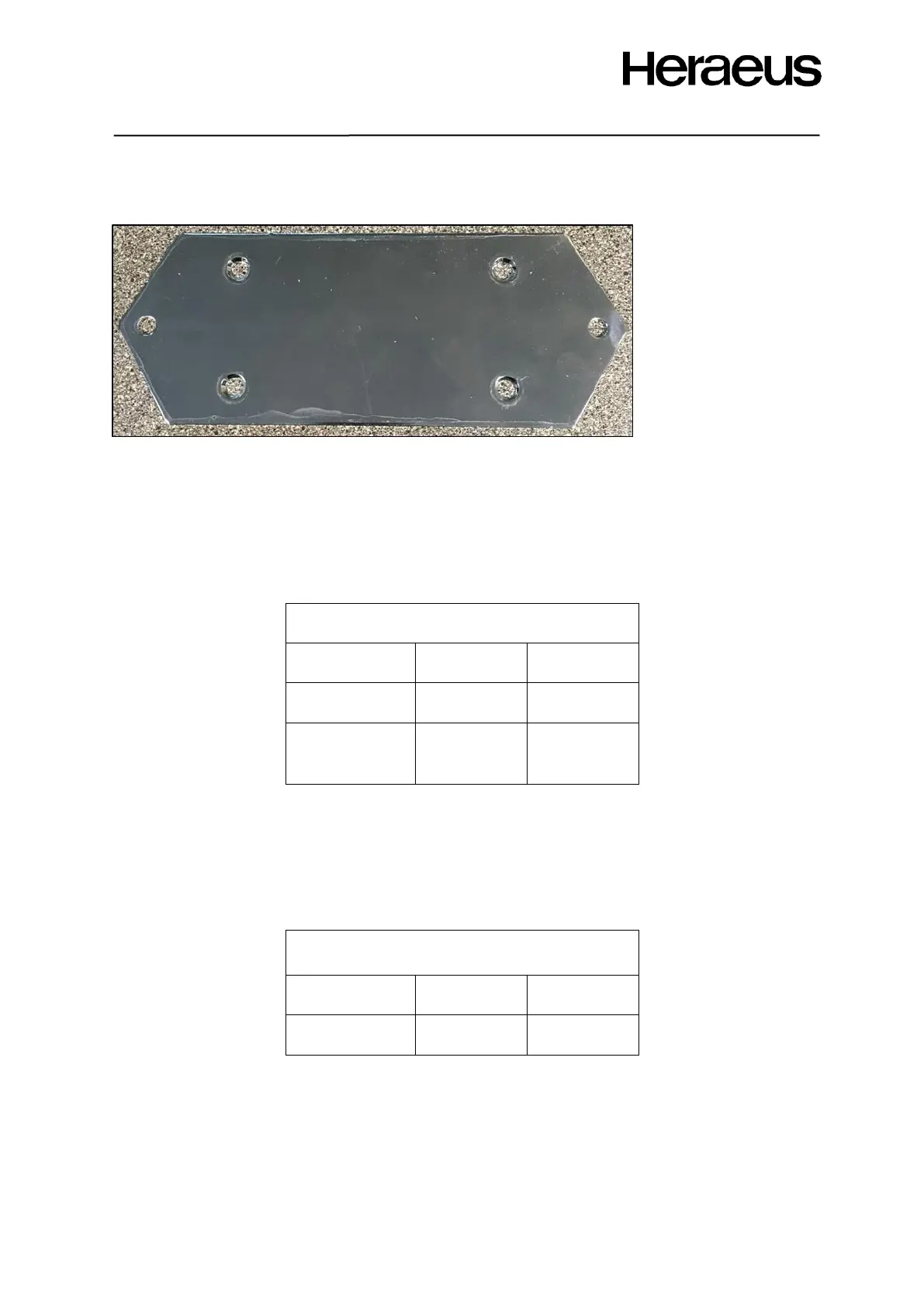

Figure 14: Power Box mounting plate
3.2 Critical Safety Information
The key to a successful installation is to ensure that the system can operate within its operational
limits. This will ensure integrity of the measurement, reliability of the equipment and operator safety:
Locate the QUBE CTW module in such a way that it will remain in its operational temperature range.
Temperature Operating Limits
It may be necessary to shield the QUBE CTW module from direct radiant heat transfer and protect it
from molten metal splash.
It is not safe to allow the QUBE CTW module temperature to exceed 85
0
C.
Site the CasTemp Wireless instrument relative to the QUBE CTW module to maintain minimum mean
signal strength. The instrument itself must be protected from direct heat impingement.
Signal Strength Operating Limits
Carry out a risk assessment to ensure that the likelihood of hazard conditions is eliminated through
application of suitable control measures. An example of likely hazards and mitigation strategies is
given in the table below:
