Chapter 1 Introduction
Front Panel

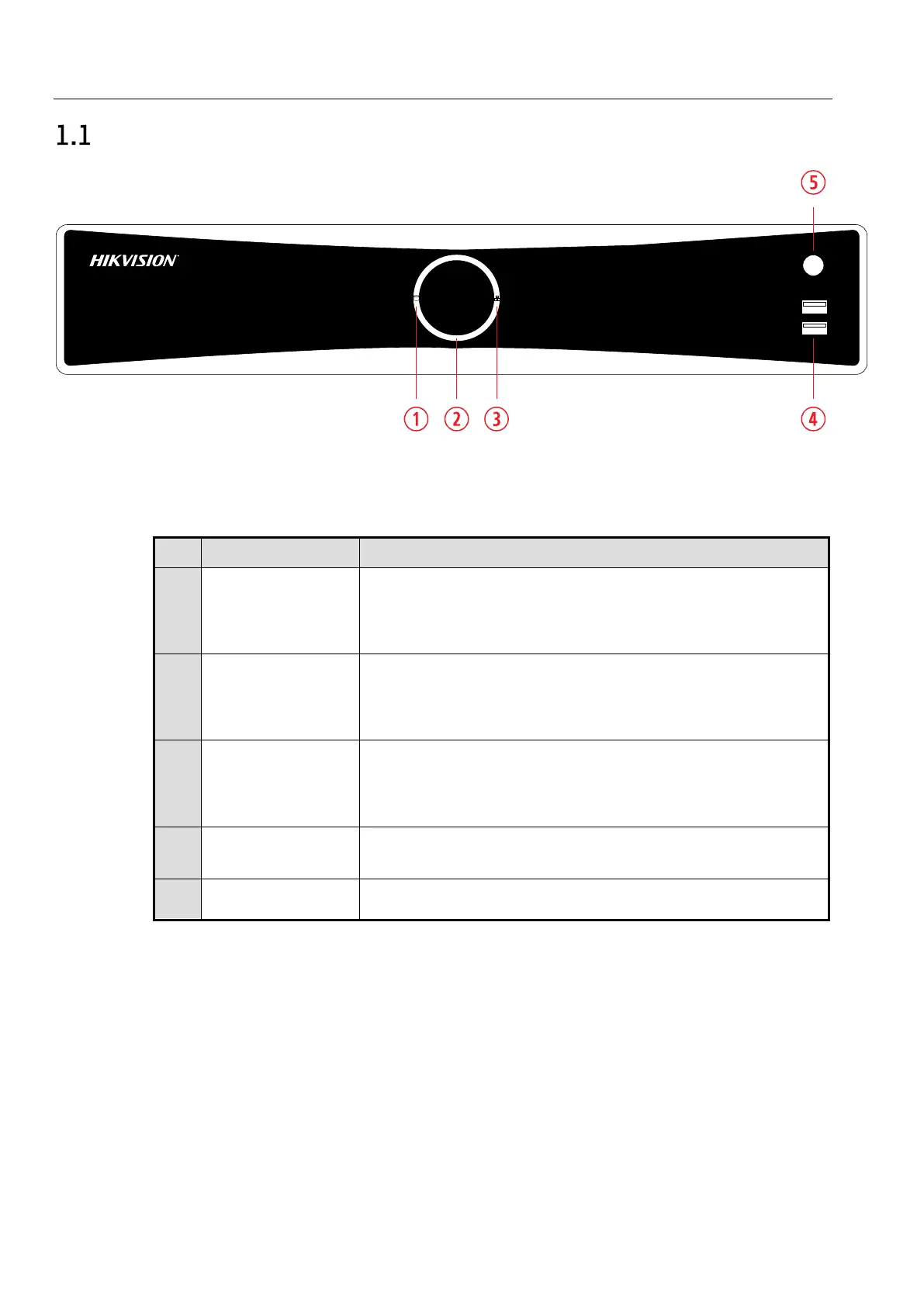

Figure 1-1 Front Panel
Table 1-1 Panel Description
No.
Name
Function Description
1 HDD indicator
•
Solid white: HDD is abnormal.
•
Flashing white: HDD is reading/writing.
•
Unlit: No HDD is detected.
2 Power indicator
•
Solid white: Device is running normally.
•
Breathing light: Device is shutdown.
•
Unlit: No power supply is connected.
3 Network indicator
•
Solid white: Network connection is normal.
•
Flashing white: Device is transferring data via network.
•
Unlit: Network connection failed.
4 USB Universal Serial Bus (USB) 2.0 port for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
IR Receiver
IR receiver for remote control.
