DS-76xx-I2/xP/4S NVR UM
21
Rear Panel
DS-76xxNXI-I2/xxP/4S

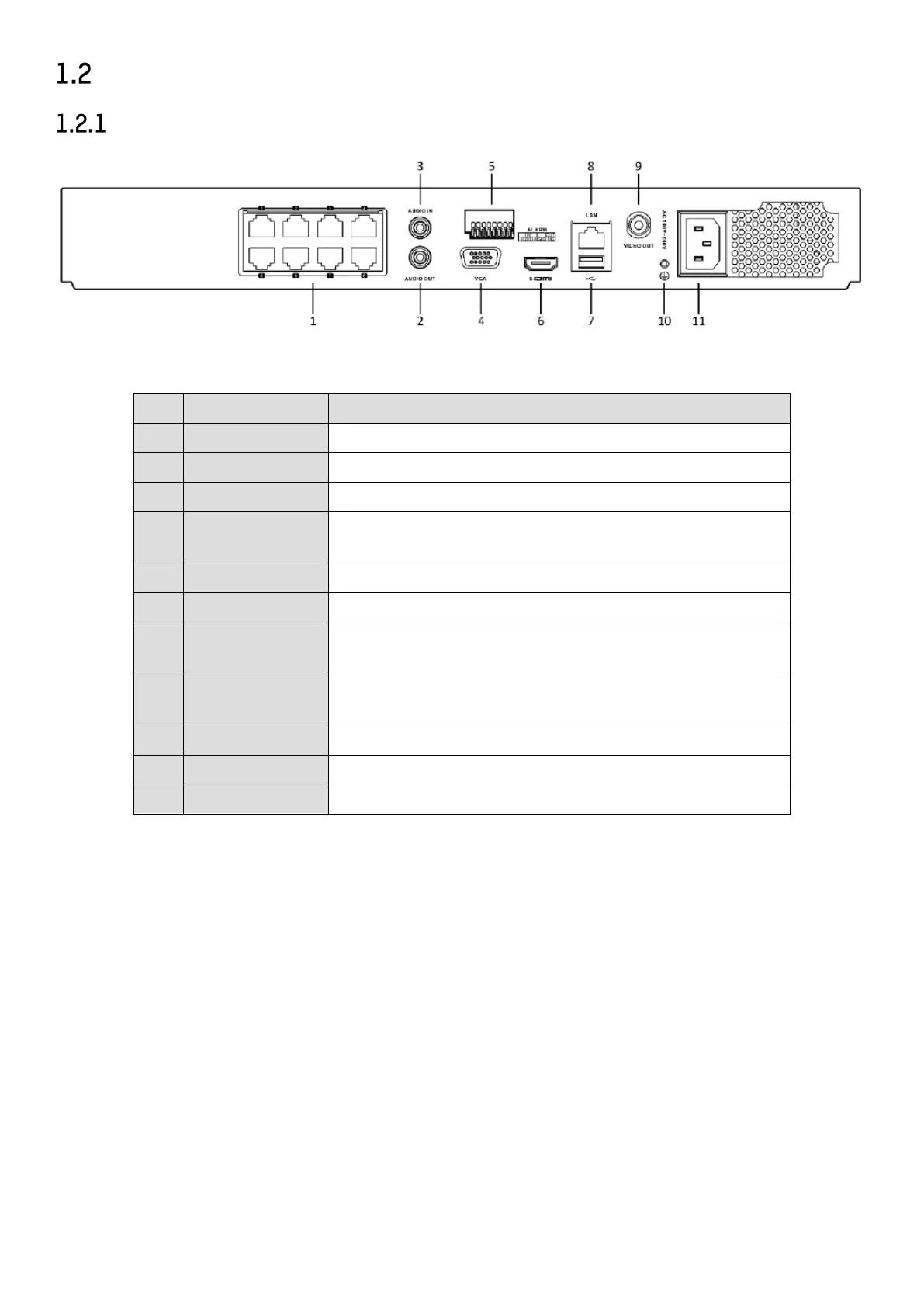

Figure 1-6 Rear Panel
Table 1-5 Panel Description
No.
Name
Description
1
PoE
RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
2
Audio out
RCA connector for audio output
3
Audio in
RCA connector for audio input
4
VGA
DB9 connector for VGA output. Display local video output
and menu
5
Alarm in/out
Connector for alarm input/output
6
HDMI
HDMI video output connector
7
USB 3.0
Universal Serial Bus (USB) 3.0 port for additional device
such as USB mouse and USB Hard Disk Drive (HDD)
8
LAN
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
9
Video out
CVBS video output
10
GND
Ground
11
Power supply
100 to 240 VAC power supply
