8.3 Multiplex
er Settings
151
8

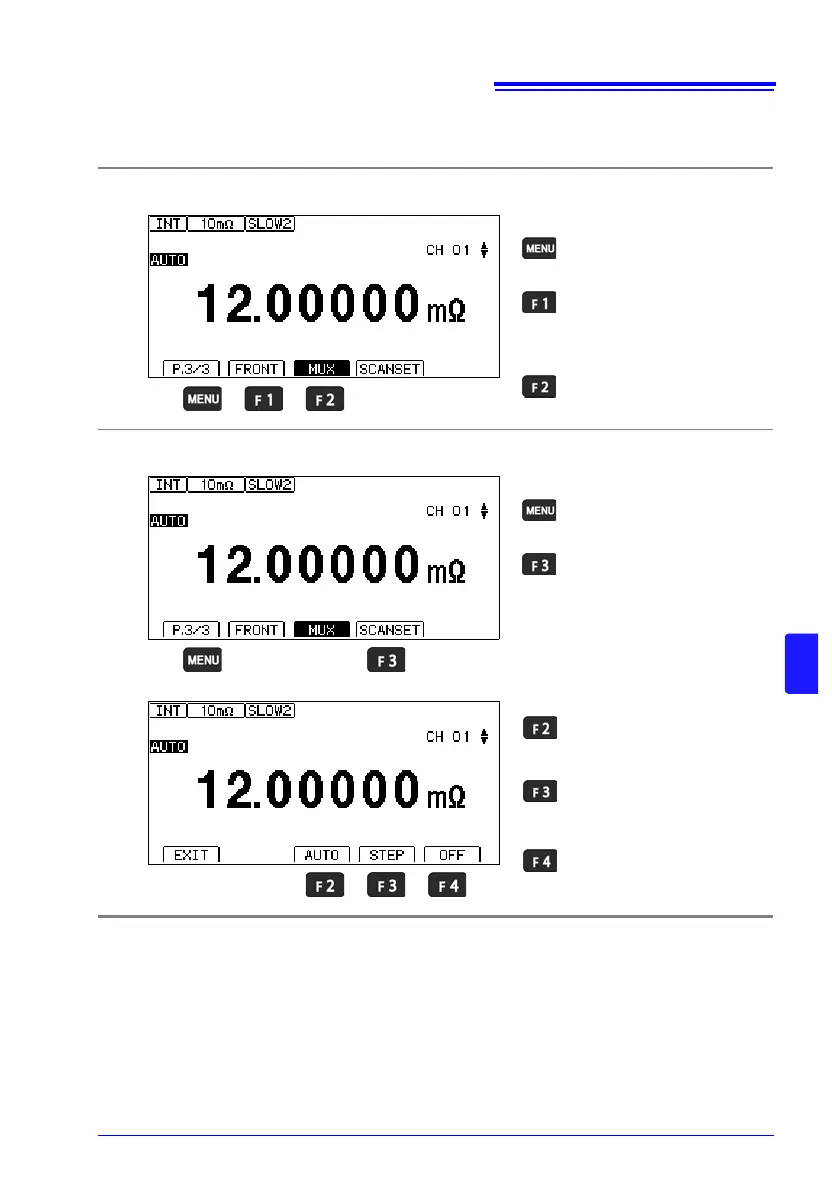

When changing the measure
ment terminal setting or scan function setting on the
Measurement screen
1
Set the measurement terminals.
2
Set the scan function.
Switch the function menu
to P.3/3.
1
2
Make measurements using
the front measurement ter-
minals (do not use the multi-
plexer). (default)
Use the multiplexer.
Switch the function menu
to P.3/3.
1
2
Scan Function Sel
ection
screen
Use auto-scan
(measure all channels at
each TRIG signal).(default)
Use step scan
(measure 1 channel at each
TRIG signal).
Do not scan.
158
160
