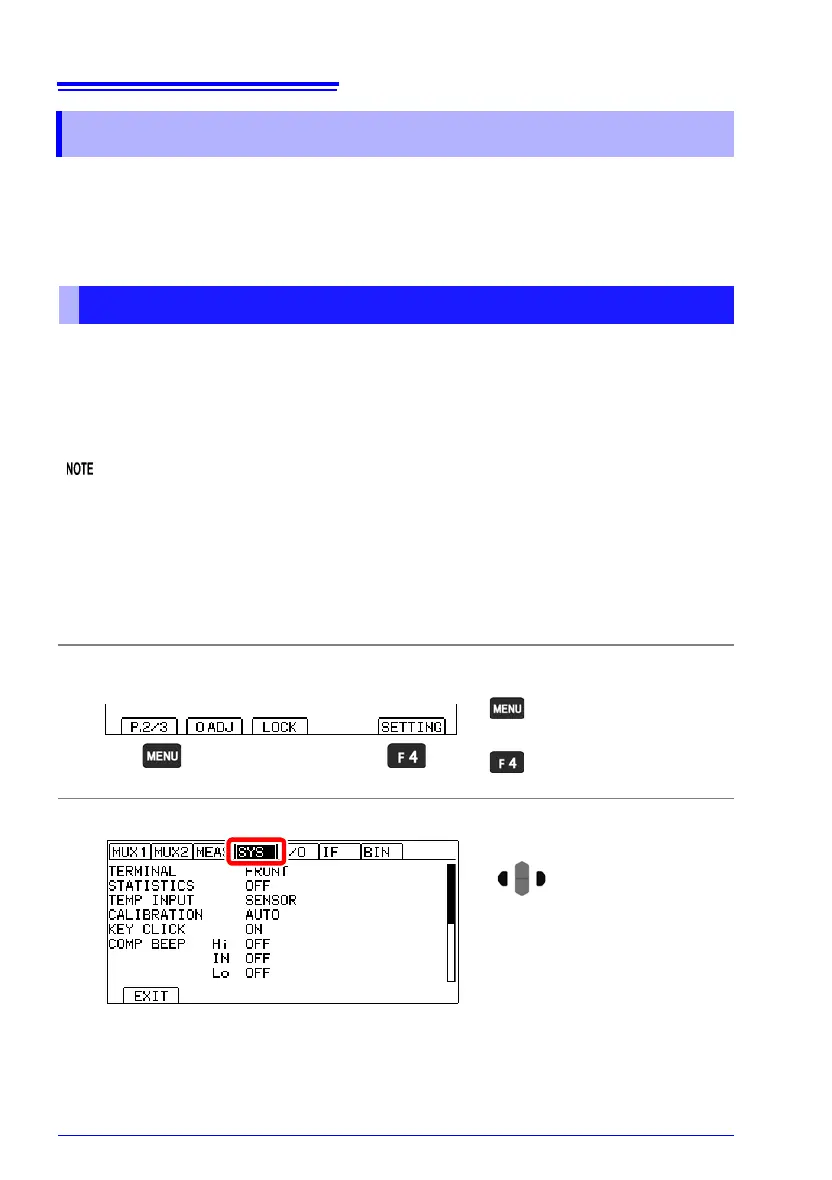

8.3 Multiplexer Settings
148
In addition to instrument key operation and communications commands, a sample applica-
tion software is available for configuring multiplexer settings.
The sample application software can be downloaded from the Hioki website (http://
www.hioki.com).
This section describes how to configure overall multiplexer operation. The measurement
terminal and scan function settings can also be configured from the Measurement screen.
See: "When changing the measurement terminal setting or scan function setting on the Measure-
ment screen" (p.151)
If you wish to initialize the multiplexer channel settings
See: "7.7 Initializing (Reset)"(p.134)
• It is not possible to switch to the multiplexer if measurement leads are connected to the
measurement terminals on the front of the instrument (ERR:60 will be displayed). To use
the multiplexer, be sure to disconnect any measurement leads.
• When switching from the multiplexer to the measurement terminals on the front of the
instrument, the channel measurement conditions are retained. However, when switching
from the measurement terminals on the front of the instrument to the multiplexer, the
channel measurement conditions are switched.
8.3 Multiplexer Settings
Configuring Multiplexer Settings
1
Open the Settings Screen.
2
Open the System Setting Screen.
The Settings screen
appears.
Switch the function menu
to P.2/3.
1
2
Move the cursor to the [SYS]
tab with the left and right cur-
sor keys.
To Next Page
