2.4 Installing the Multiplexer Unit
42
To use multiplexing capability, you must first install the Z3003 Multiplexer Unit.
Before connecting the Multiplexer Unit, read "Operating Precautions" (p.6) carefully.
Removing a Multiplexer Unit
After turning off the instrument’s main power switch and disconnecting all cords and
leads, remove the Multiplexer Unit by reversing the above procedure and then attach
the blank panel.
2.4 Installing the Multiplexer Unit
Required item: One Phillips-head screwdriver

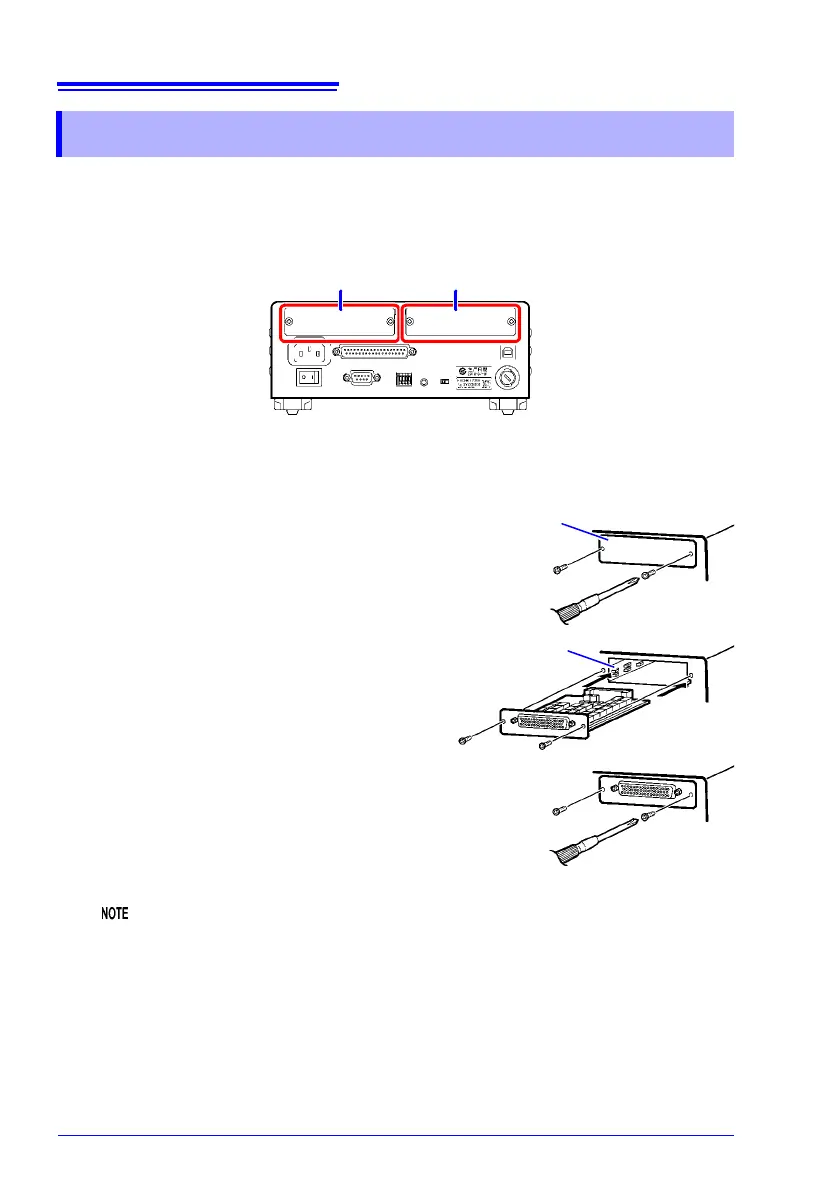

Installing a Multiplexer Unit
Rear panel
Blank panel
UNIT 1 UNIT 2
1 Turn off the instrument’s main power
switch and disconnect the cords and
leads.
2 Remove the two screws with a Phillips
head screwdriver and remove the blank
panel.
3 With attention to the orientation of the Mul-
tiplexer Unit, insert it firmly all the way in.
Insert the unit after aligning it with the
guide rail.
4 Using the Phillips screwdriver, tighten the
two Multiplexer Unit mounting screws.
Configure the settings so that they match
the unit number used.
See: "Customizing Channel Pin Allocation" (p.152)
When using only one Multiplexer Unit, it can be installed as either UNIT 1 or UNIT 2.
Guide rail
