10.1 External Input/Output Connector and Signals
176
Before switching, see "Before Switching between Current Sink (NPN) and Current Source
(PNP)" (p. 12).
The NPN/PNP switch allows you to change the type of programmable controller that is sup-
ported.
The instrument ships with the switch set to the NPN position.
See: "10.3 Internal Circuitry"(p.202)
10.1 External Input/Output Connector
and Signals
Switching between Current Sink (NPN) and Current Source (PNP)

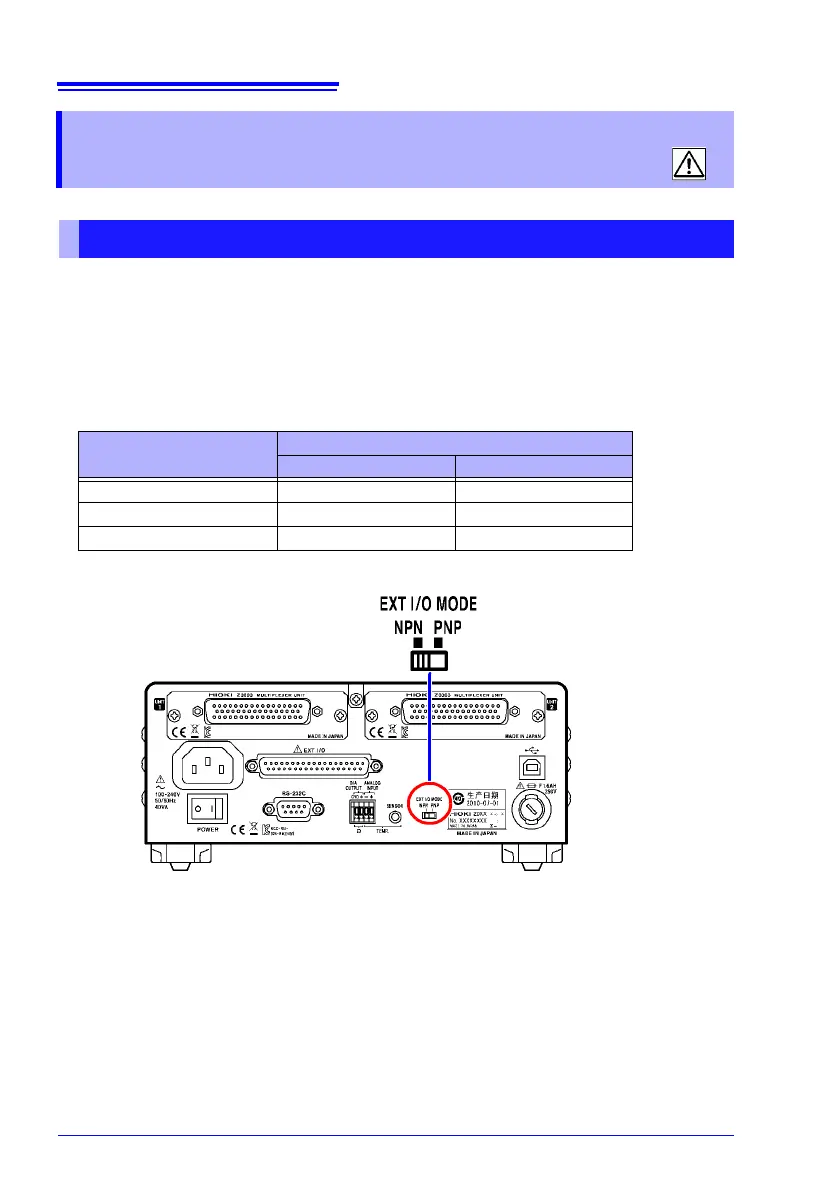

NPN/PNP switch setting
NPN PNP
RM3545 input circuit Supports sink output. Supports source output.
RM3545 output circuit Non-polar Non-polar
ISO_5V output +5 V output -5 V output
Left: Current sink (NPN)
Right: Current source (PNP)
