9.1 Connecting D/A Output
173
9
Before using the instrument, read "Before Using D/A Output" (p.14) carefully.
The Model RM3545, RM3545-01 and RM3545-02 are capable of generating D/A output for
resistance measured values. By connecting D/A output to a logger or other device, it is pos-
sible to easily record variations in resistance values.

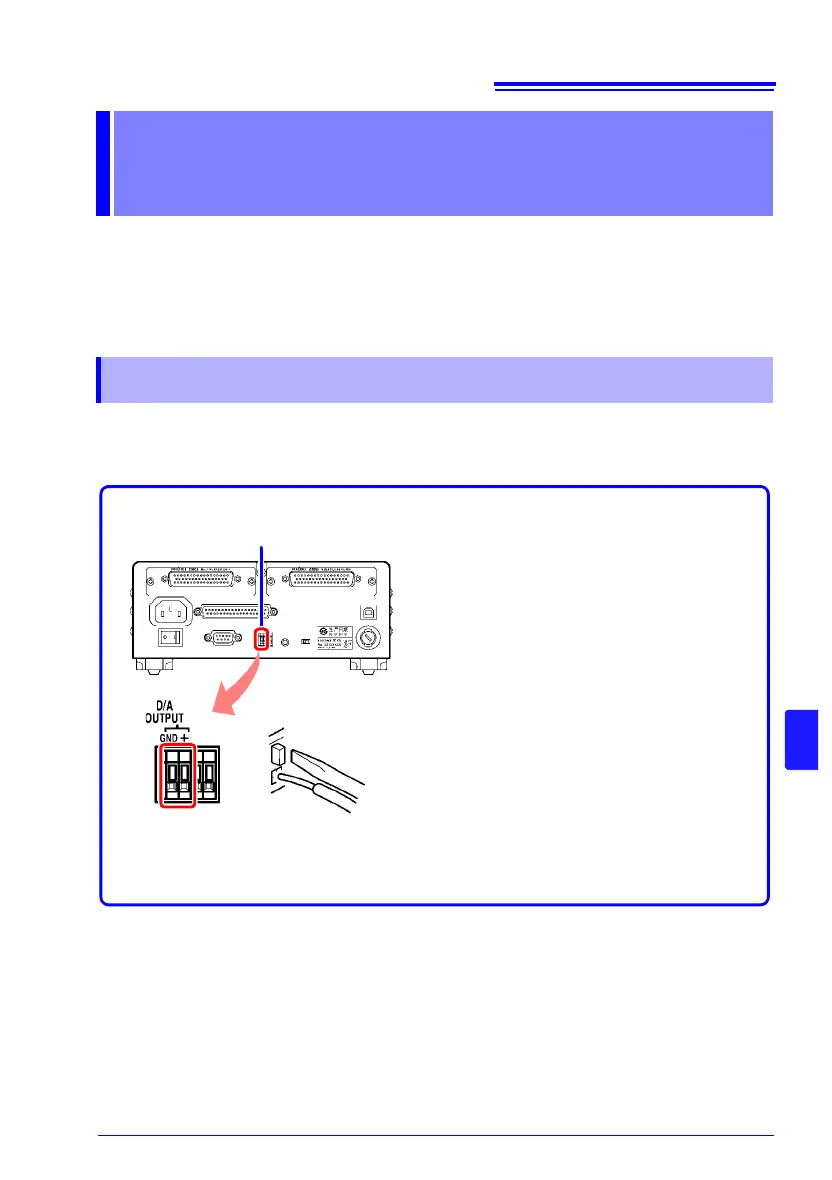

This section describes how to connect cables to the D/A OUTPUT terminal block on the
instrument's rear panel.
D/A Output Chapter 9
9.1 Connecting D/A Output
Recommended
wire type
: Single line: AWG22 (0.65 mm diameter)
Twisted wire: AWG22 (0.32 mm
2
)
Diameter of search wire: 0.12 mm or more
Compatible wire
types
: Single line: AWG28 (0.32 mm diameter) to AWG22 (0.65 mm diameter)
Twisted wire: AWG28 (0.08 mm
2
) to AWG22 (0.32 mm
2
) stranded conductor
Diameter of search wire: 0.12 mm or more
Standard bare
wire length
:8 mm
1
Push down on the button with a
flat-head screwdriver or similar
tool.
2
Insert the wire into the connection
port while holding the button down.
3
Release the button to lock the wire
in place. A similar procedure can
be used to remove the lead.
D/A OUTPUT terminal block
Rear Panel
