8.7 Example Connections and Settings

172

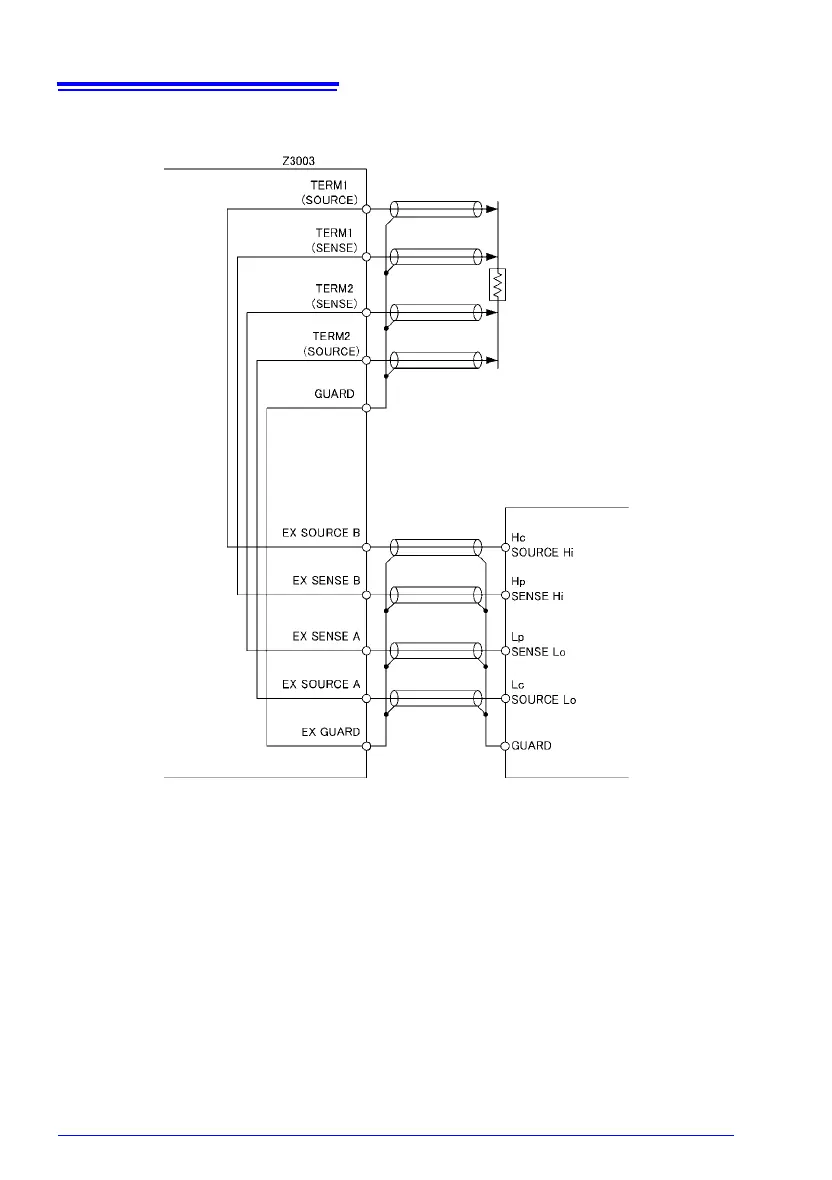

Connecting an external device

You can switch channels via the front panel, communications, or EXT I/O when using an

external device, too.

LCR Meter

Battery Tester
