Appendix 16 Measurement Leads (Options)

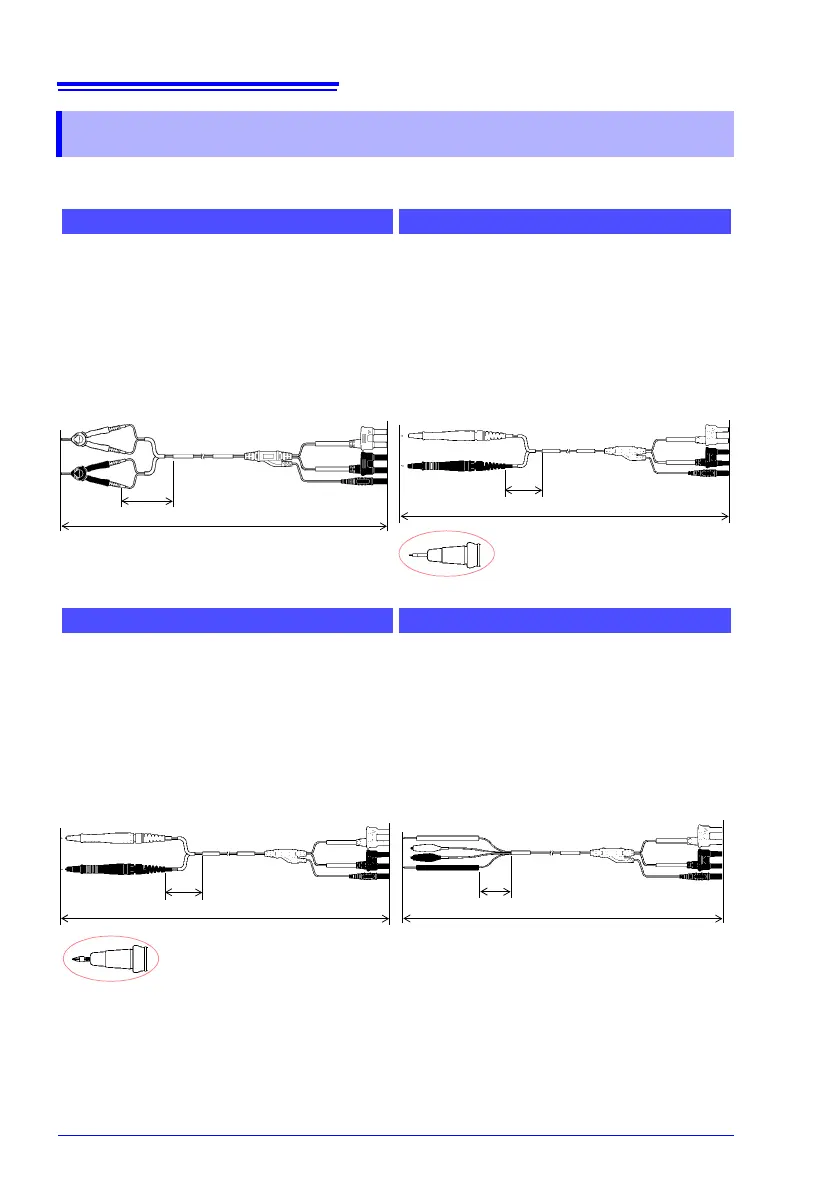

Model L2101 Clip Type Lead Model L2102 Pin Type Lead
These leads have clip tips. Four-terminal measure-
ments are provided just by clipping on to the measure-
ment target.
Overall length: approx. 1500 mm
Bifurcation-to-lead length: approx. 250 mm
Clippable diameter: φ 0.3 to 5.0 mm
Even on flat contact points that cannot be clipped to,
or on measurement targets with small contacts such
as relay terminals or connectors, four-terminal mea-
surements are available by just pressing.
Overall length: approx. 1500 mm
Bifurcation-to-lead length: approx. 250 mm
Pin base: φ 1.8 mm
Initial contact pressure: approx. 70 g
Total compression pressure: approx. 100 g
(Stroke: approx. 2 mm)
Model L2103 Pin Type Lead Model L2104 4-Terminal Lead
The tips have a four-terminal design developed for
floating-foot testing of ICs mounted on boards. Resis-
tance can be correctly measured even with small
measurement targets.
Overall length: approx. 1500 mm
Bifurcation-to-lead length: approx. 250 mm
Between pin bases: 0.2 mm
Initial contact pressure: approx. 60 g
Total compression pressure: approx. 140 g
(Stroke: approx. 1.3 mm)
The SOURCE leads of this four-terminal lead set have
covered alligator clips, and the SENSE leads have
standard test probes. Use for measuring printed cir-
cuit board pattern resistance, and where SOURCE
and SENSE leads need to be connected separately.
Overall length: approx. 1500 mm
Bifurcation-to-lead length: approx. 280 mm
1500 mm
250 mm
Tip pin *
* Tip pins can be exchanged ahead.
250 mm
1500 mm
Tip pin *
* Tip pins can be exchanged ahead.
250 mm
1500 mm
280 mm
1500 mm
