10.4 External I/O Settings

211

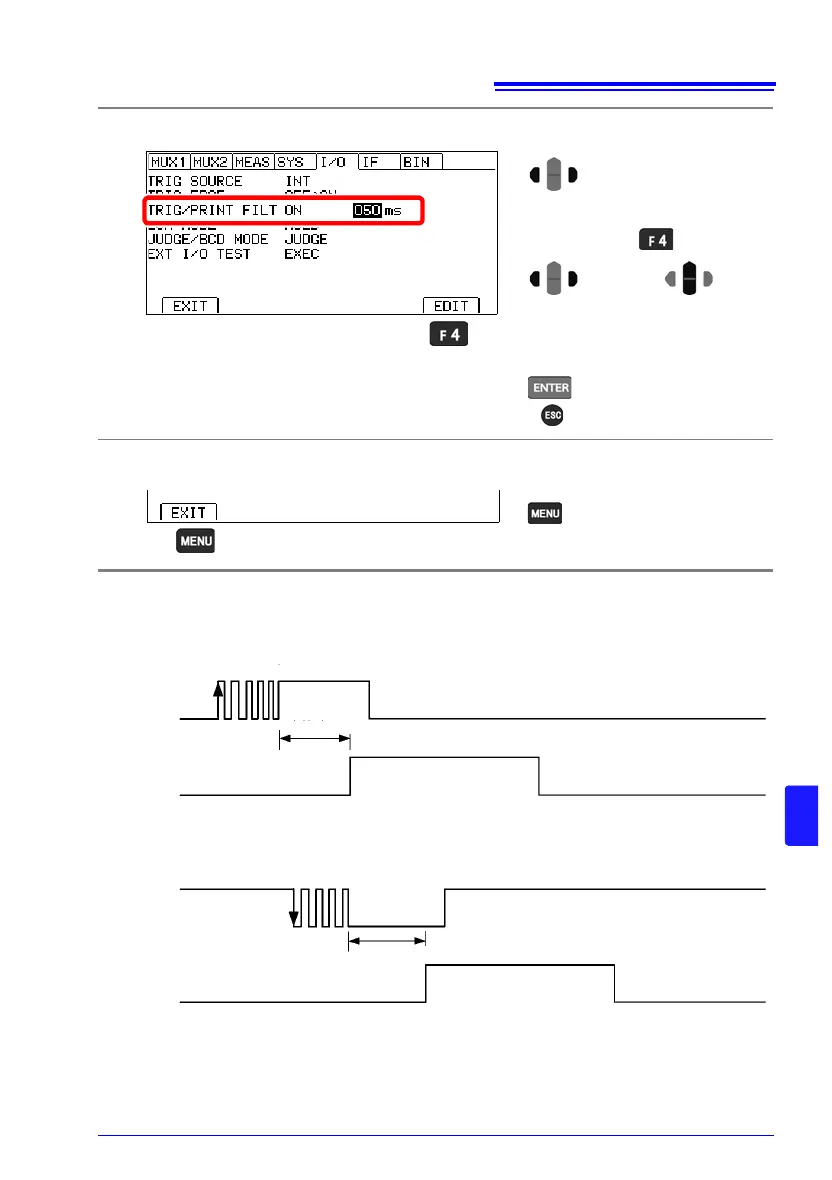

Filter function (TRIG signal example)

• Using the ON edge

• Using the OFF edge

Hold the input signal until the response time elapses.

Set the response time.

Return to the Measurement screen.

Setting range: 50 ms to 500 ms (default: 50 ms)

Move the cursor to the setting you

wish to configure. Make the value

editable with the key.

Move the cursor to the digit you

wish to set with the left and right

cursor keys. Change the value

with the up and down cursor keys.

Change

values.

Move among

digits.

( Cancel)

Return to the

Measurement screen.

Measurement

processing

Measurement

TRIG

ON OFF

Response time

(Chatter)

Measurement

TRIG

ON OFF

(Chatter)

Measurement

processing

Response time
