Messages displayed in the communications monitor and their meanings
If an error occurs during command execution, the following information will be displayed:
• Command error (improper command, improper argument format, etc.)
> #CMD ERROR
• Argument out of range
> #PARAM ERROR
• Execution error
> #EXE ERROR
The approximately location of the error will also be shown.
• Argument error (-1 is out of range)
> :RES:RANG -1
> # ^ PARAM ERROR
• Spelling error (for example, using "RENGE" instead of "RANGE")
> :RES:RENGE 100
> # ^ CMD ERROR
• If an illegal character code is received, the character code will be shown in hexadecimal
notation enclosed in angle brackets (< >). For example, the character 0xFF would be dis-
played as <FF>, and 0x00 would be displayed as <00>. If all you see is hexadecimal
characters like this when using the RS-232C interface, check the communications condi-
tions or try using a lower communications speed.
• When using the RS-232C interface
If an RS-232C error occurs, the following information will be displayed:
Overrun error (signal lost)........... #Overrun Error
Break signal received.................. #Break Error
Parity error .................................. #Parity Error
Framing error .............................. #Framing Error
If any of these messages is displayed, check the communications conditions or try using
a lower communications speed.
• The error position may shift, for example when sending a series of consecutive com-
mands.
5

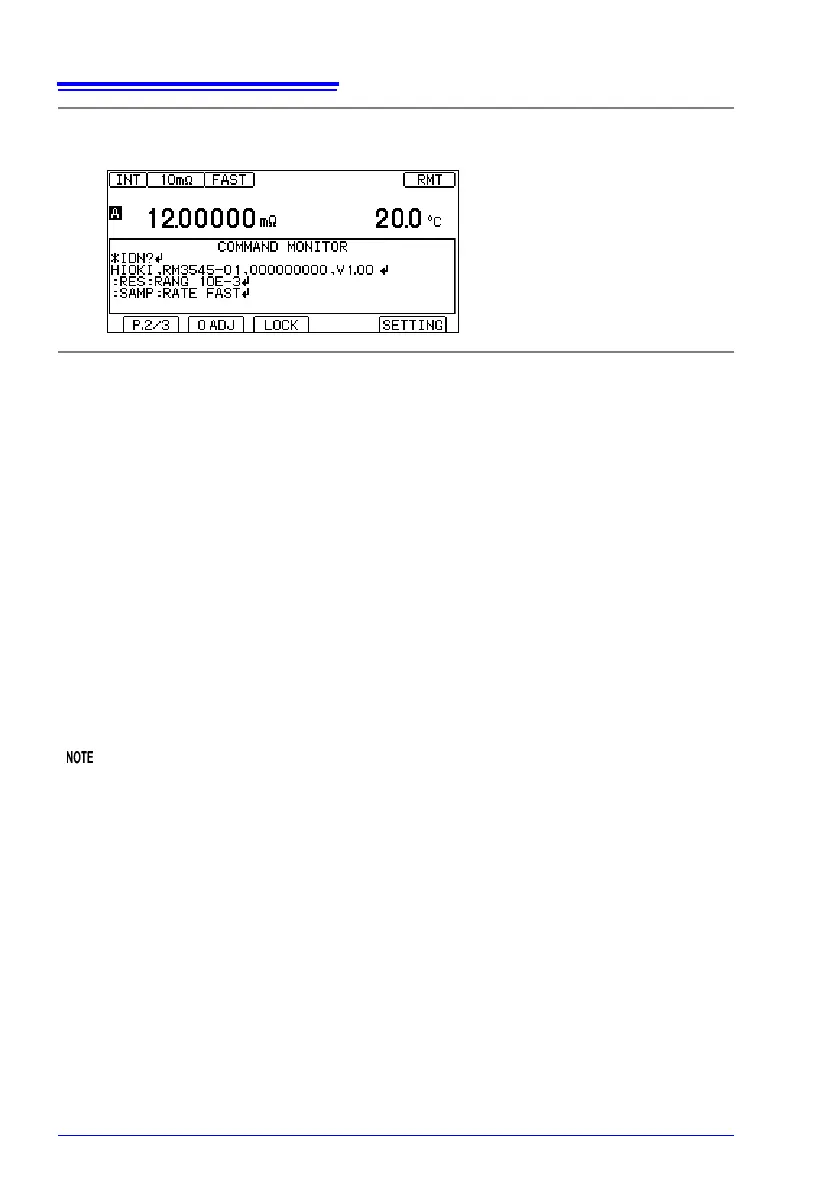

Command and queries will be displayed on the bottom of the Measurement
screen.
