M4 × 6 mm
Rack Mounting Plate (JIS, EIA)
Spacers
M4 × 10 mm
M3 × 6 mm
1 Remove the feed from the bot-
tom of the instrument, and the
screws from the sides (four
near the front).

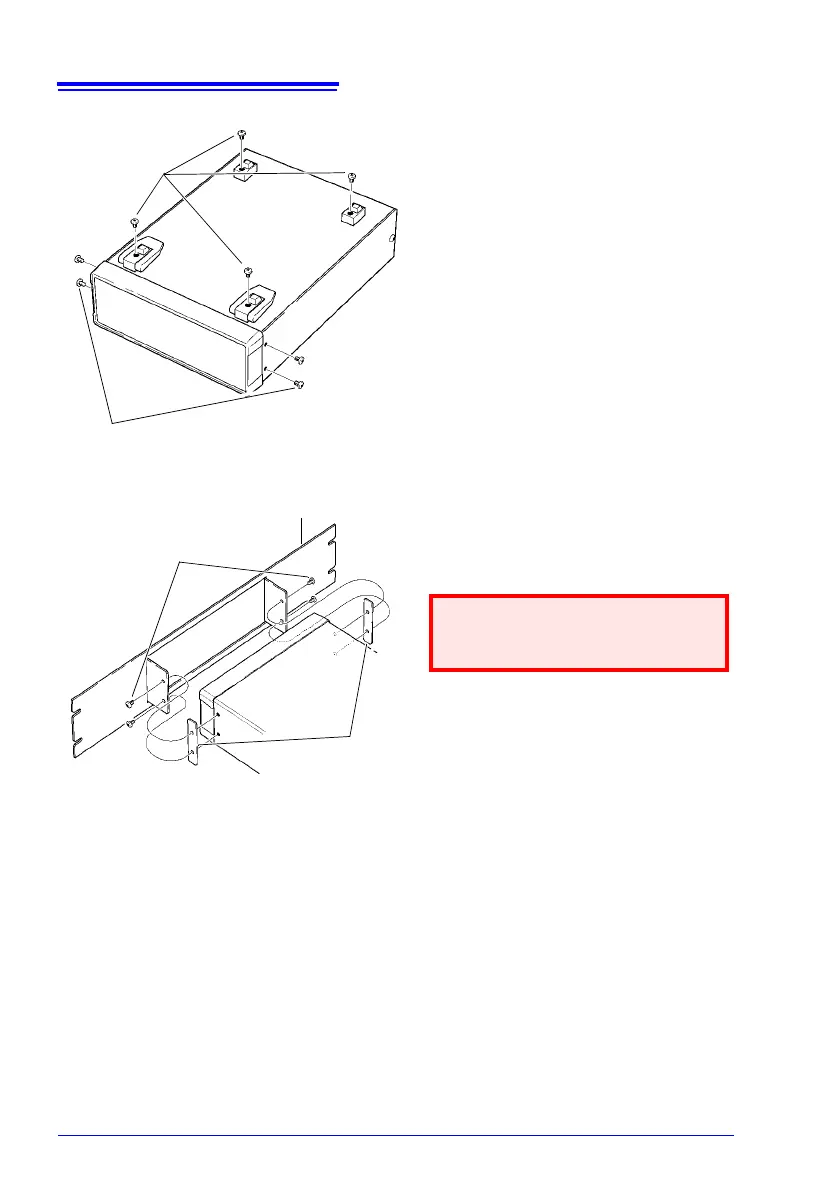

2 Installing the spacers on both
sides of the instrument, affix
the Rack Mounting Plate with
the M4 × 10 mm screws.
When installing into the rack, reinforce
the installation with a commercially
available support stand.
