Replacing a Fan Module 6–3
Hitachi Unified Storage Hardware Service Guide
- Green READY LED is ON. This LED might blink quickly for up to 60
minutes or 80-to-180 minutes if the DBW is connected to the CBL
before the LED goes ON.
- Red ALARM LED and orange WARNING LED are OFF.
9. In Hitachi Storage Navigator Modular 2, check the recovery after
replacing components (see Checking recovery after replacing
components on page 3-14).
10.Attach the front bezel (see Removing and replacing the front bezel on
page 3-10).

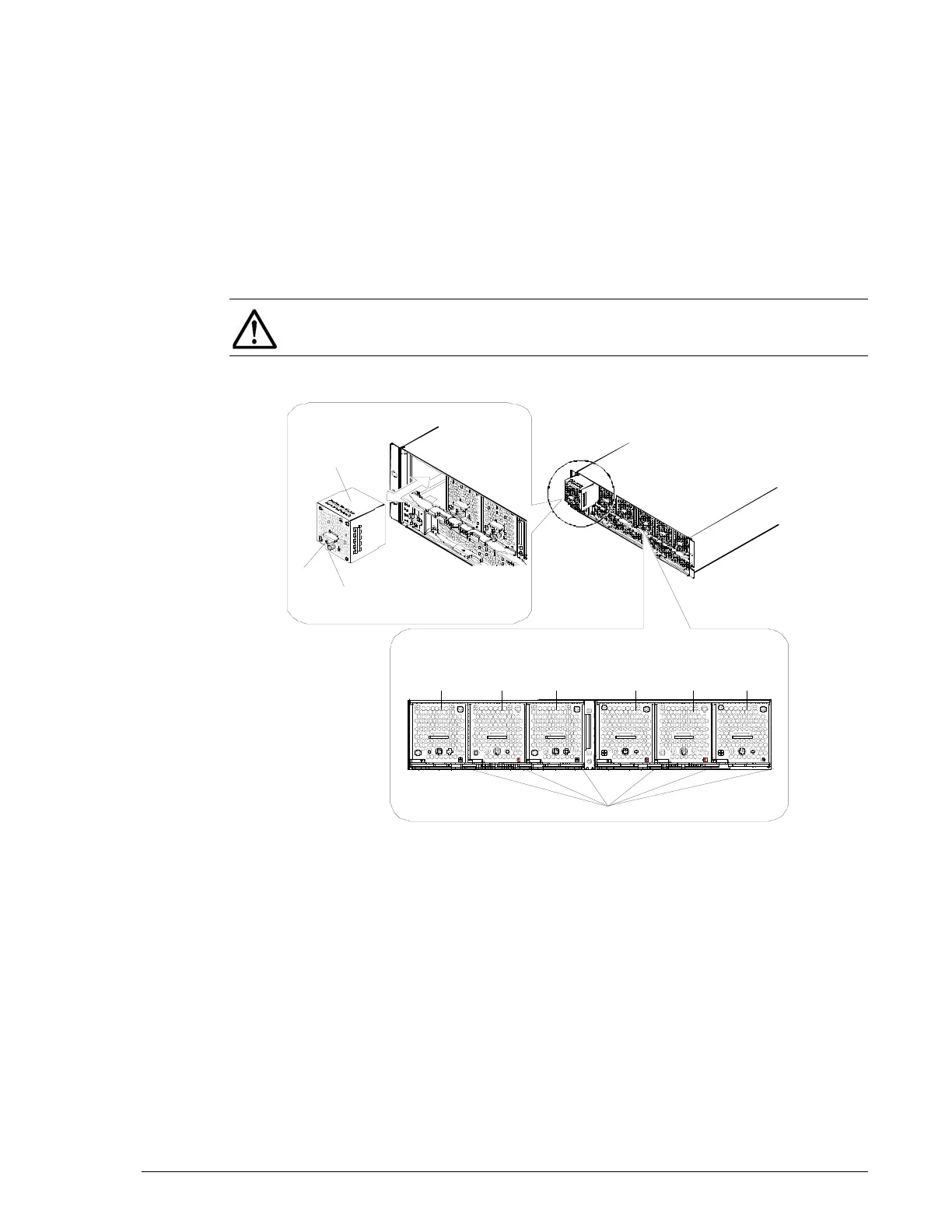

Figure 6-1: Replacing a fan module
NOTE: If the LED in Figure 6-1 is blinking slowly, visit the HDS Support
Portal at portal.hds.com.
Latch
Screw
blue
Fan 1-
Fan Module Number and the ALM LED (red)
ALM LED (red)
Fan
1-2
Fan
1-1
Fan
1-0
Fan
0-2
Fan
0-1
Fan
0-0
To Next Page
