2–28 Hardware description
Hitachi Unified Storage Hardware Service Guide
DBX Drive Box

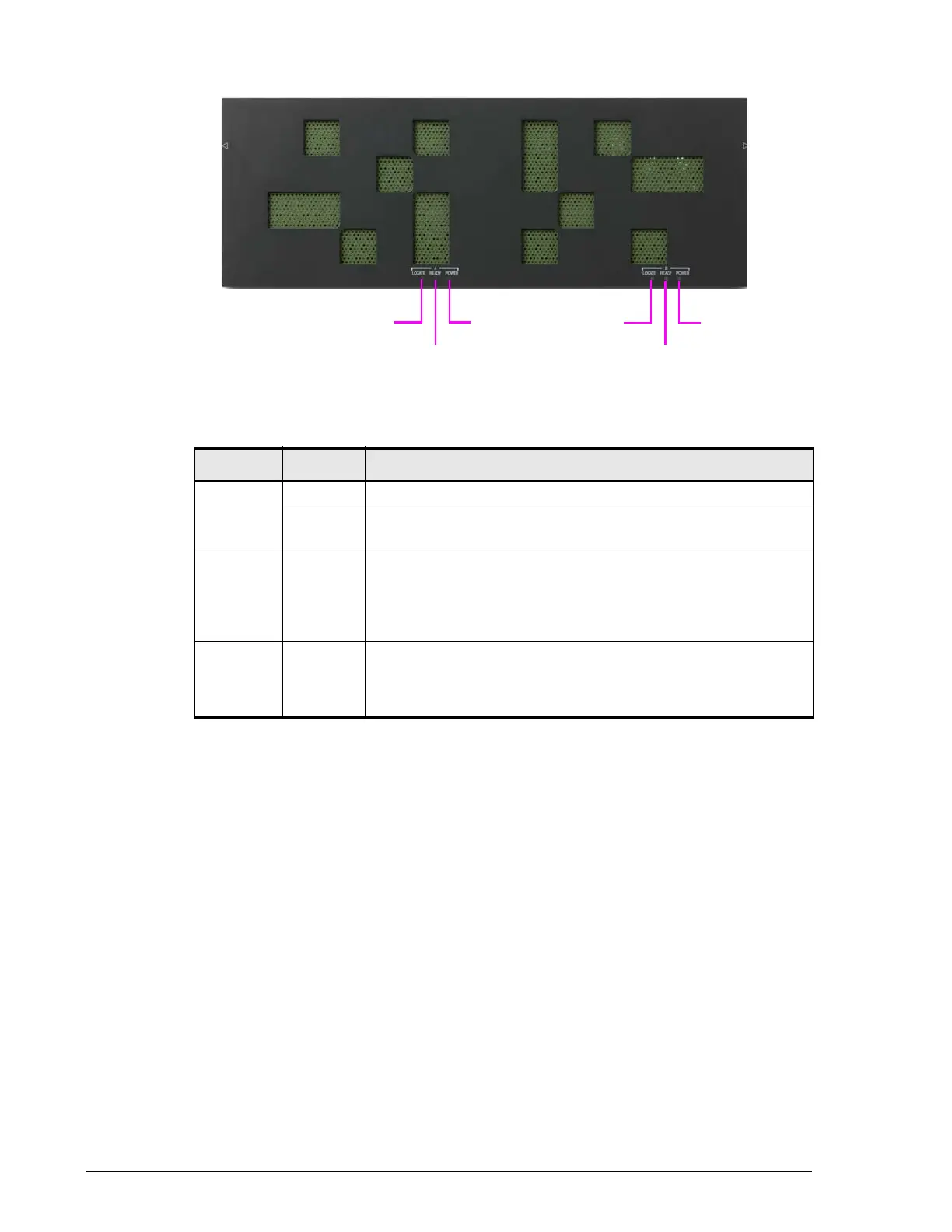

Table 2-4: Front panel LEDs (DBX Drive Box)
LED Color Description
POWER Green ON = power is being supplied to the storage system.
Orange ON = power cables are attached to the rear of the Drive Box
and power is being supplied.
READY Green ON = normal operation. Storage system is operational.
Fast blink = internal processing. Storage system is
operational.
Slow blink = offline download processing completed
(displayed during maintenance).
LOCATE Orange ON = nonfatal error. Storage system can remain operating.
Visit the HDS Support Portal at portal.hds.com. If adding a
chassis with power ON, LED indicates the addition of the
chassis (this is not an error).
LOCATE POWER
READY
LOCATE POWER
READY
