Hitachi IJ UX Service Manual

6-13

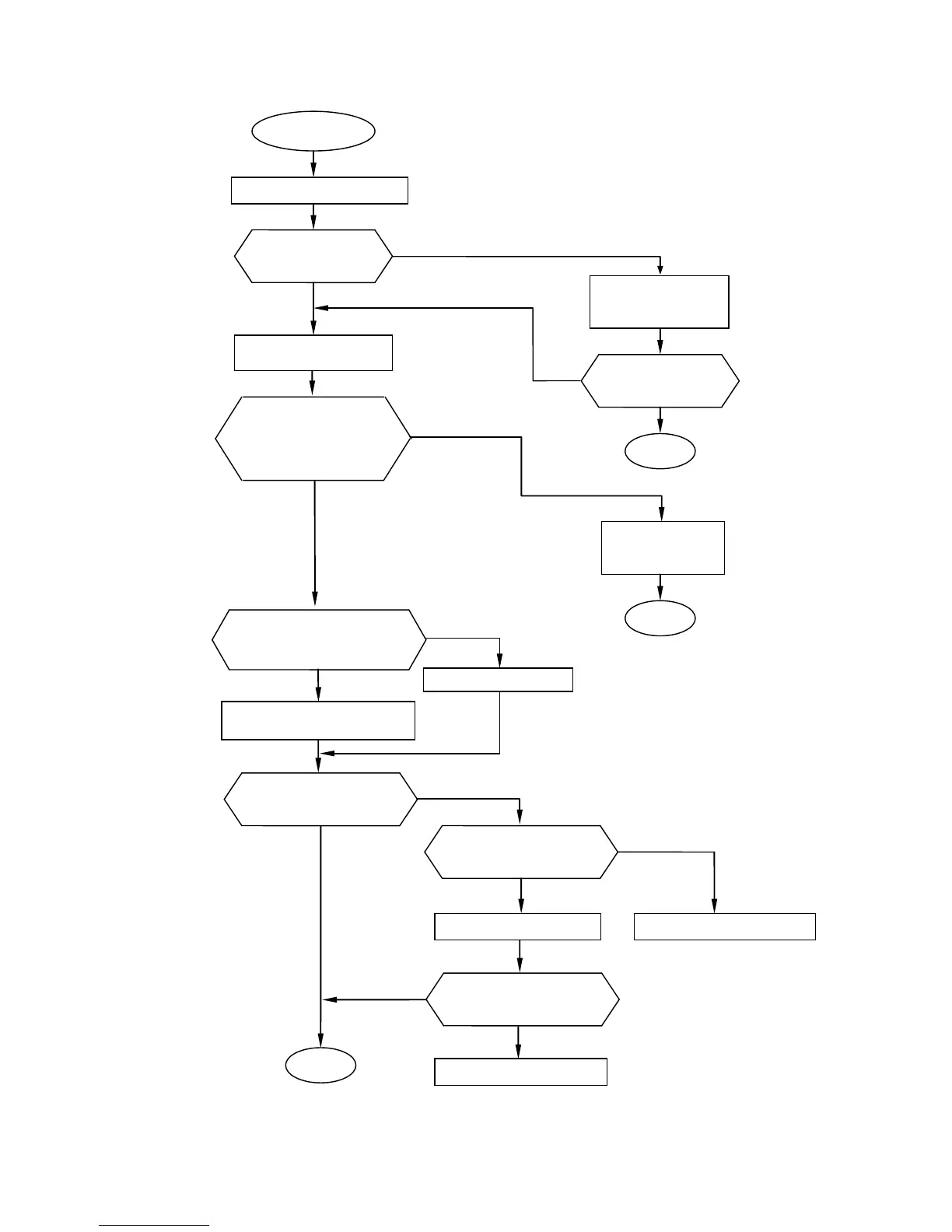

6.2.9 Makeup Low Fault
Makeup Low Fault
Open the maintenance cover.
Is the makeup
reservoir charged
with the makeup?
Uncap the makeup
reservoir and add the
makeup.
Can the abnormality
be cleared by pressing
the
Clear key?
END
Is the sensor connector
disconnected?
(See the overall wiring
diagram.)
Turn OFF the power.
Yes
No
No
Yes
Yes
Connect the sensor
connector.
No
Is the
fault cleared by
power
-on reset?
Is the connection harness
conducting?
Replace the connection harness.
END
Yes
Yes
No
OK
NG
END
Replace the sensor.
Replace the EZJ126 board.
Is the
fault cleared by
power
-on reset?
No
Disconnect the connectors, then
reconnect them (3 connectors).
Connect the connector.
Is the EZJ126 board CN13 or
EZJ132 board CN1, 3 connector
disconnected?
Yes
No
