Hitachi IJ UX Service Manual

2-7

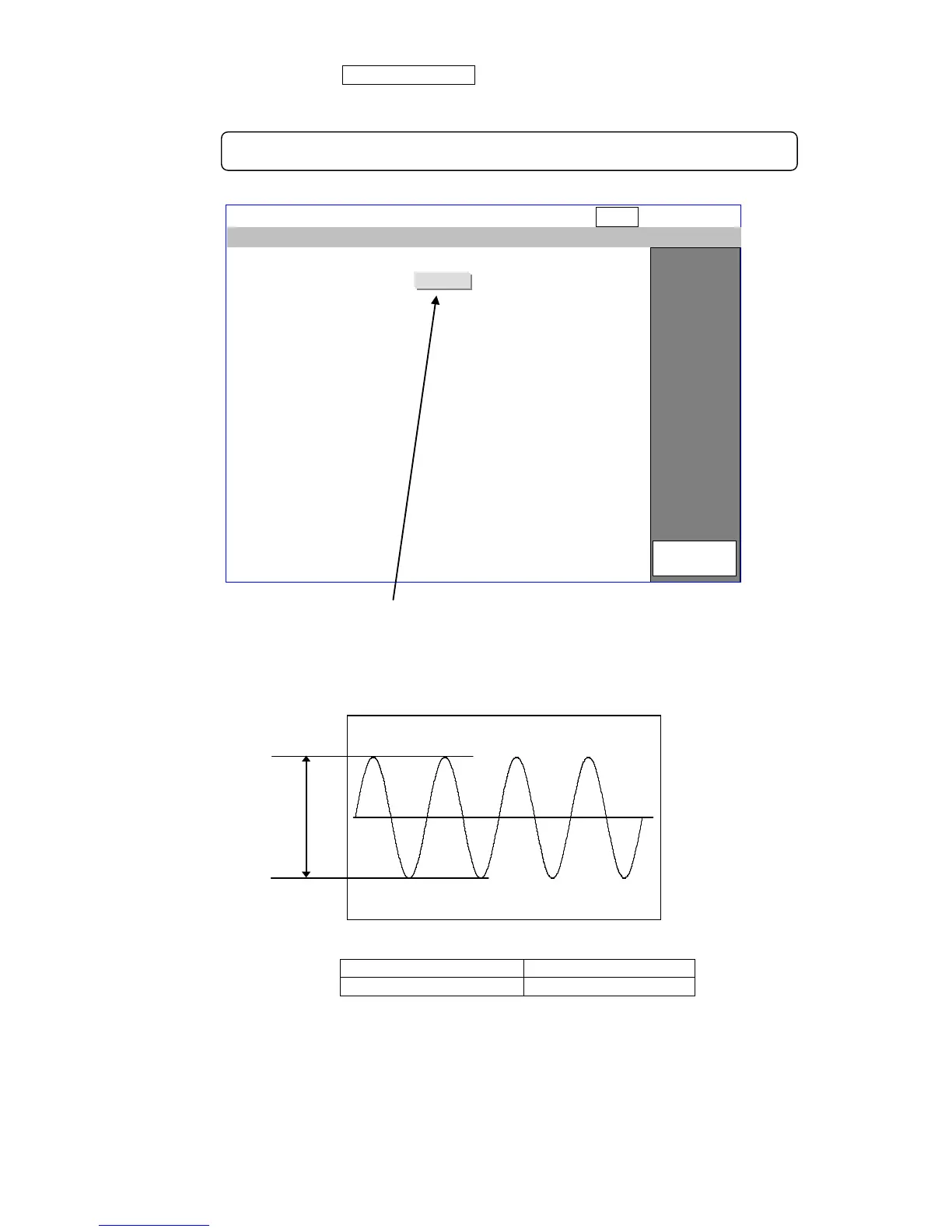

When you press Manual adjustment and manually input the excitation voltage adjustment
value, the excitation voltage value is increased or decreased. Check the waveform of TP14
(excitation voltage) on the EZJ125 board with an oscilloscope.
Model
Vp-p
UX
360±20V
Vp-p
[Waveform of excitation voltage]
For the position of the board and test pins, refer to “3.3.6 EZJ125 board.”
Adjust./oper. checkout
<Excitation adjustment>
0752
Excitation voltage value
(0-2047)
Proc. status: In progress
[Stop ]
2015.07.07 12:45
Com=0
Back
Excitation voltage value
