3-7

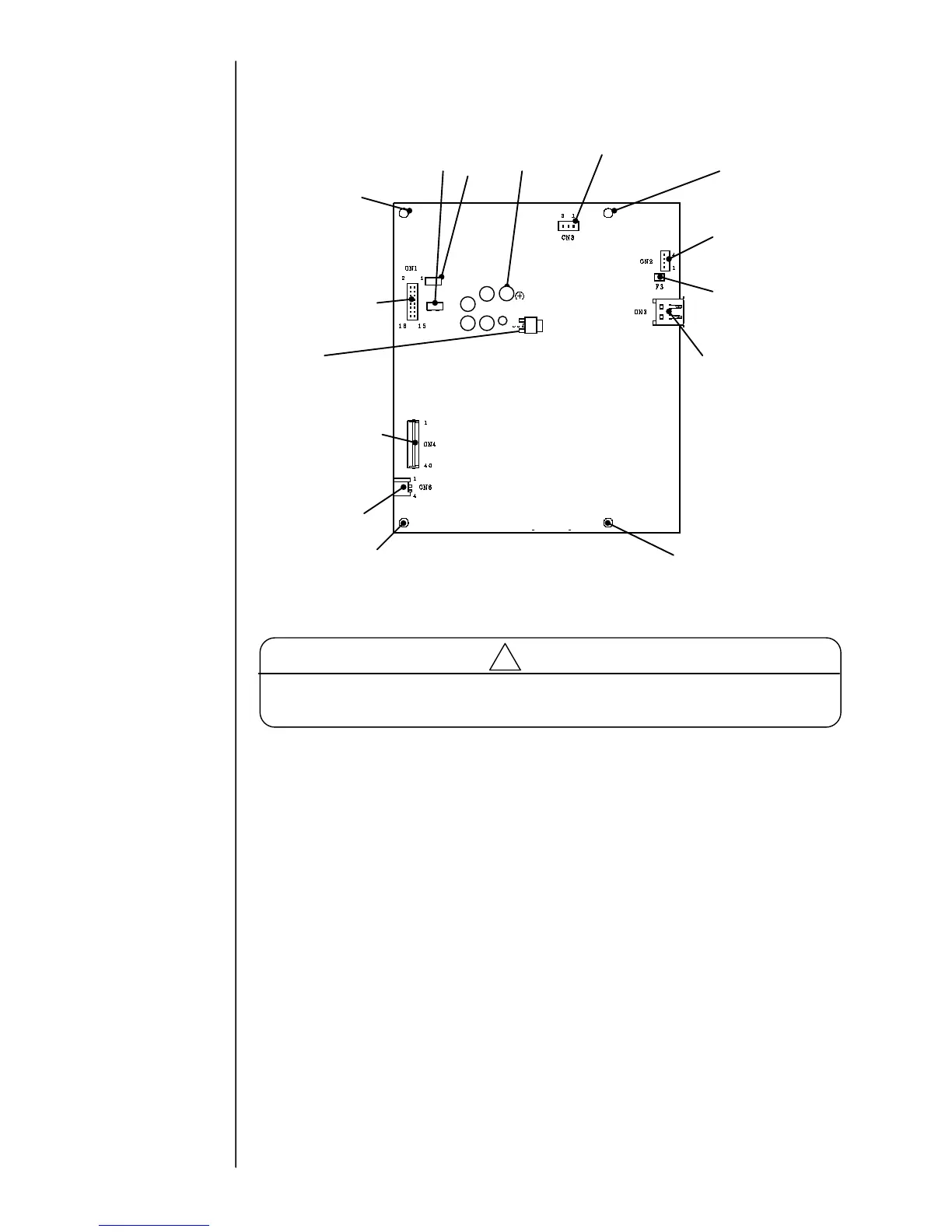

[EZJ128 board external views]
CN6
Connector for
touch panel
CN4
Connector for LCD
harness
Connector for
EZJ126 board
CN8
Connector for battery
connection
Fixing screw
(3 locations)
Without
Fixing screw
Fixing screw
(3 locations)
Fixing screw
(3 locations)
Connector for
USB
F1
F2
IC34
F3
Connector for
EZJ 114 board
C55+
- Please use the Rescue soft when IJP does not normally stand up after exchanging
substrates.Refer to 2.21 Rescue soft for detail
