Hitachi UX Twin Nozzle Service Manual

3-24

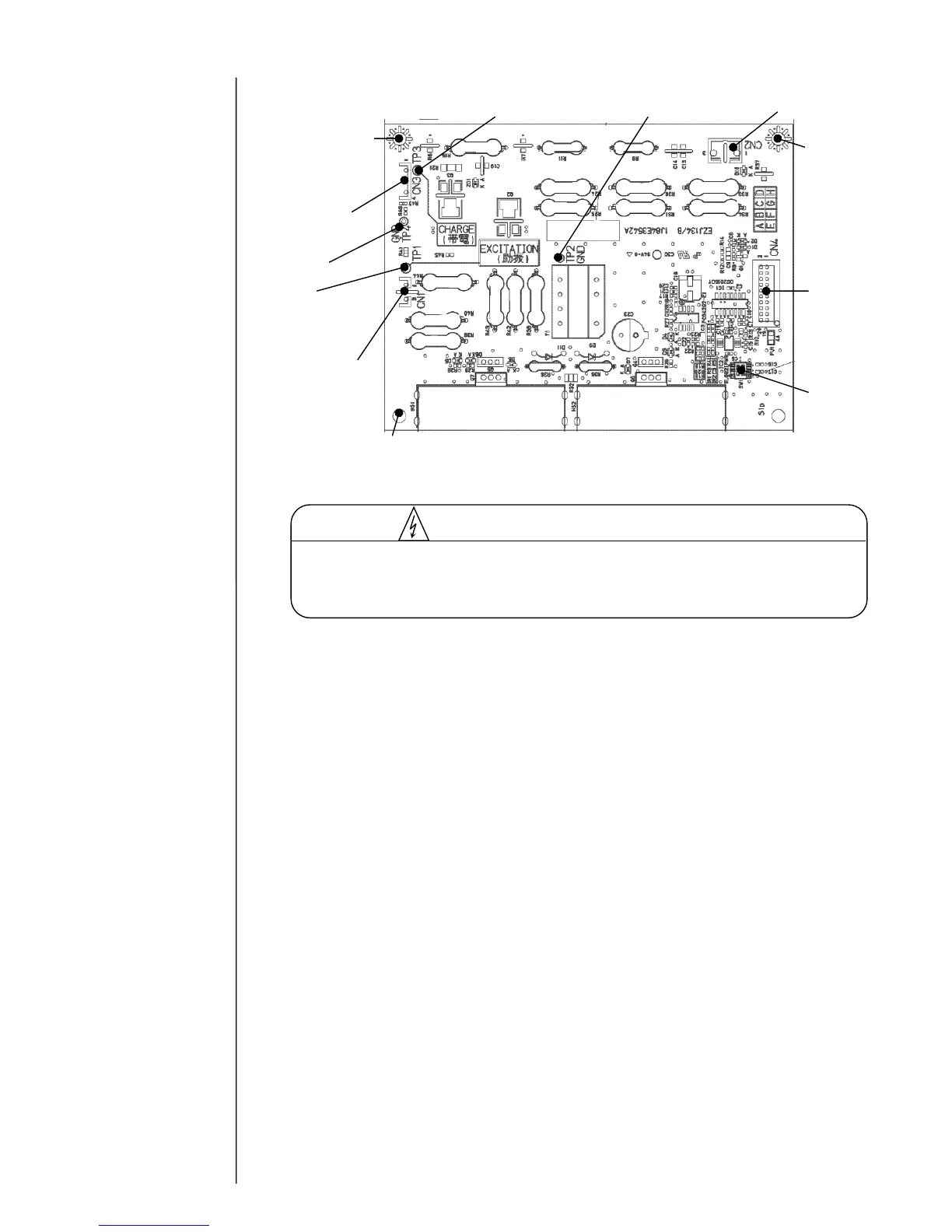

[EZJ134 board external view]
Fixing screw
(2 locations)
Fixing screw
(2 locations)
SW1
CN3
CN1
CN2
CN4
TP3: Charging signal
TP4: GND
Spacer for fixing EZJ134 board
TP1:
Excitation signal
TP2: GND
EZJ134 board have areas where the high voltage is applied. In order to avoid an
electric shock, be sure to turn OFF the power and wait for at least 10 seconds at
least before accessing the EZJ134 board.
Caution against an electric shock
With respect to the
excitation adjustment,
refer to “2.3.1 Excitation
adjustment”.
With respect to the
excitation adjustment,
refer to “2.3.1 Excitation
adjustment”.
With respect to the auto
phase gain adjustment,
refer to “2.3.4 Auto phase
gain adjustment”.
