3-44

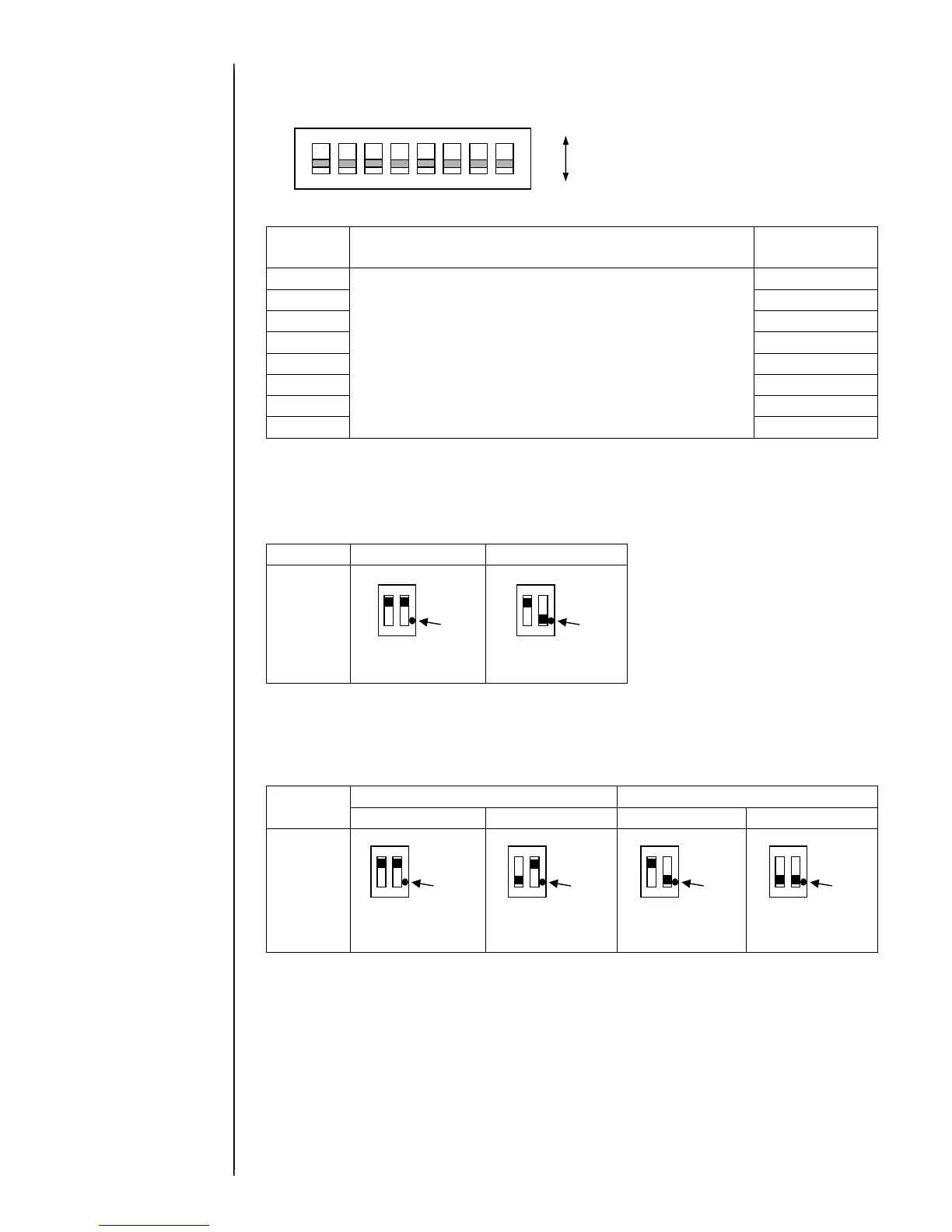

[SW6]
SW6
Description
Factory default
setting
Bit 1
Reserved ( Set to OFF)
OFF
Bit 2
OFF
Bit 3
OFF
Bit 4
OFF
Bit 5
OFF
Bit 6
OFF
Bit 7
OFF
Bit 8
OFF
[SW7]
Switches NPN/PNP settings of output signals.
(Factory default setting is that the both bits are set upward.)
NPN I/F
PNP I/F
SW7
Both of bits are put
upward.
Set the right bit to
down ward.
[SW8]
Switches NPN/PNP settings of Data message number signals and Input signals, and Internal/External
power supply. (Factory default setting is both bits are set upward.)
When supplying power from IJ Printer
When using external power supply
NPN I/F
PNP I/F
NPN I/F
PNP I/F
SW8
Both bits are set
upward
Set the left bit
downward
Set the right bit
downward.
Both bits are set
downward
OFF
ON
ON
4
3
2
1
8
7
6
5
Mark
Mark
Mark
Mark
Mark
Mark
