4-21

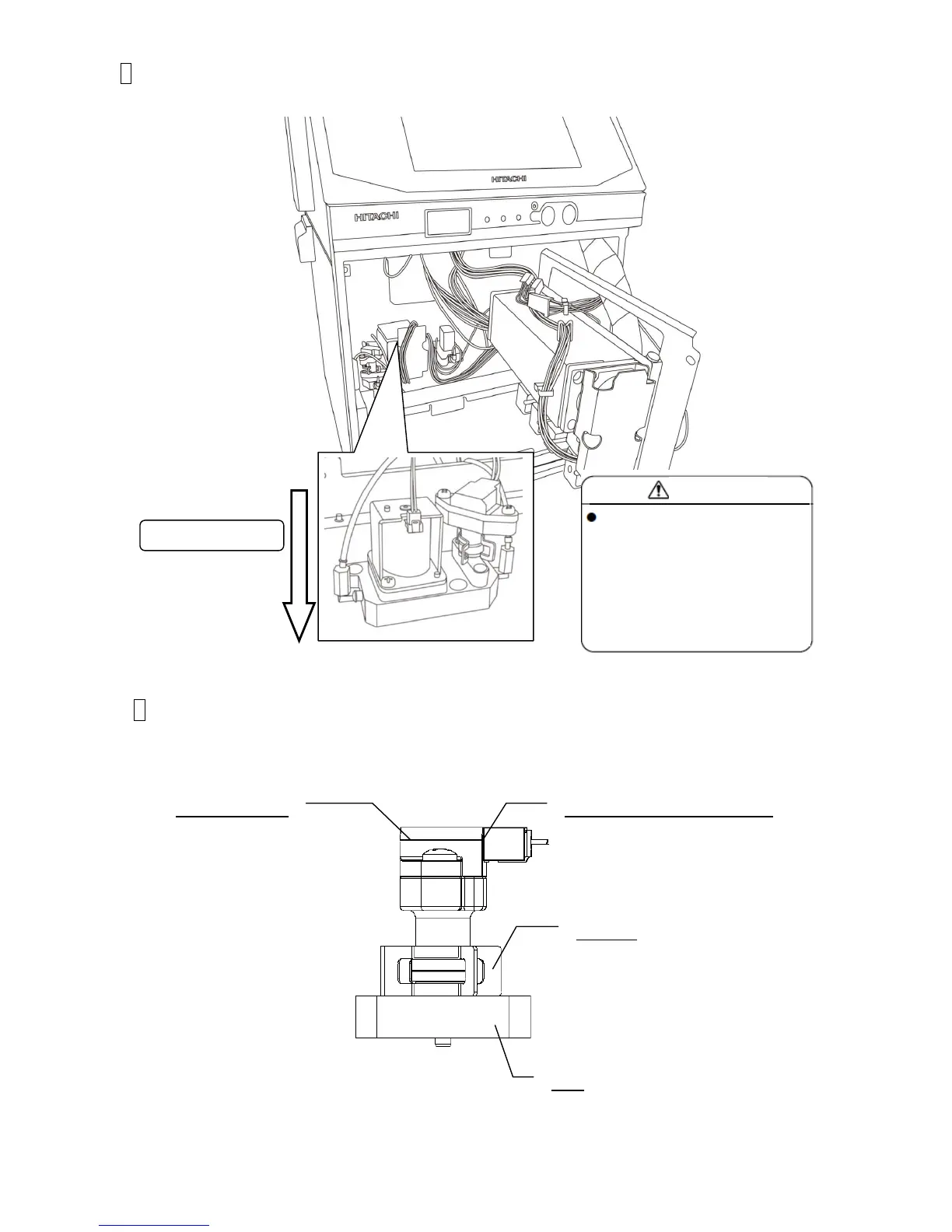

6 Pull the Solenoid valve base forward.
7 Remove the fastener fastening the pressure sensor to the joint and remove
the pressure sensor by pulling.
[Caution] Put wiping paper under the Pressure sensor for ink dripping.
Pull forward
If the ink was accidentally
spilled, quickly wipe it off
with wiping paper, etc. In
addition, do not close the
maintenance cover until you
confirm that the wiped part
completely get dry.
CAUTION
Pressure sensor
Fastener
Joint
Connector for pressure sensor
