2-33

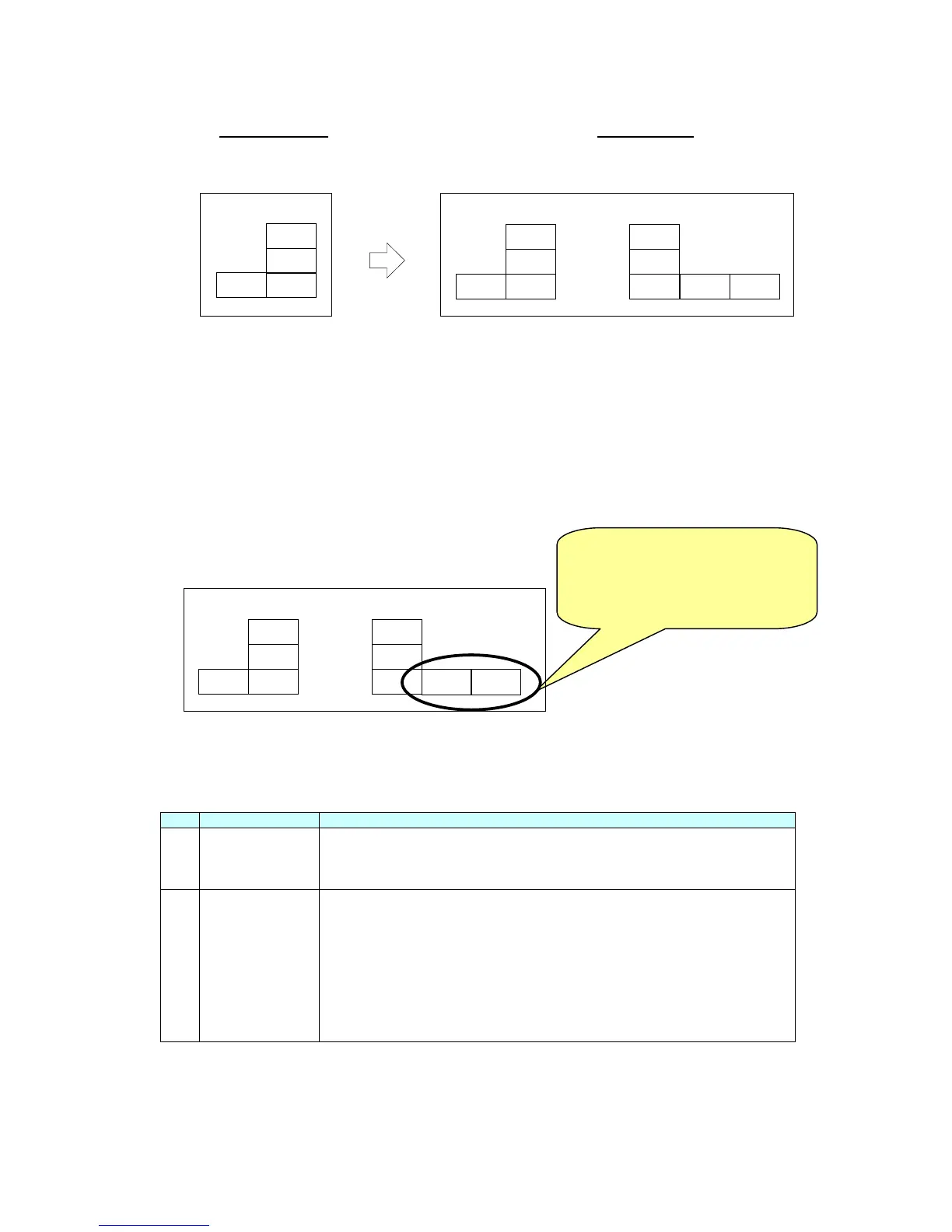

[Example 2]
The print items are “NOT” added in units of “Column” up to the numbers specified. (24 items are set.)
Before Change After Change
1Line/1Column + 3Lines/1Column 1Line/1Column + 3Lines/7Columns + 1Line/2Columns
(4 items) (24 items)
[Note] The extra items are added as two Columns
of a single line, 5x8 (5x7) character size.
(3) Cautions
Functional Cautions
Using this new function, the print item(s) is/are added as extra print item(s) at the last column(s) of
single-line, 5x8 (5x7) character size. When the print start signal is inputted, the error “Blank Print
Items” will occur. If that happens, input space in the last print item(s).
When this function is used, please study adequately before printing, the print item format, such as the
number of lines, character size.
Performance Cautions
When this function is used, please pay attention to those described below, the influence to
performance.
No.
Function Name
Influence To Performance
1
Online
Transmission
Since the print data is re-structured by adding the items, if the print start signal
is input right after the data transfer, the error Print data changeover in
progress will occur. Please input the print start signal 400ms after the data is
transferred.
2
Print Data Recall
Transmission
The response performance will change whether this function is used or not.
However, if the number of registered print items which are recalled is more than
the number set by Add items in online mode, its response performance will be
the same as that when Disable is set.
[When this function is used.]
- Data recall less than or equal to 24 items: 15ms
- Data recall more than or equal to 25 items: 40ms
[When this function is NOT used.]
- Data recall less than or equal to 24 items: 5ms
- Data recall more than or equal to 25 items: 30ms
5x5
5x8
7x10
Column2
Column1
12x16
5x5
5x8
7x10
5x5
5x8
7x10
Column2
Column8
8 列目
5x8
Column9
Column10
12x16
5x8
Column1
The error “Blank Print Items” will
occur when there is no character
input at the last print item(s).
5x8
7x10
5x8
7x10
Column2
Column8
Column1
5x8
Column9
12x16
5x8
5x8
5x8
Column10
