LIGHTS/METERS/SWITCHES
20-17

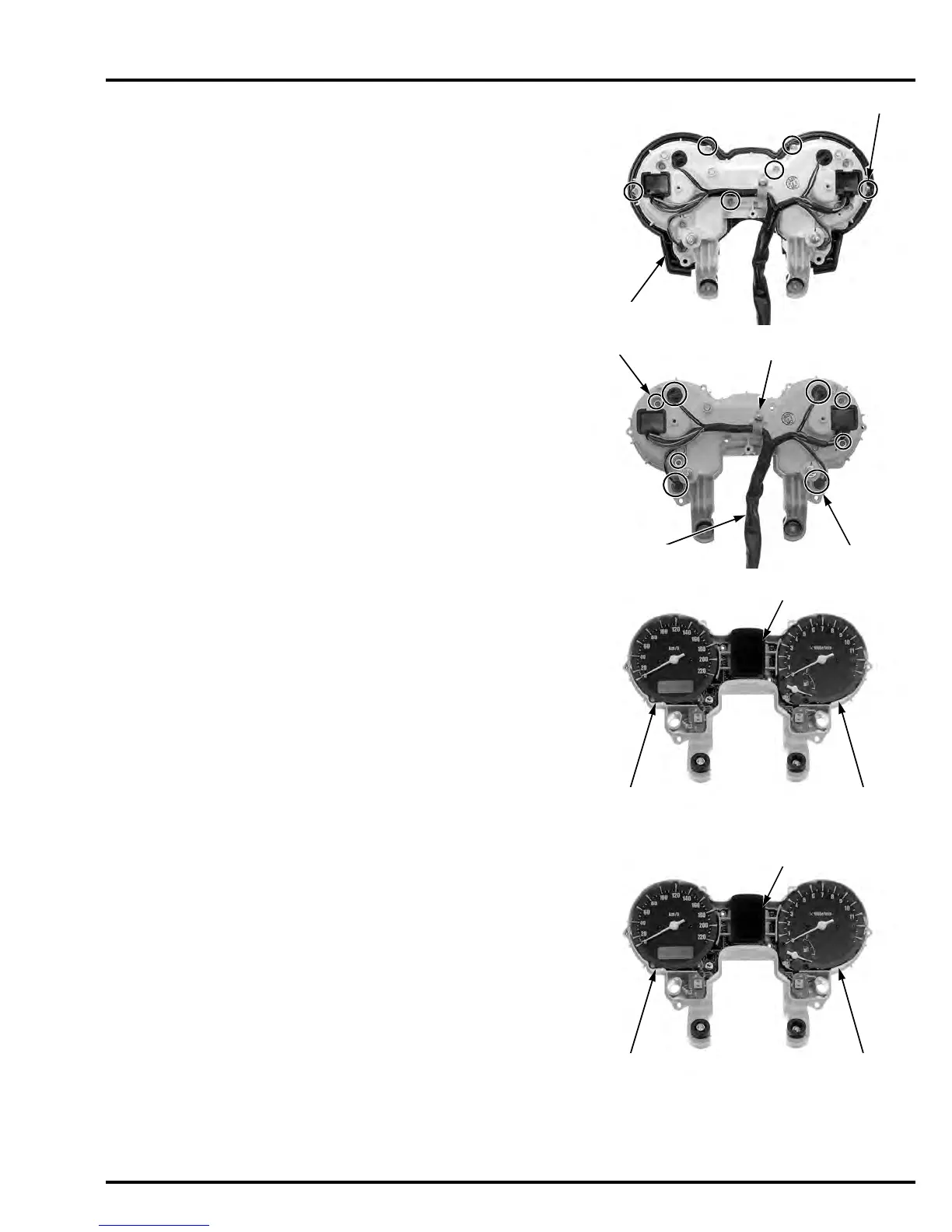

Remove the screws and combination meter front
cover.
Remove the meter screws.
Remove the bulb sockets.
Remove the screw, clamp and combination meter
sub-harness.
Remove the speedometer, tachometer and indicator
plate.
ASSEMBLY
Install the speedometer, tachometer and indicator
plate to the combination meter case.
SCREWS
SCREW/CLAMP
BULB SOCKETS
SUB-HARNESS
SPEEDOMETER
TACHOMETER
INDICATOR PLATE
SPEEDOMETER
TACHOMETER
INDICATOR PLATE
