Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 95

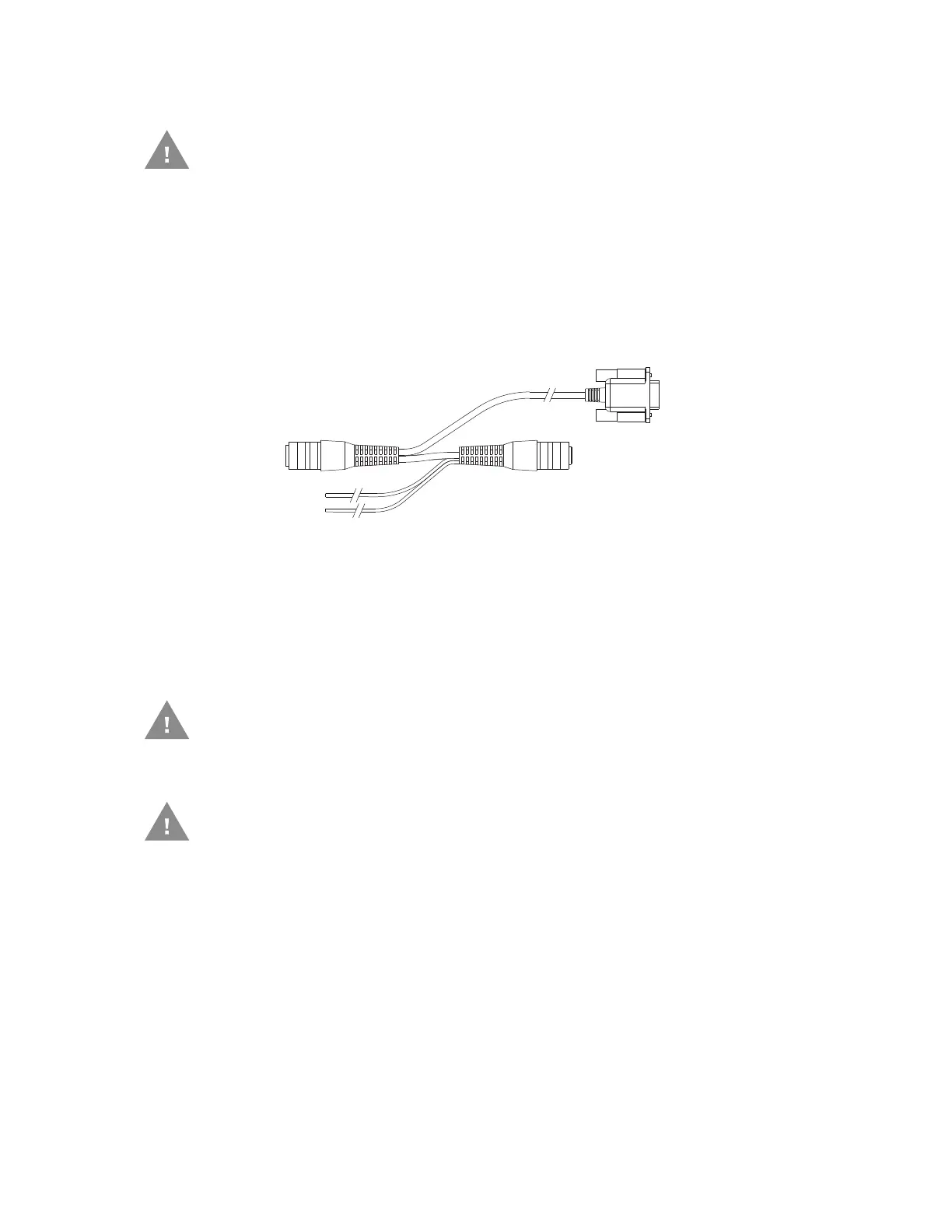

Thor VX8 / Thor VX9 Adapter Cable
An adapter cable is available to attach the Thor VM3 to a vehicle previously equipped
with a VX8/VX9 DC power cable. The adapter cable has a 6-pin connector to match the
VX8/XVX9 power supply cable on one end and a 6-pin connector to match the Thor
VM3 on the other end. The cable also has bare wires for ground and ignition sense con-
nection plus a D9 cable to connect to a COM port on the Thor VM3 dock to provide a
screen blanking signal. This section assumes the VX8/VX9 power cable is properly con-
nected to vehicle power. Refer to the VX8 or VX9 Vehicle Mounting Reference Guide for
details.
Connect to Thor VX8 / VX9 Power Cable
1. Connect the adapter cable to the Thor VX8/VX9 power cable by aligning the connec-
tor pins to the power connector; push down on the watertight connector and twist it
to fasten securely.
2. Connect the green wire to vehicle ground:
The green wire must be connected to the vehicle chassis ground.
The green wire is connected to the vehicle chassis ground, which can also be battery
negative.
3. If ignition control will be used, connect the blue wire to an ignition switched circuit
(less than 1mA over input voltage range). If ignition control is not used, the blue wire
can be left disconnected,
4. If the VX8/VX9 cable is connected to a screen blanking box or switch, connect the
D9 connector to a COM port on the dock.
5. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, when
routing this cable it should be protected from physical damage and from surfaces
that might exceed this temperature. Cable should be protected from physical
damage from moving parts. Do not expose the cable to chemicals or oil that may
These instructions for use with VM1D Standard Dock and VM3D Enhanced
Dock only. This cable is not used for the VMXD Enhanced Dock
To COM port
on Dock
To Power Connector
on Dock
To VX8/VX9
Power Cable
To Ground and
Ignition Sense
Caution: For battery powered vehicles:
Caution: For internal combustion engine powered vehicles:

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
