94 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide

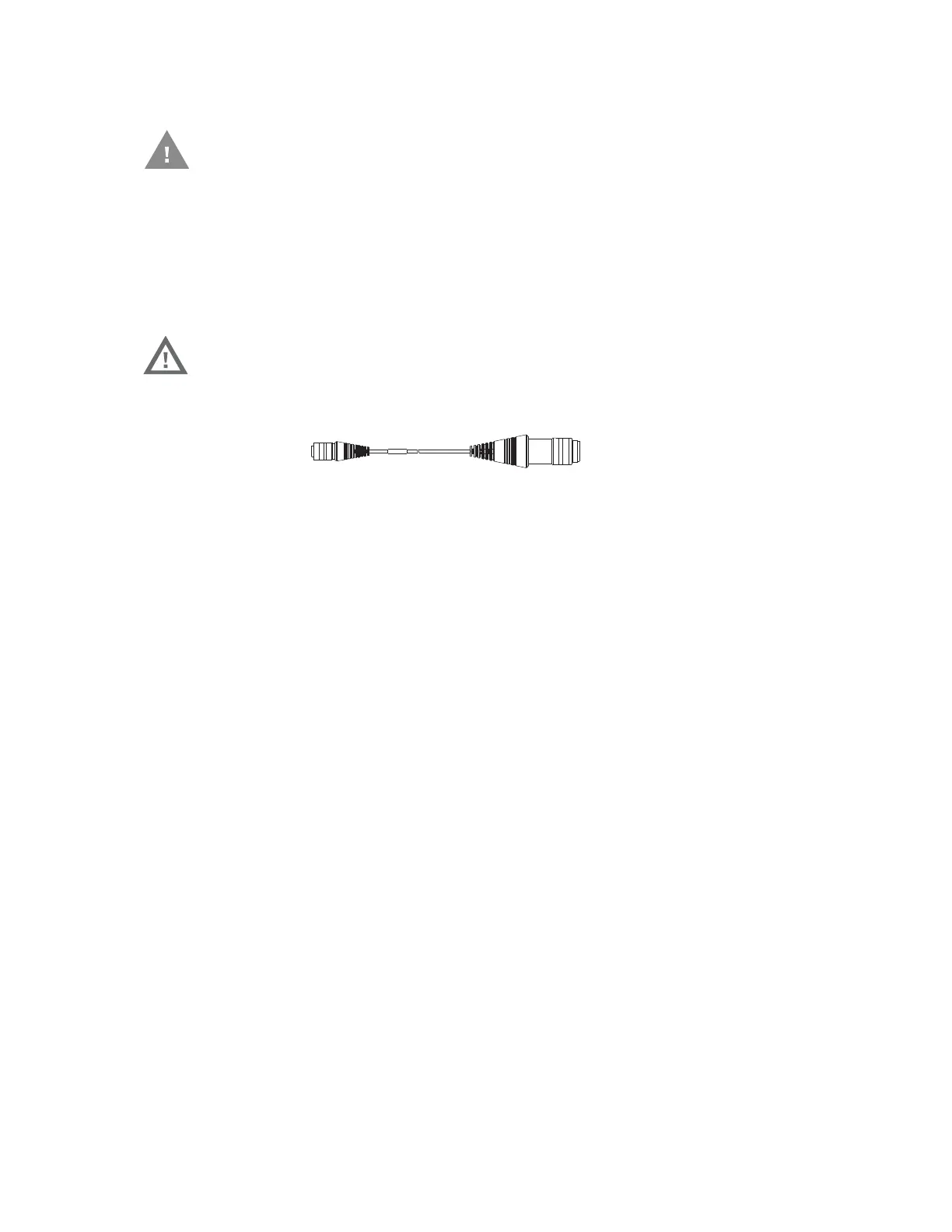

VX6 / VX7 Adapter Cable
An adapter cable is available to attach the Thor VM3 to a vehicle previously equipped
with a VX6/VX7 DC power cable. The adapter cable has a 5-pin connector to match with
the VX6/VX7 power supply cable on one end and a 6-pin connector to match to the Thor
VM3 on the other end. This section assumes the VX6/VX7 power cable is properly con-
nected to vehicle power. Refer to the VX6 or VX7 Vehicle Mounting Reference Guide for
details.
When this adapter cable is used, there is no provision for an ignition switch input.
Therefore the vehicle ignition monitoring function is not available when using this
cable.
Connect to VX6 / VX7 Power Cable
1. Connect the adapter cable to the Thor VM3 power cable by aligning the connector
pins to the power connector; push down on the watertight connector and twist it to
fasten securely.
2. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, routing
this cable it should be protected from physical damage and from surfaces that
might exceed this temperature. Cable should be protected from physical damage
from moving parts. Do not expose the cable to chemicals or oil that may cause the
wiring insulation to deteriorate. Always route the cable so that it does not interfere
with safe operation and maintenance of the vehicle.
3. Provide mechanical support for the cable by securing it to the vehicle structure at
approximately one foot intervals, taking care not to over tighten and pinch
conductors or penetrate outer cable jacket.
4. Connect the watertight connector end of the power cable to the Thor VM3 dock
power connector by aligning the connector pins to the power connector; push down
on the watertight connector and twist it to fasten securely.
5. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps.
6. Place Thor VM3 in the Dock
7. If using the Screen Blanking feature, install the screen blanking box or switch.
8. Press the Power Switch on the back of the Thor VM3 dock.
9. Press the Power Button on the front of the Thor VM3 to turn on the Thor VM3.
These instructions are for use with VM1D Standard Dock and VM3D
Enhanced Dock only.
Warning: Because the VX6/VX7 supports 10-60 VDC power input, verify
input voltages before using this adapter cable with an existing
VX6 or VX7 power connection installation.
To Power Connector on Dock
To VX6/VX7 Power Supply Cable

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
