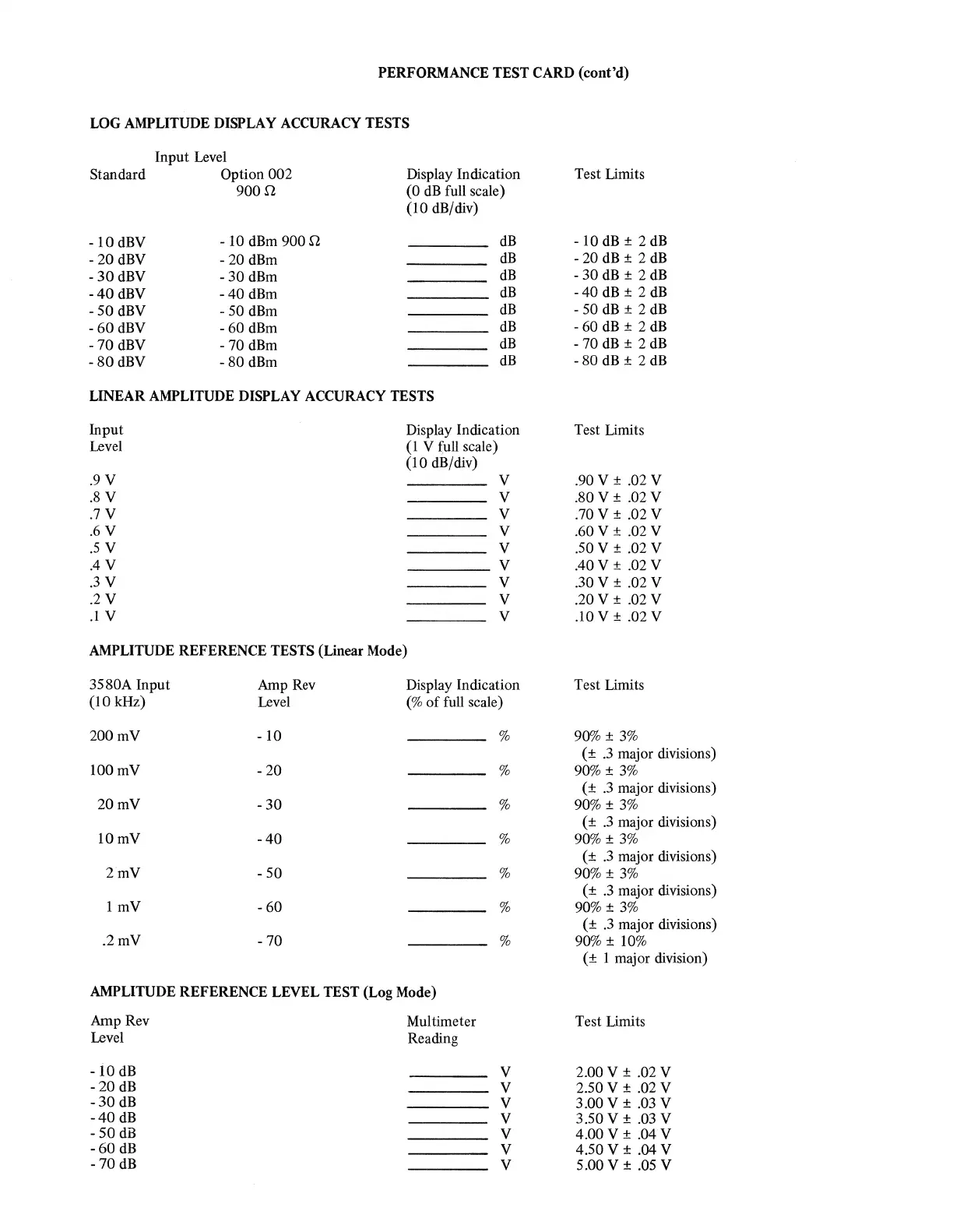

PERFORMANCE TEST CARD (cont'd)
LOG AMPLITUDE DISPLAY ACCURACY TESTS
Input Level
Standard Option 002
900.Q
-10 dBV
- IO dBm 900.Q
-20 dBV - 20 dBm
-30 dBV
-30 dBm
-40 dBV -40 dBm
-50 dBV
- 50 dBm
-60 dBV -60 dBm
-70 dBV
- 70 dBm
-80 dBV
-80 dBm
Display Indication
(0 dB full scale)
(IO dB/div)
dB
dB
dB
dB
dB
dB
dB
dB
LINEAR AMPLITUDE DISPLAY ACCURACY TESTS
Input
Display Indication
Level (1 V (ull scale)
(10 dB/div)
.9V
v
.8 v
v
.7V v
.6V
v
.5 v
v
.4 v
v
.3V
v
.2V
v
.Iv v
AMPLITUDE REFERENCE TESTS (Linear Mode)
3580A Input
Amp Rev Display Indication
(IO kHz)
Level (% of full scale)
200mV
- IO
%
IOOmV
- 20
%
20mV
- 30
%
lOmV
-40
%
2mV
- 50 %
lmV
- 60
%
.2mV
- 70
%
AMPLITUDE REFERENCE LEVEL TEST (Log Mode)
Amp Rev
Level
-IO dB
-20 dB
-30 dB
-40 dB
-50 dB
-60 dB
-70dB
Multimeter
Reading
v
v
v
v
v
v
v
Test Limits
-10 dB± 2 dB
-20 dB± 2 dB
- 30 dB± 2 dB
-40 dB± 2 dB
- 50 dB± 2 dB
-60dB±2dB
-70 dB± 2 dB
-80 dB± 2 dB
Test Limits
.90V± .02 V
.80V± .02 V
.70V± .02V
.60V ± .02 V
.50 v ± .02 v
.40V ± .02 V
.30 v ± .02 v
.20V ± .02 V
.IOV ± .02 V
Test Limits
90% ± 3%
(± .3 major divisions)
90% ± 3%
(± .3 major divisions)
90% ± 3%
( ± .3 major divisions)
90% ± 3%
(± .3 major divisions)
90% ± 3%
(± .3 major divisions)
90% ± 3%
(± .3 major divisions)
90% ±IO%
(± 1 major division)
Test Limits
2.00V ± .02 V
2.50V ± .02 V
3.00V ± .03 V
3.50 v ± .03 v
4.00V± .04V
4.50 v ± .04 v
5.00V ± .05 V
