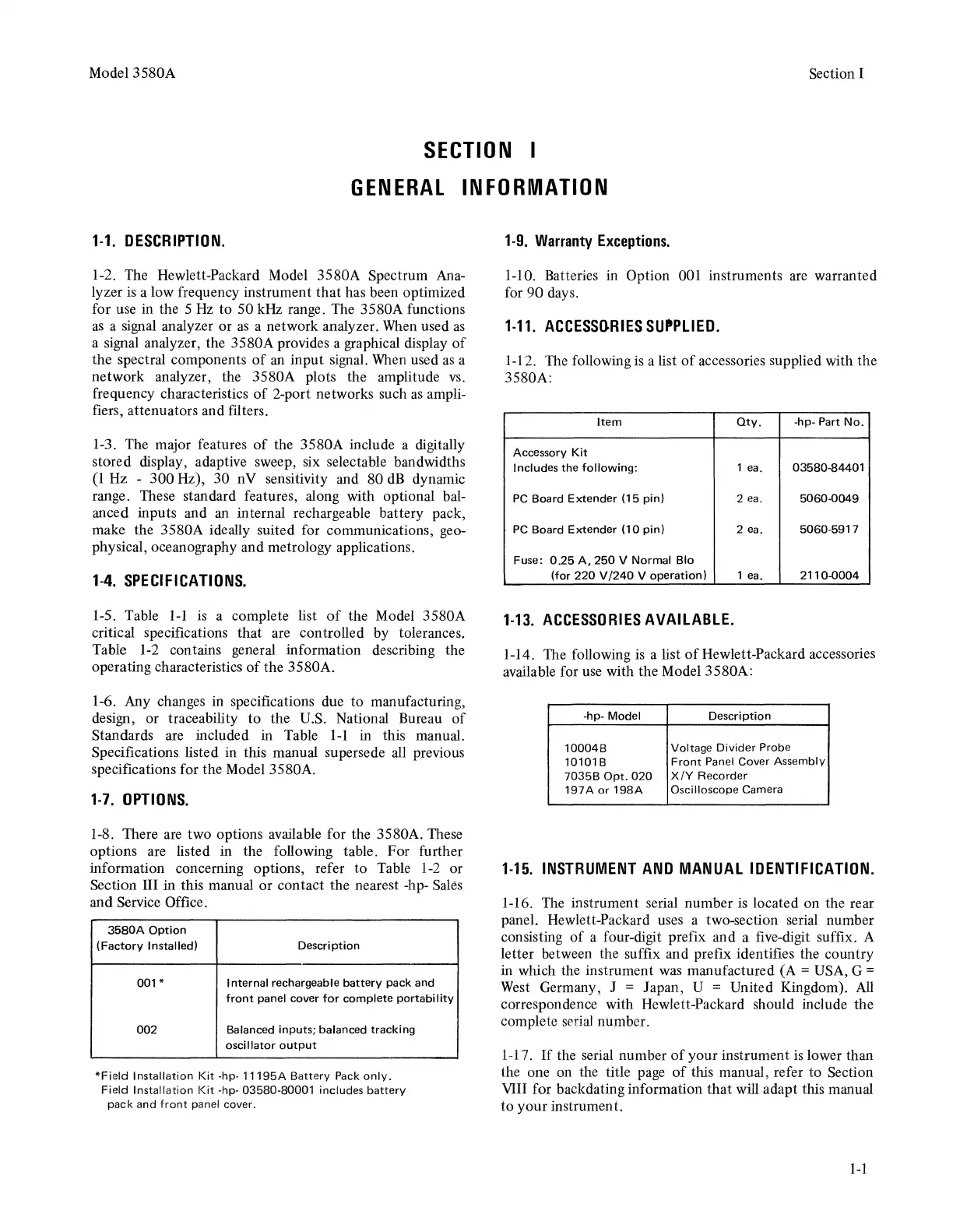

Model 3580A
Section I
SECTION
GENERAL
INFORMATION
1-1.
DESCRIPTION.
1-9.
Warranty
Exceptions.
1-2. The Hewlett-Packard Model 3580A Spectrum
Ana-
lyzer
is
a low frequency instrument that has been optimized
for
use
in the 5
Hz
to 50
kHz
range. The 3580A functions
as
a signal analyzer or
as
a network analyzer.
When
used
as
a signal analyzer, the 3580A provides a graphical display
of
the spectral components
of
an
input signal.
When
used
as
a
network analyzer, the 3580A plots the amplitude
vs.
frequency characteristics
of
2-port networks such
as
ampli-
fiers, attenuators and filters.
1-3. The major features
of
the 3580A include a digitally
stored display, adaptive sweep, six selectable bandwidths
(1
Hz - 300 Hz), 30 nV sensitivity and 80
dB
dynamic
range. These standard features, along with optional bal-
anced inputs and
an
internal rechargeable battery pack,
make the 3580A ideally suited for communications,
geo-
physical, oceanography and metrology applications.
1-4.
SPECIFICATIONS.
1-5. Table
1-1
is
a complete list
of
the Model 3580A
critical specifications that are controlled by tolerances.
Table
1-2
contains general information describing the
operating characteristics
of
the 3580A.
1-6. Any changes in specifications due to manufacturing,
design, or traceability to the U.S. National Bureau
of
Standards
are
included in Table
1-1
in this manual.
Specifications listed in this manual supersede
all
previous
specifications for the Model 3580A.
1-7.
OPTIONS.
1-8. There
are
two options available for the 3580A. These
options are listed in the following table. For further
information concerning options, refer to Table
1-2
or
Section
III
in this manual or contact the nearest -hp-
Sales
and Service Office.
3580A
Option
(Factory
Installed)
Description
001*
Internal
rechargeable
battery
pack
and
front
panel cover
for
complete
portability
002
Balanced
inputs;
balanced
tracking
oscillator
output
*Field
Installation
Kit
-hp-11195A
Battery
Pack
only.
Field
Installation
Kit
-hp- 03580-80001 includes
battery
pack
and
front
panel cover.
1-10. Batteries in Option
001
instruments
are
warranted
for 90 days.
1-11.
ACCESSQ.RIES
SUPPLIED.
1-12.
The
following
is
a list
of
accessories supplied with the
3580A:
Item
Qty.
-hp- Part
No.
Accessory
Kit
Includes
the
following:
1 ea. 03580-84401
PC
Board
Extender
(15
pin)
2
ea.
5060-0049
PC
Board
Extender
(10
pin)
2
ea.
5060-5917
Fuse:
0.25
A,
250
V
Normal
Bio
(for
220
V/240
V
operation)
1
ea.
2110-0004
1-13.
ACCESSORIES
AVAILABLE.
1-14.
The
following
is
a list
of
Hewlett-Packard accessories
available for
use
with the Model 3580A:
-hp-
Model
Description
10004B
Voltage
Divider
Probe
10101B
Front
Panel Cover Assembly
7035B
Opt.
020
X/Y
Recorder
197A
or
198A
Oscilloscope Camera
1-15.
INSTRUMENT
AND
MANUAL
IDENTIFICATION.
1-16.
The
instrument serial number
is
located on the rear
panel. Hewlett-Packard uses a two-section serial number
consisting
of
a four-digit prefix and a five-digit suffix. A
letter between the suffix and prefix identifies the country
in which the instrument
was
manufactured (A = USA, G =
West
Germany, J = Japan, U = United Kingdom). All
correspondence with Hewlett-Packard should include the
complete
serial
number.
1-1
7.
If
the serial number
of
your instrument
is
lower than
the one on the title
page
of
this manual, refer to Section
VIII for backdating information that will adapt this manual
to your instrument.
1-1
