HP 3580A Service Manual

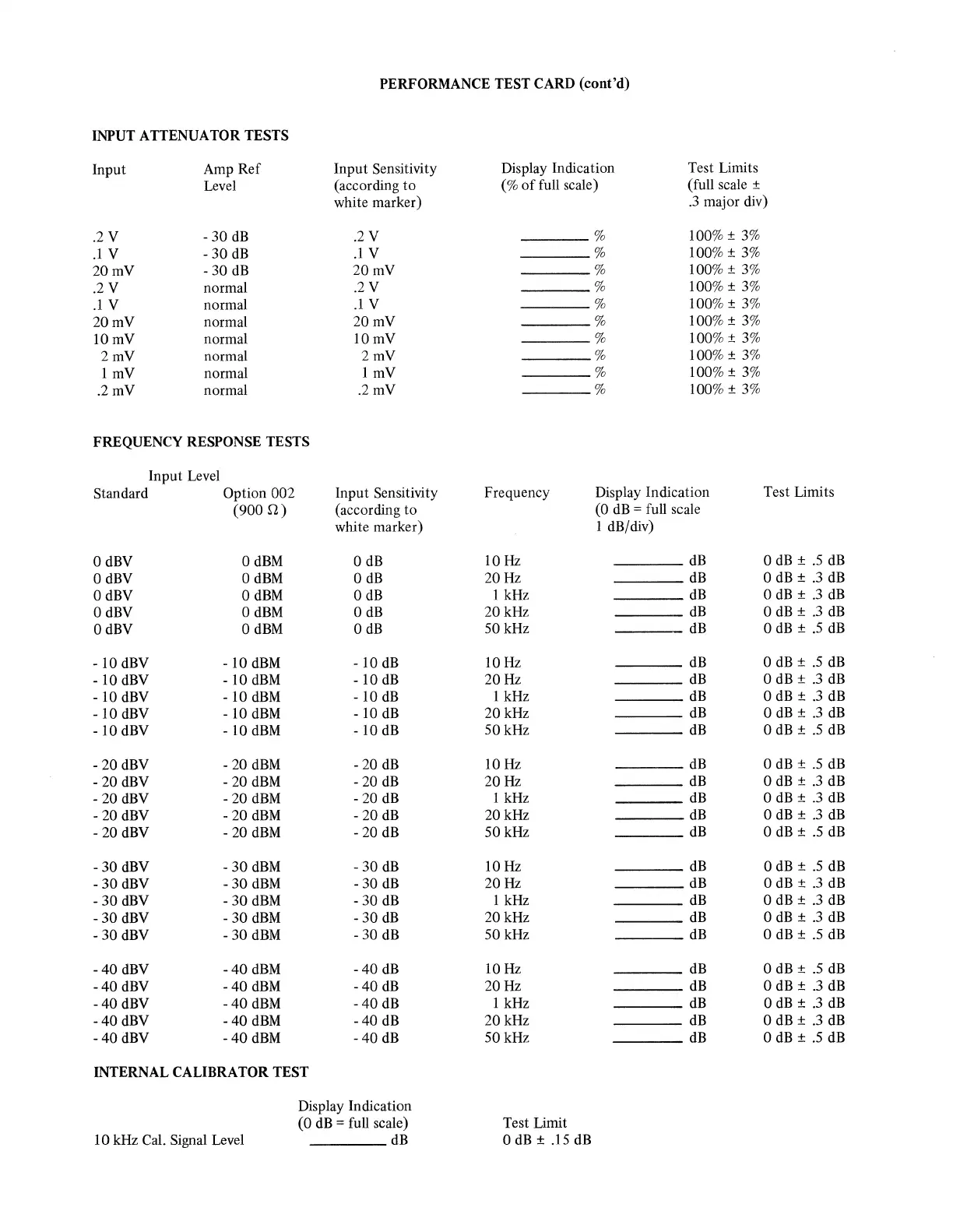

PERFORMANCE TEST CARD (cont'd)
INPUT ATTENUATOR TESTS
Input
Amp Ref
Input Sensitivity
Display Indication
Test Limits
Level
(according to
(%of full scale)
(full scale ±
white marker)
.3 major div)
.2V
-30 dB .2V %
100% ± 3%
.1 v
-30 dB .1 v
%
100% ± 3%
20mV
-30 dB
20mV %
100% ± 3%
.2V
normal
.2V
%
100% ± 3%
.1 v
normal
.1 v %
100% ± 3%
20mV
normal 20mV
%
100% ± 3%
lOmV
normal lOmV
%
100% ± 3%
2mV normal
2mV
%
100% ± 3%
1 mV normal
1 mV %
100%± 3%
.2mV
normal
.2mV %
100% ± 3%
FREQUENCY RESPONSE TESTS
Input Level
Standard
Option 002
Input Sensitivity
Frequency
Display Indication Test Limits
(900 Q) (according to
(0 dB = full scale
white marker) 1 dB/div)
OdBV OdBM
0 dB lOHz
dB 0 dB± .5 dB
OdBV
OdBM 0 dB
20Hz dB
0 dB± .3 dB
OdBV OdBM 0 dB
1 kHz
dB
0 dB± .3 dB
OdBV OdBM
OdB 20kHz
dB OdB±.3dB
OdBV OdBM
0 dB
SO kHz dB 0 dB± .5 dB
-10 dBV
-10 dBM -10 dB
lOHz dB
0 dB± .5 dB
-10 dBV -10 dBM
-10 dB 20Hz
dB
0 dB± .3 dB
-10 dBV -10 dBM
-10 dB 1 kHz
dB 0 dB± .3 dB
-10 dBV -10 dBM
-10 dB 20kHz
dB 0 dB± .3 dB
-10 dBV -10 dBM - 10 dB
SO kHz dB 0 dB± .5 dB
-20 dBV
-20 dBM -20 dB
lOHz dB 0 dB± .5 dB
-20 dBV -20 dBM
-20 dB 20Hz
dB 0 dB± .3 dB
- 20 dBV -20 dBM
-20 dB
1 kHz dB
0 dB± .3 dB
-20 dBV -20 dBM
-20 dB 20kHz
dB OdB±.3dB
-20 dBV
-20 dBM -20 dB 50kHz
dB 0 dB± .5 dB
-30 dBV
-30 dBM -30 dB
lOHz dB 0 dB± .5 dB
-30 dBV
-30 dBM -30 dB
20Hz dB 0 dB± .3 dB
-30 dBV -30 dBM
-30 dB 1 kHz
dB 0 dB± .3 dB
-30 dBV -30 dBM
-30 dB 20kHz
dB 0 dB± .3 dB
-30 dBV -30 dBM
-30 dB 50kHz dB
0 dB± .5 dB
-40 dBV -40 dBM
-40 dB lOHz dB 0 dB± .5 dB
-40 dBV -40 dBM -40 dB
20Hz dB 0 dB± .3 dB
-40 dBV -40 dBM -40 dB
1 kHz dB 0 dB± .3 dB
-40 dBV -40 dBM -40 dB
20kHz dB 0 dB± .3 dB
-40 dBV -40 dBM -40 dB
50kHz dB 0 dB± .5 dB
INTERNAL CALIBRATOR TEST
Display Indication
(O dB= full scale) Test Limit
10 kHz Cal. Signal Level
dB OdB±.lSdB
