HP 3580A Service Manual

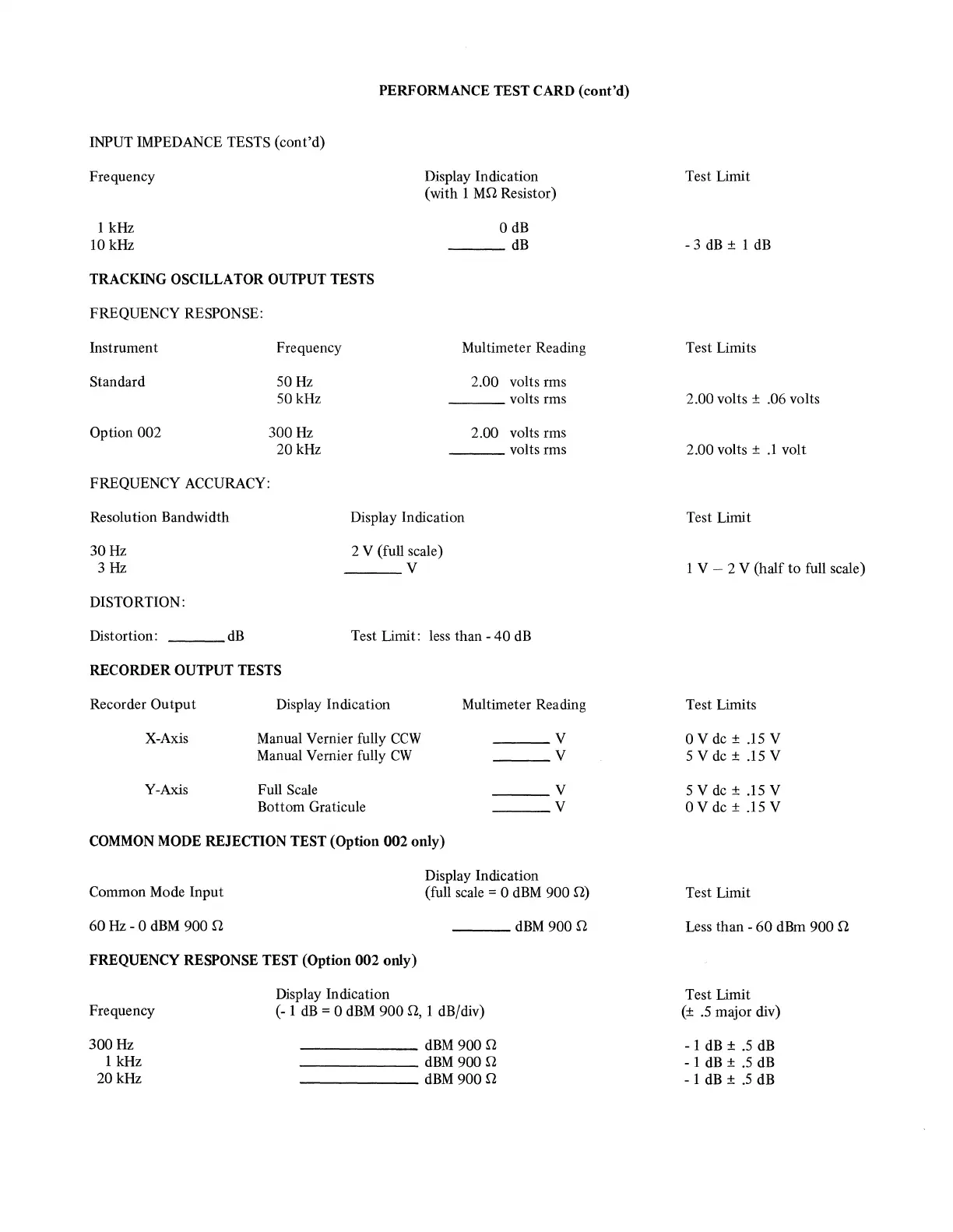

PERFORMANCE TEST CARD (cont'd)
INPUT IMPEDANCE TESTS (cont'd)
Frequency
1 kHz
lOkHz
TRACKING OSCILLATOR OUTPUT TESTS
Display Indication
(with 1 Mn Resistor)
0 dB
___ dB
FREQUENCY RESPONSE:
Instrument
Standard
Option 002
Frequency
50Hz
50kHz
300Hz
20kHz
Multimeter Reading
2.00 volts rms
___ volts rms
2.00 volts rms
___ volts rms
FREQUENCY ACCURACY:
Resolution Bandwidth
30Hz
3 Hz
DISTORTION:
Distortion:
___ dB
Display Indication
2 V (full scale)
___ v
Test Limit: less than - 40 dB
RECORDER OUTPUT TESTS
Recorder Output
X-Axis
Y-Axis
Display Indication
Manual Vernier fully CCW
Manual Vernier fully CW
Full Scale
Bottom Graticule
Multimeter Reading
___ v
___ v
___ v
___ v
COMMON MODE REJECTION TEST {Option 002 only)
Display Indication
Common Mode Input
(full scale = o dBM 900 n)
60 Hz - 0 dBM 900 n
___ dBM900fl
FREQUENCY RESPONSE TEST {Option 002 only)
Frequency
300Hz
1 kHz
20kHz
Display Indication
(- 1 dB= 0 dBM 900 n, 1 dB/div)
------ dBM 900 n
------ dBM 900 n
------ dBM 900 n
Test Limit
-3dB±ldB
Test Limits
2.00 volts± .06 volts
2.00 volts ± .1 volt
Test Limit
1 V - 2 V (half to full scale)
Test Limits
0 V de± .15 V
5 V de± .15 V
5 V de± .15 V
0 V de± .15 V
Test Limit
Less than - 60 dBm 900 n
Test Limit
(± .5 major div)
-1 dB± .5 dB
-1 dB± .5 dB
-1 dB± .5 dB
