HP 9020 - Page 183

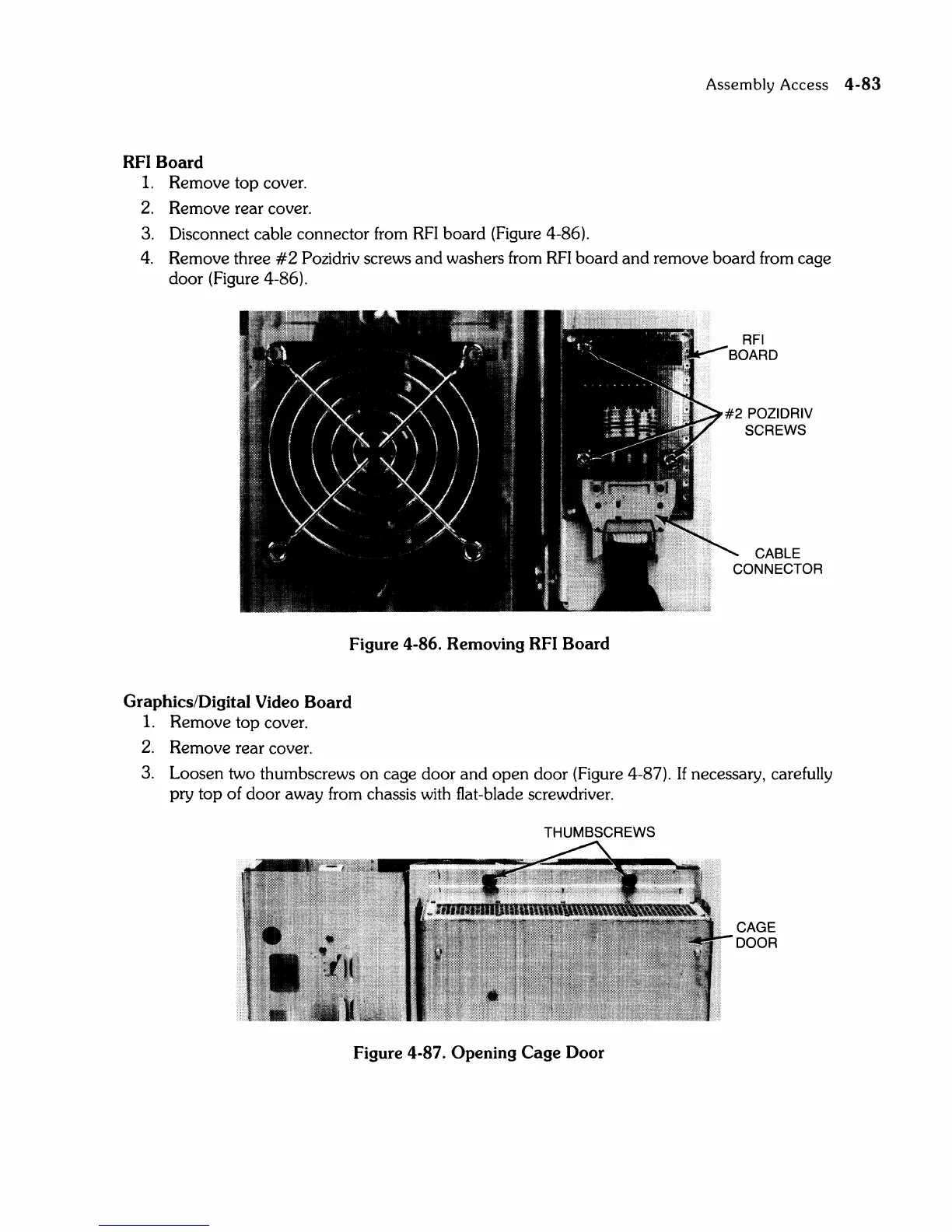

Assembly Access 4-83
RFI Board
1. Remove top cover.
2. Remove rear cover.
3. Disconnect cable connector from RFI board (Figure 4-86).
4. Remove three #2 Pozidriv screws and washers from RFI board and remove board from cage
door (Figure 4-86).
Figure 4-86. Removing RFI Board
Graphics/Digital Video
Board
1. Remove top cover.
2. Remove rear cover.
#2 POZIDRIV
SCREWS
CABLE
CONNECTOR
3. Loosen two thurnbscrews on cage door and open door (Figure 4-87). If necessary, carefully
pry top of door away from chassis with
flat -blade screwdriver.
THUMBSCREWS
Figure 4-87. Opening Cage Door
CAGE
DOOR
