Assembly Access 4-89
BOTTOM OF
CRT
CABLE
MUST
CROSS AS SHOWN

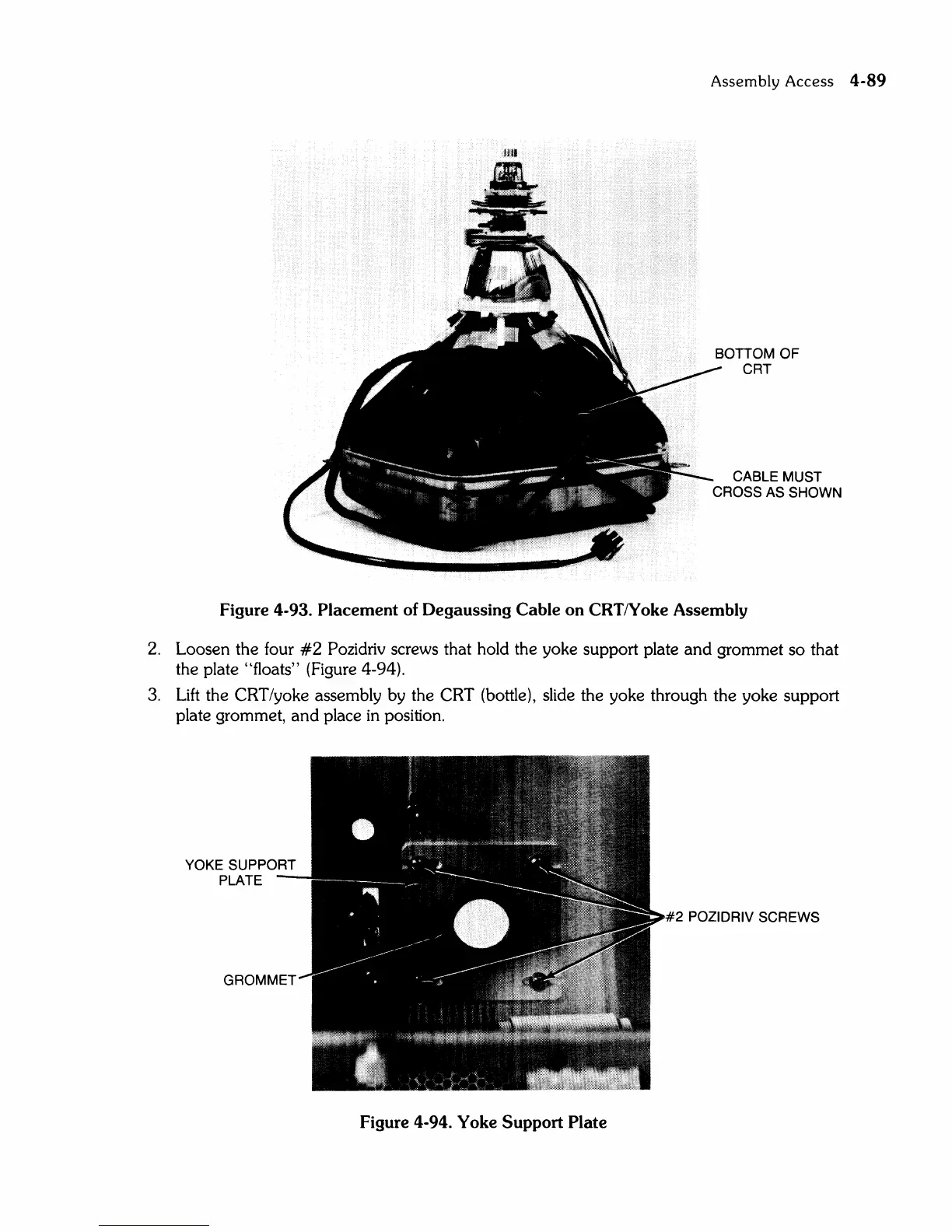

Figure 4-93. Placement of Degaussing Cable on CRT N oke Assembly
2. Loosen the four #2 Pozidriv screws that hold the yoke support plate and grommet so that
the plate "floats" (Figure 4-94).
3. Lift the CRT/yoke assembly by the CRT (bottle), slide the yoke through the yoke support
plate grommet,
and place in position.
POZIDRIV SCREWS
GROMMET
Figure 4-94. Yoke Support Plate
