Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 177
6 – Power Supply Component Replacement
6. Lay the power supply on its side, with the fan side facing up.
7. Place the end of a stiff wire or other similar item with a 0.23 cm (0.092 inch) diameter in each of the 6 holes on
the power board side of the base. Press each one in until the clips release and you can pull the base and the
attached magnetics away from the center panel.
8. Remove the 6 screws that hold the magnetics’ metal mounting plate in place. Remove the plate and the
magnetics.

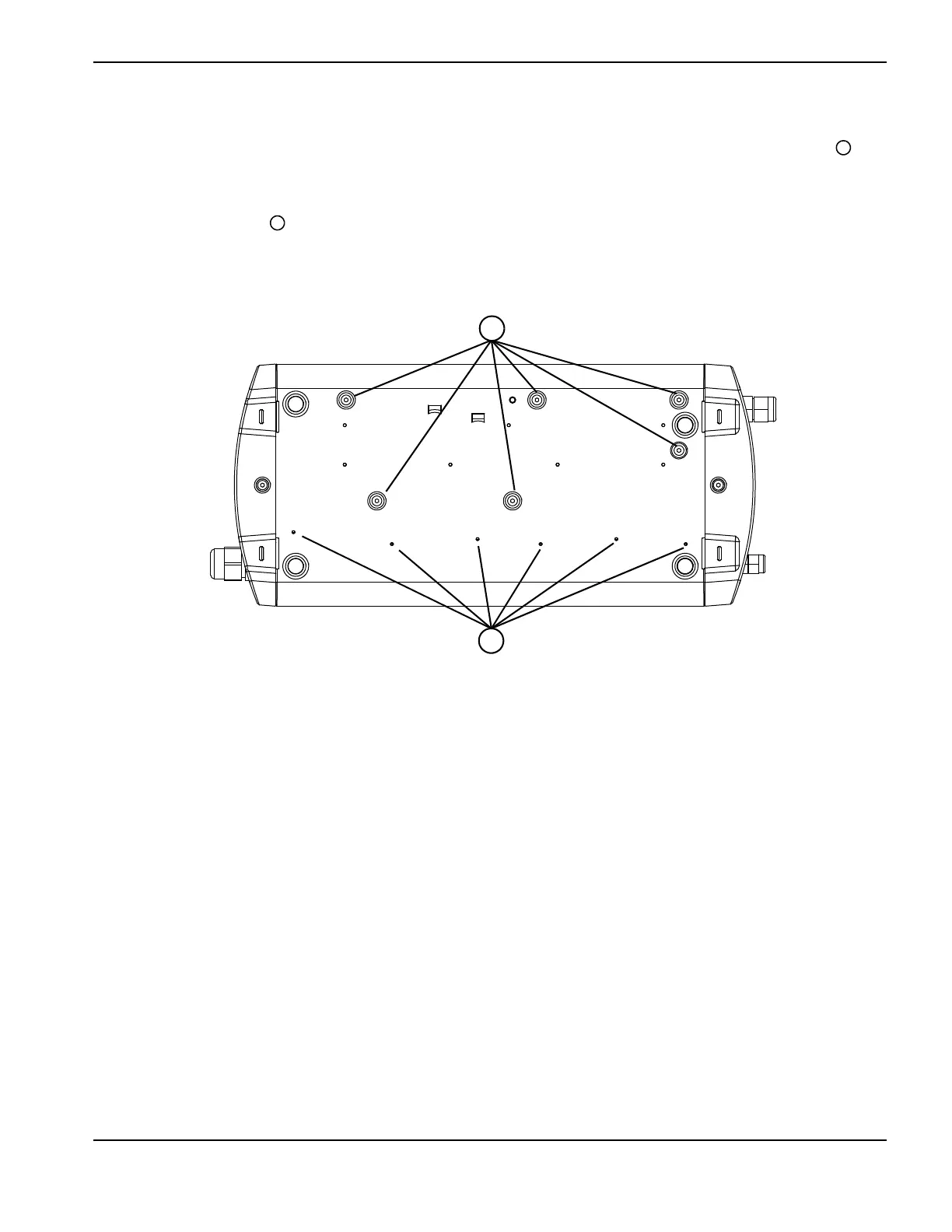

Figure 88
4
5
4
5

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
